PRODUCT DESCRIPTION
Features
Real Capacity

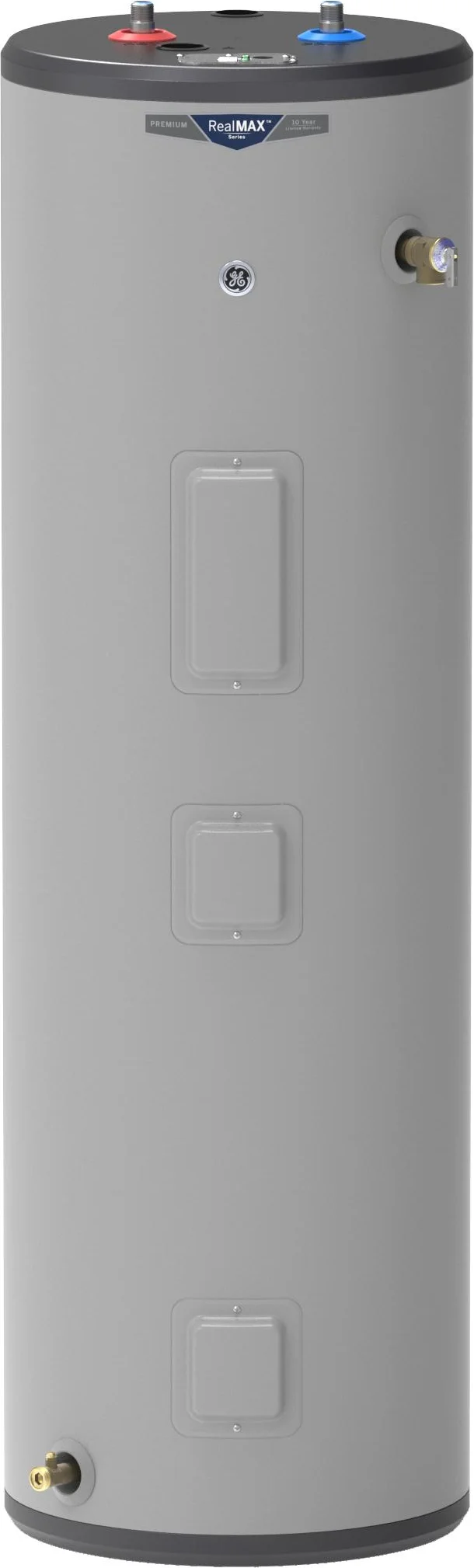

Get the most hot showers from the only water heater that holds a true 40 gallons of water (Compared to 40 gallon electric steel tank water heaters per DOE rated gallon capacity)
Stainless Steel Heating Elements
Ultra-durable stainless-steel heating elements resist rust and corrosion
Brass Drain Valve
Rust-proof construction can be counted on to provide long-lasting service
Adjustable Thermostat
Change temperature to your desired setting
Inlet Tube
Replenishes water from the bottom of the tank to maximize hot water delivery
Household Size
Provide hot water for the whole family of 2 to 4 persons
Quick Recovery
Two 5500W heating elements quickly increase water temperature for hot water when you need it
Leading Performance
Live comfortably with this best in class unit that delivers 65 gallons of hot water in the first hour (Measured through DOE First Hour Rating)
Easy Set Up
Replace your old water heater quickly and easily using standard water and electrical connections
Specifications
Unit Capacity
40 Gallons
Color Appearance
Gray
Integrated Energy Factor
0.92
Heating - Electric - Heater Watts
5500/5500
Electrical Connection
Direct-Wire
Operating Water Pressure
20-125 PSI
Volts/Hertz
240V; 60Hz
First Hour Rate (FHR)
65 Gallons
Voltage (MAX)
240 V
Electrical Circuit Required
208V/240V 60 Hz Dedicated 30 Amp Min.
Warranty Notes
See written warranty for full details
Parts Warranty
10-year limited
Labor Warranty
1-year limited
Product Height (to top of water inlet/outlet connections)
65.5 in
Approximate Shipping Weight
139 lb
Overall Width
20 in
Overall Height
65.5 in
Product Height (to top of unit)
64 in
Net Weight
127 lb
Product Diameter
20 in
Overall Depth
20 in
Connection Sizes - Water Inlet (MNPT)
3/4"
Connection Sizes - Hot Water Outlet (MNPT)
3/4"
Control Type
Thermostat
Temp & Pressure Relief Valve
Yes
Height Description
Tall
Heating Element
Stainless steel
Fuel Type
Electric
Configuration
Tall
Installation Location
Indoor
Operating Modes
Standard Electric
Rated Storage Capacity
40
Drain Valve Type
Brass
GPH Recovery @ 90 Degrees F
25.1
Mobile Home Compatible
No
Temperature Setting Factory Default
120(degree) F
Product Type
Electric Thermostat
Family Size
2-4 People
Water Connection Location
Top
Foam Insulation
Yes
Point of Use
No
Temperature Setting
90-150(degree) F Range
Insulation Thickness
2.75 in
GTIN
00084691846079
EAN
0084691846079
UPC
084691846079
