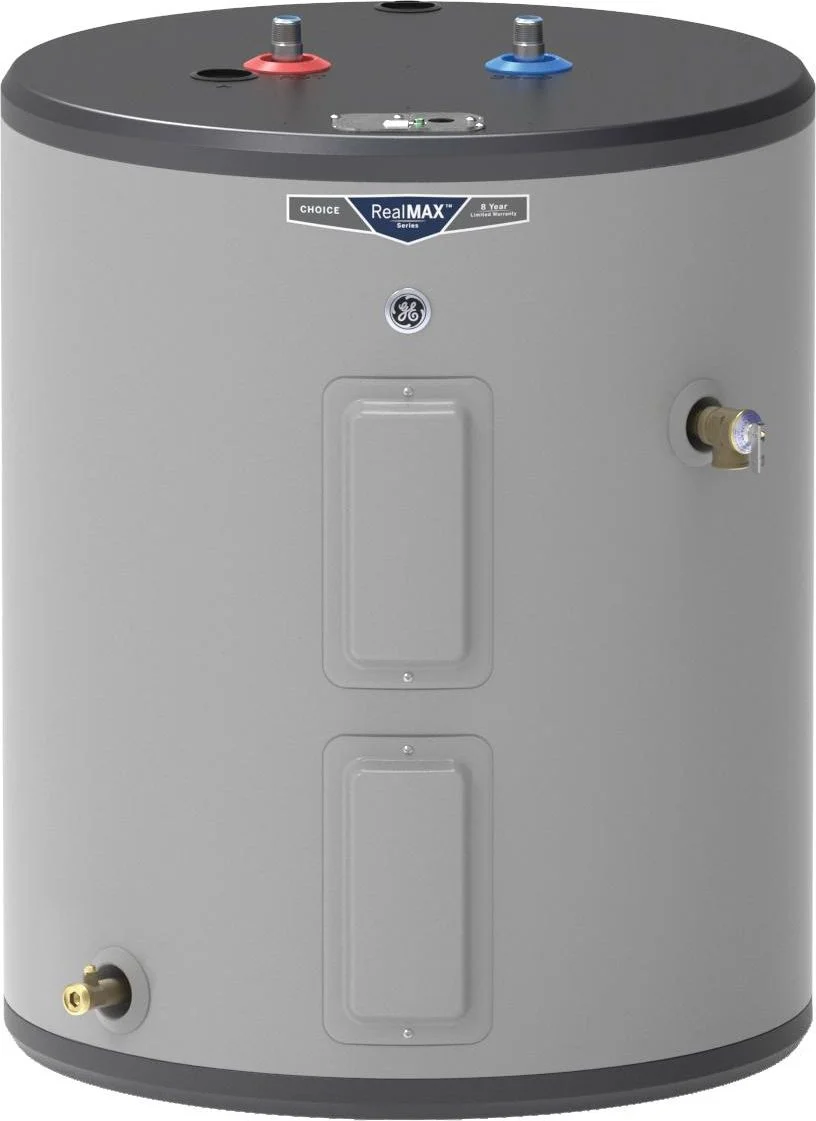

GE 36 Gallon Top Port Lowboy 4500W Electric Water Heater in Gray

Name: GE GE40L08DAT 36 Gallon Top Port Lowboy 4500W Electric Water Heater
Brand: GE
SKU: GE40L08DAT
Price: 503.00 USD
Availability: InStock

SKU: GE40L08DAT

0 Questions & 0 Answers

Width: 27.00"
Height: 32.75"
Weight: 135.00 lbs
Fuel Type: Electric

GE |Authorized Dealer

Special Order

$503.00

$559.00 Save$56.00

$12.58

)

color: Gray

Estimates for:

Protect Your Item

2 Year $75.99

3 Year $115.99

4 Year $143.99

5 Year $163.99

Decline

30-Days Free Returns or Exchanges

PRODUCT DESCRIPTION

Lowboy
Make the most of tight spaces with a water heater that fits where height is a concern
Household Size
Provide hot water for the whole family of 2 to 4 persons
4500W Heating Elements
Two 4500W heating elements require 25 Amp to operate will increase water temperature for hot water when you need it
Inlet Tube
Replenishes water from the bottom of the tank to maximize hot water delivery
Easy Set Up
Replace your old water heater quickly and easily using standard water and electrical connections
Anode Rod
Durable design offers long-lasting protection against corrosion
Brass Drain Valve
Rust-proof construction can be counted on to provide long-lasting service
Adjustable Thermostat
Change temperature to your desired setting

capacity

1 item

Unit Capacity

40 Gallons

appearance

1 item

Color Appearance

Gray

power / ratings

9 items

Integrated Energy Factor

0.92

Heating - Electric - Heater Watts

4500/4500

Electrical Connection

Direct-Wire

Operating Water Pressure

20-125 PSI

Volts/Hertz

240V; 60Hz

First Hour Rate (FHR)

56 Gallons

Voltage (MAX)

240 V

Energy Consumption (kWh/year)

3531

Electrical Circuit Required

208V/240V 60 Hz Dedicated 30 Amp Min.

warranty

3 items

Warranty Notes

See written warranty for full details

Parts Warranty

Limited 8-year tank and parts

Labor Warranty

Limited 1-year entire appliance

weights & dimensions

10 items

Product Height (to top of water inlet/outlet connections)

34.25 in

Approximate Shipping Weight

145 lb

Overall Width

27 in

Overall Height

32.75 in

Product Height (to top of unit)

32.75 in

Net Weight

135 lb

Product Diameter

27 in

Overall Depth

27 in

Connection Sizes - Water Inlet (MNPT)

3/4"

Connection Sizes - Hot Water Outlet (MNPT)

3/4"

features

19 items

Control Type

Thermostat

Temp & Pressure Relief Valve

Yes

Rated Capacity

36 gal

Height Description

Low Boy with Top Port

Fuel Type

Electric

Configuration

Lowboy

Installation Location

Indoor

Operating Modes

Standard Electric

Rated Storage Capacity

Drain Valve Type

Brass

GPH Recovery @ 90 Degrees F

25.1

Mobile Home Compatible

Product Type

Electric 4500W

Family Size

2-4 People

Water Connection Location

Top

Foam Insulation

Yes

Point of Use

Temperature Setting

90-150(degree) F Range
Factory Default 120(degree) F

Insulation Thickness

2.75 in

GS1

3 items

GTIN

00084691922858

EAN

0084691922858

UPC

084691922858

Documents

Warranty

PDF

Quick Specs

PDF

Energy Guide

PDF

Use and Care Manual

PDF

Quick Reference Guide

PDF
