PRODUCT DESCRIPTION
Specifications
Unit Capacity
40 Gallons
Color Appearance
Gray
Integrated Energy Factor
0.92
Heating - Electric - Heater Watts
5500/5500
Electrical Connection
Direct-Wire
Operating Water Pressure
20-125 PSI
Volts/Hertz
240V; 60Hz
First Hour Rate (FHR)
63 Gallons
Voltage (MAX)
240 V
Electrical Circuit Required
208V/240V 60 Hz Dedicated 30 Amp Min.
Energy Consumption (kWh/year)
3531
Warranty Notes
See written warranty for full details
Parts Warranty
Limited 8-year tank and parts
Labor Warranty
Limited 1-year entire appliance
Product Height (to top of water inlet/outlet connections)
26 in
Approximate Shipping Weight
145 lb
Overall Width
27 in
Overall Height
32.75 in
Product Height (to top of unit)
32.75 in
Net Weight
135 lb
Product Diameter
27 in
Overall Depth
27 in
Connection Sizes - Water Inlet (MNPT)
3/4"
Connection Sizes - Hot Water Outlet (MNPT)
3/4"
Control Type
Thermostat
Temp & Pressure Relief Valve
Yes
Rated Capacity
36 gal
Height Description
Low Boy with Side Port
Fuel Type
Electric
Configuration
Lowboy
Installation Location
Indoor
Operating Modes
Standard Electric
Rated Storage Capacity
36
Drain Valve Type
Plastic
GPH Recovery @ 90 Degrees F
25.1
Mobile Home Compatible
No
Temperature Setting Factory Default
120(degree) F
Product Type
Electric Thermostat
Family Size
2-4 People
Water Connection Location
Side
Foam Insulation
Yes
Point of Use
No
Temperature Setting
90-150(degree) F Range
Insulation Thickness
2.75 in

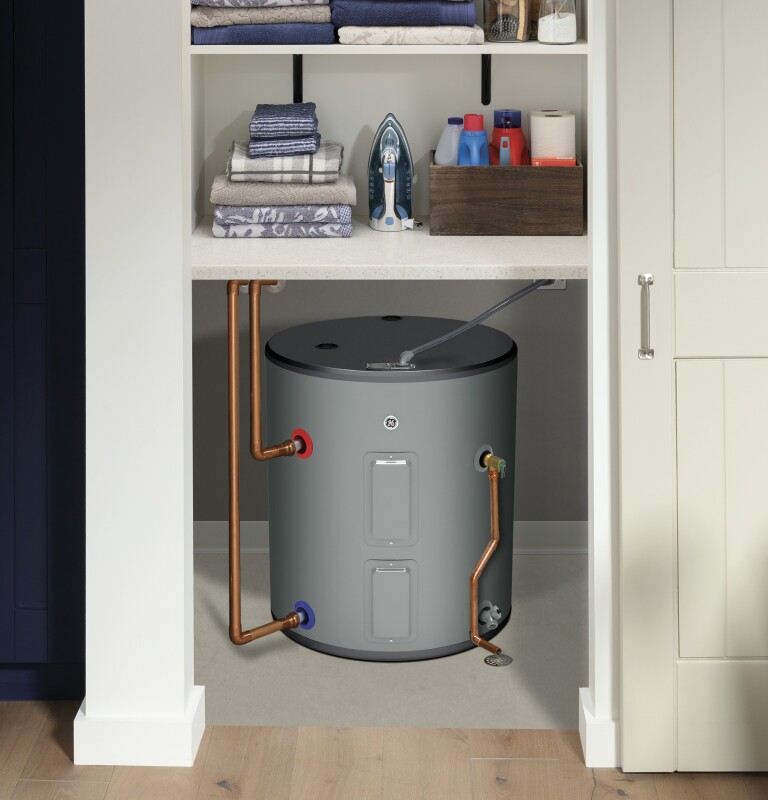

Lowboy
Household Size

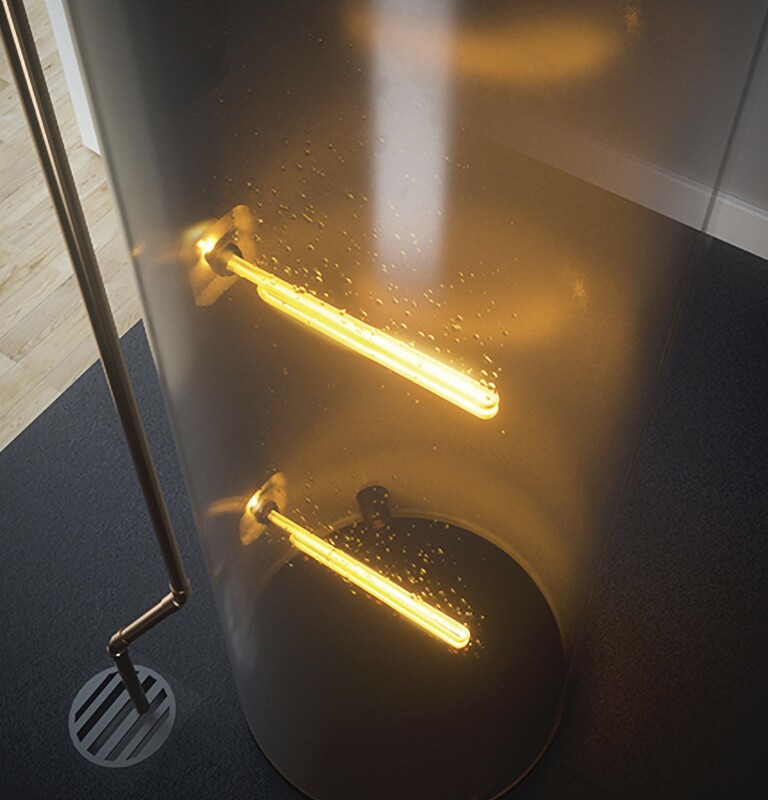

Quick Recovery

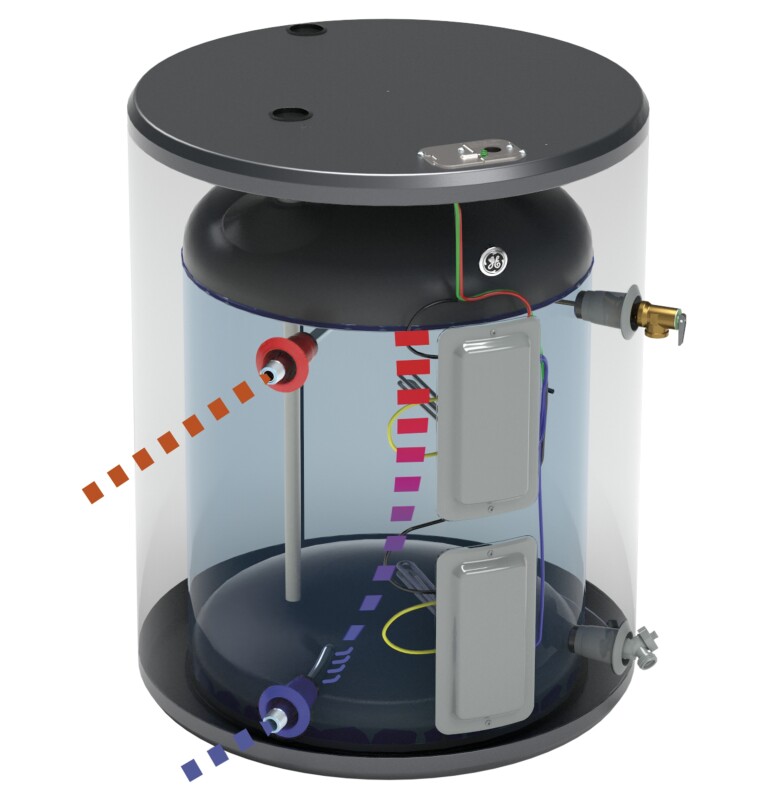

Inlet Tube

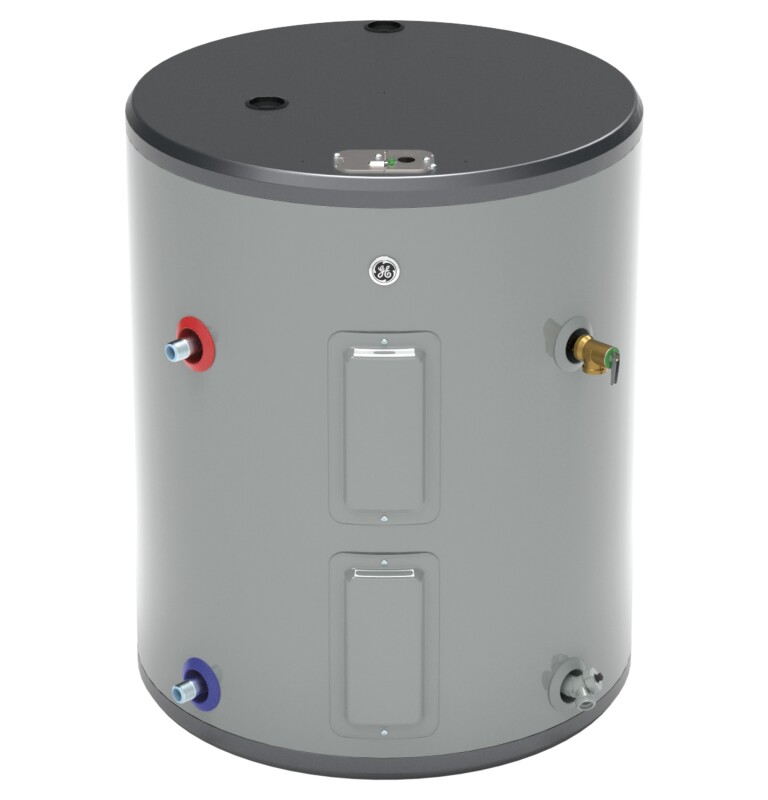

Easy Set Up

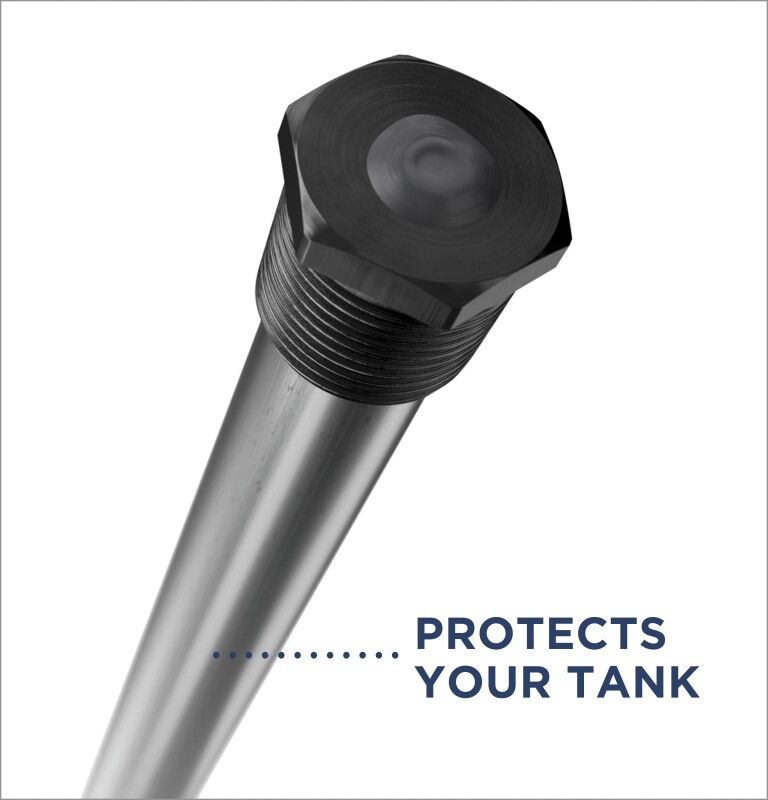

Anode Rod

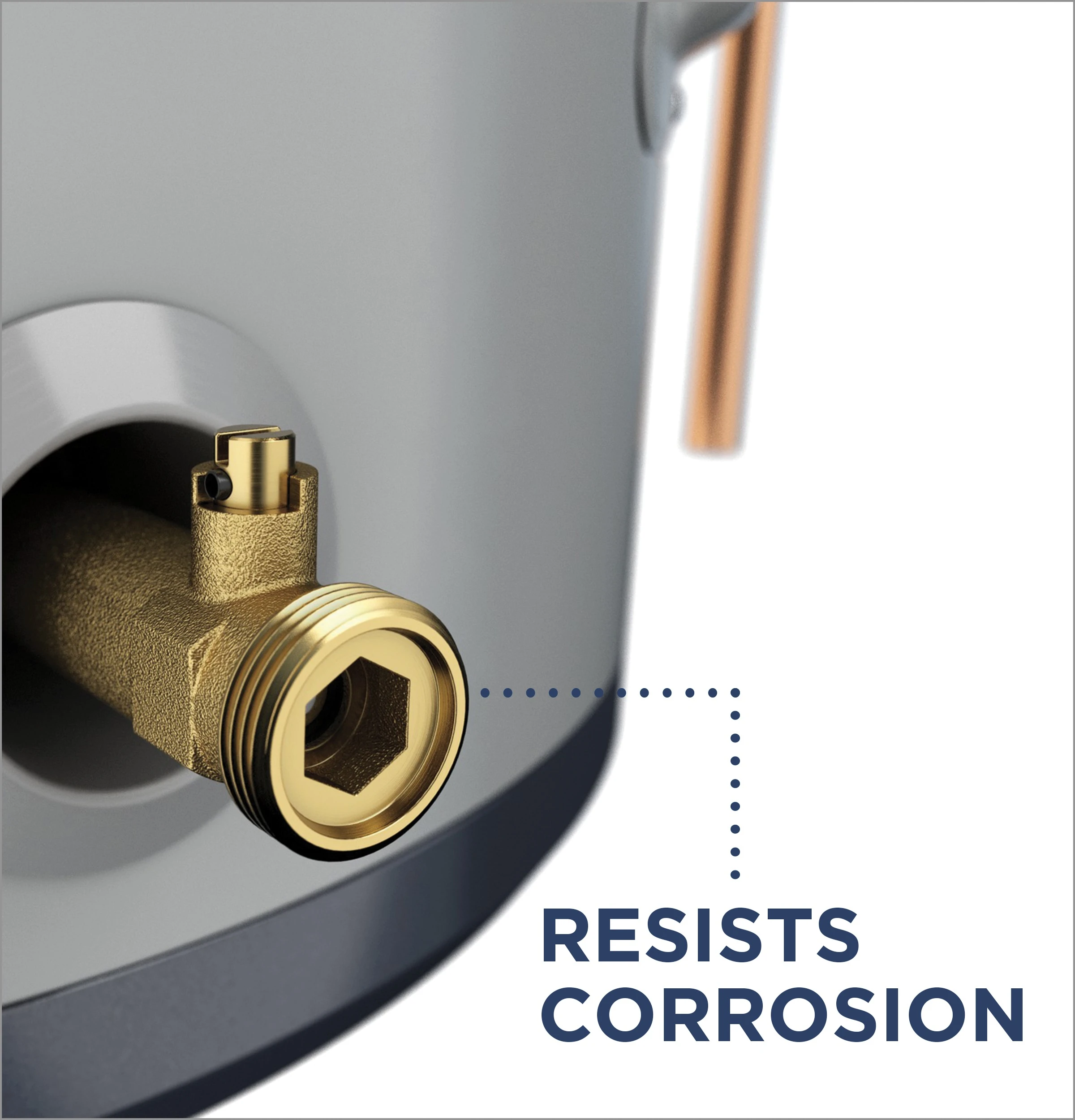

Drain Valve

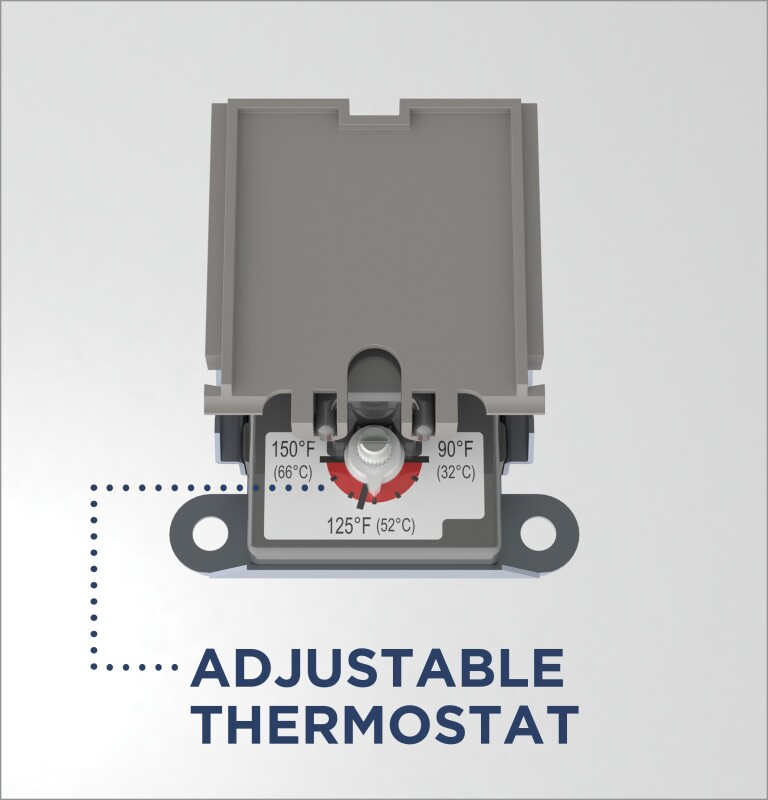

Adjustable Thermostat
GTIN
00084691845997
EAN
0084691845997
UPC
084691845997
