PRODUCT DESCRIPTION
Features

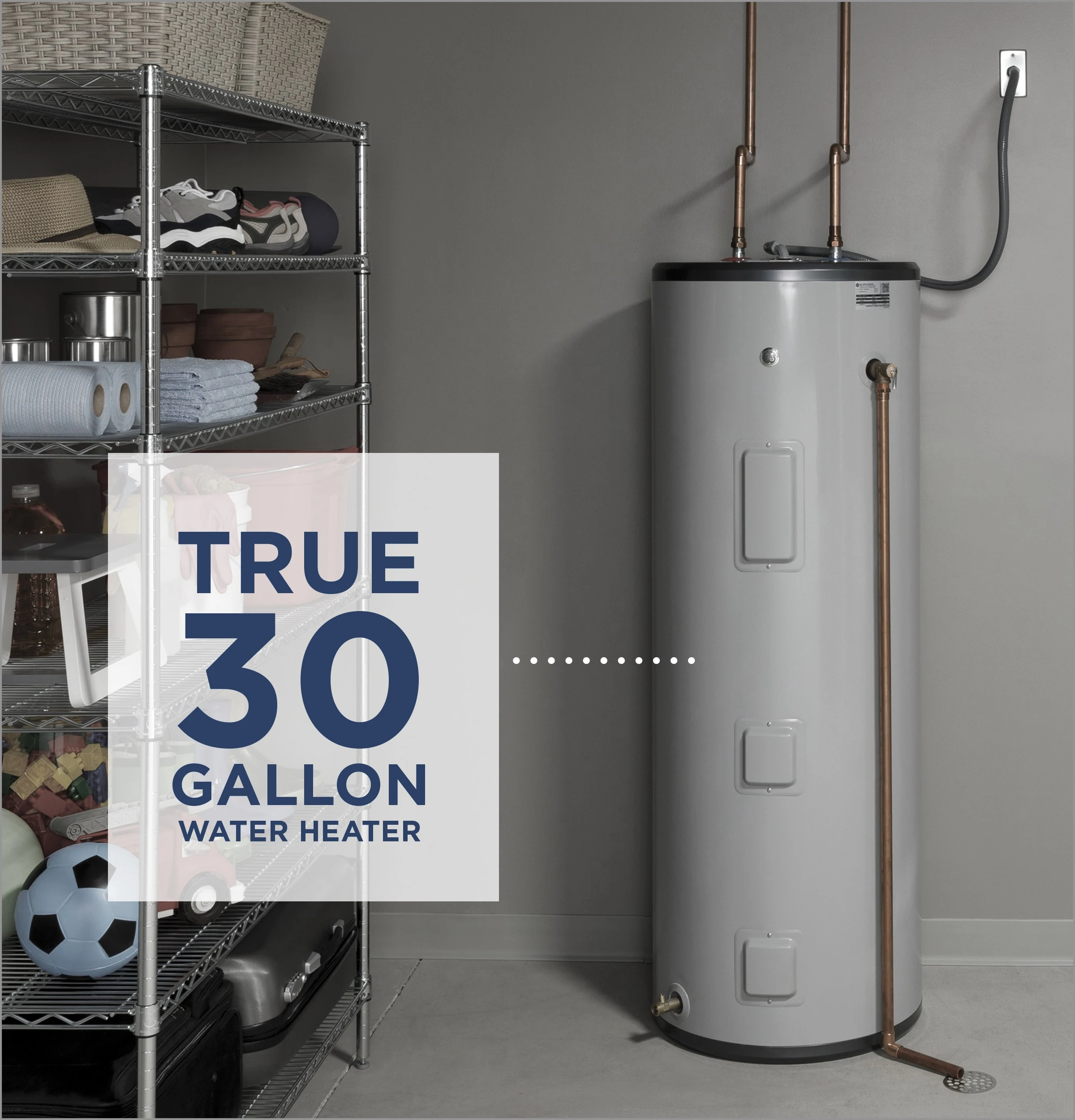

Real Capacity
Get the most hot showers from the only water heater that holds a true 30 gallons of water (Compared to 30 gallon electric steel tank water heaters per DOE rated gallon capacity)
Leading Performance
Live comfortably with this best in class unit that delivers 53 gallons of hot water in the first hour (Measured through DOE First Hour Rating)
Household Size
Provide hot water for the whole family of 1 to 3 persons

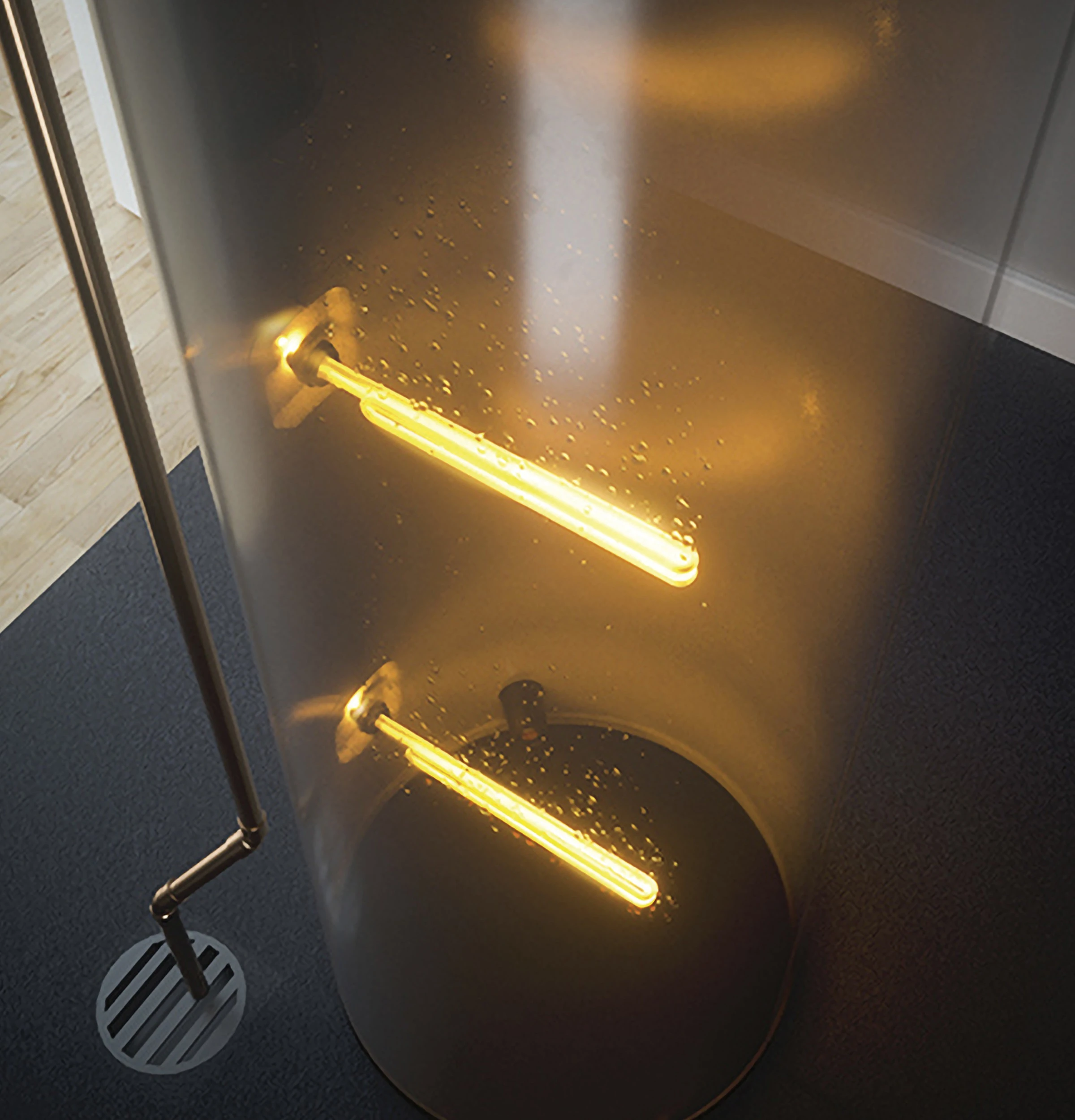

Quick Recovery
Two 5500W heating elements quickly increase water temperature for hot water when you need it

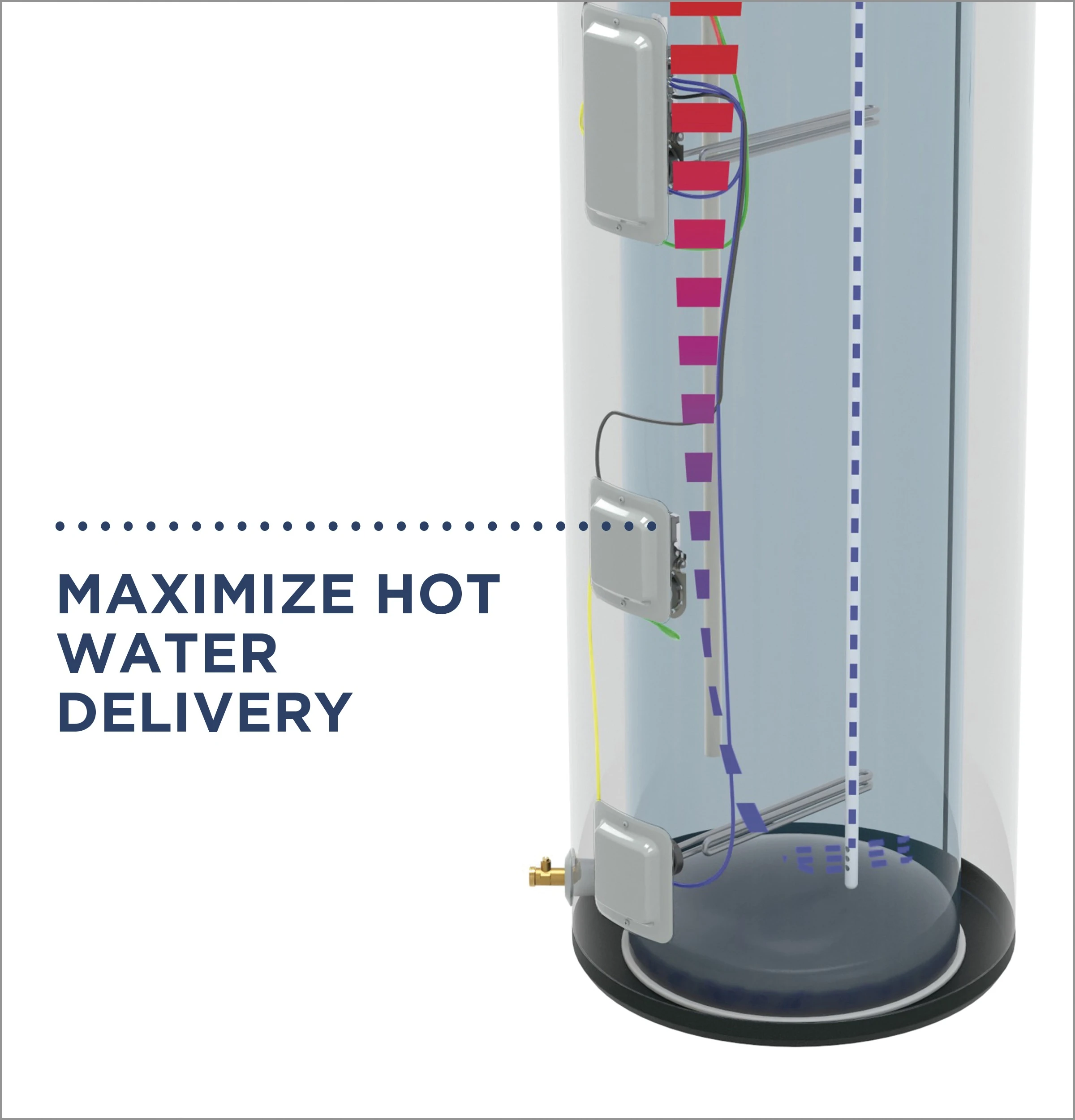

Inlet Tube
Replenishes water from the bottom of the tank to maximize hot water delivery

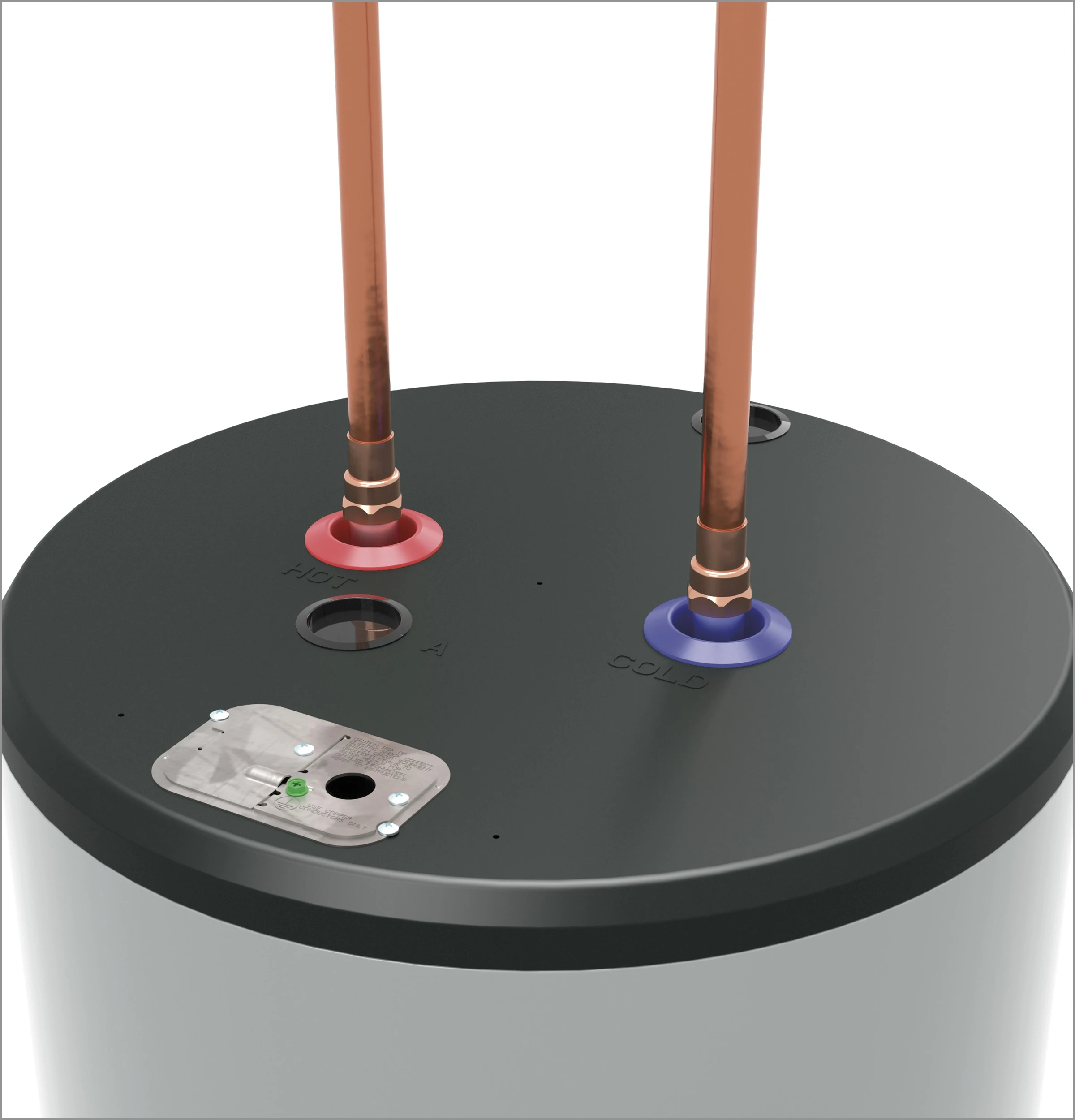

Easy Set Up
Replace your old water heater quickly and easily using standard water and electrical connections

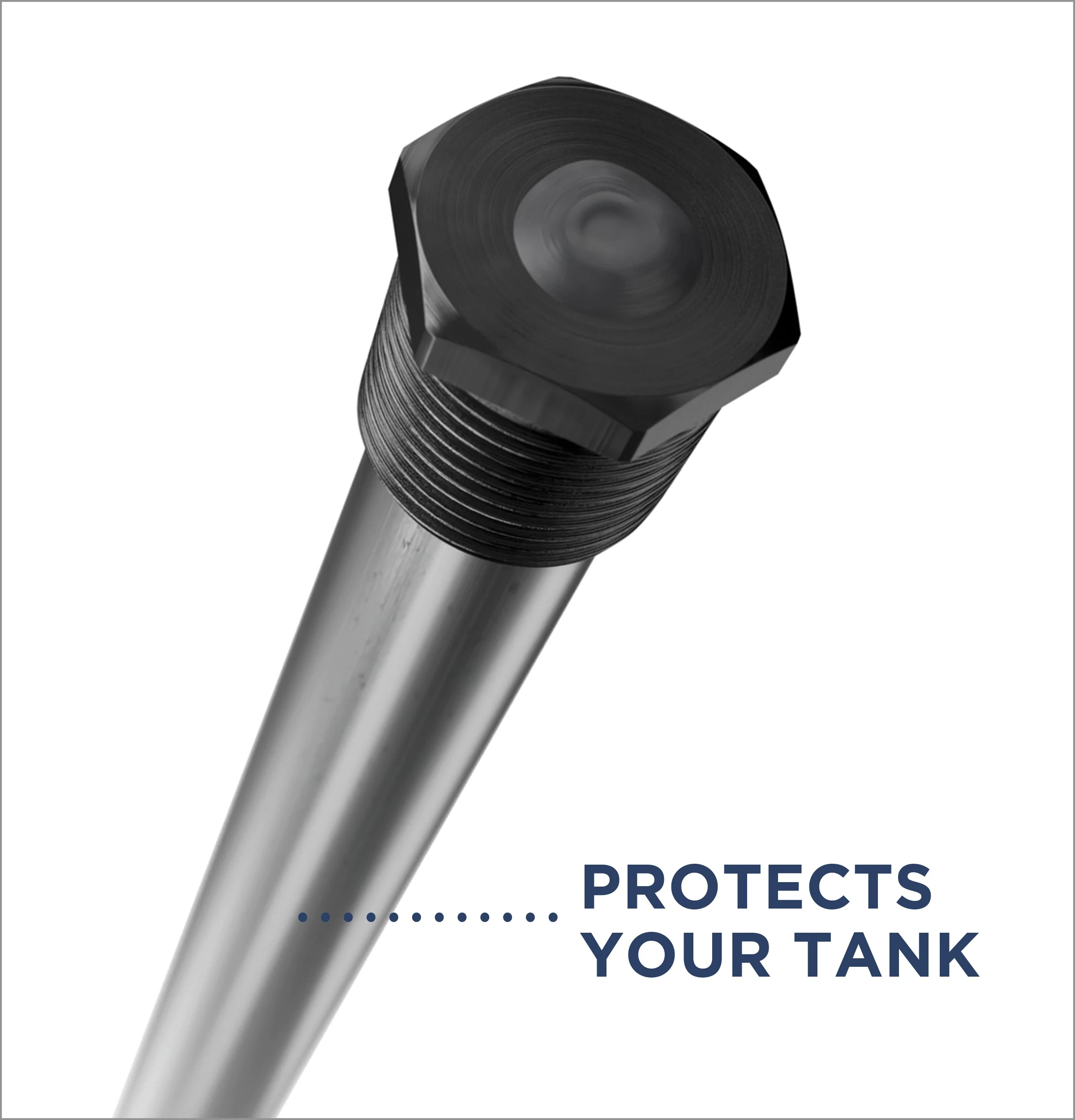

Anode Rod
Durable design offers long-lasting protection against corrosion

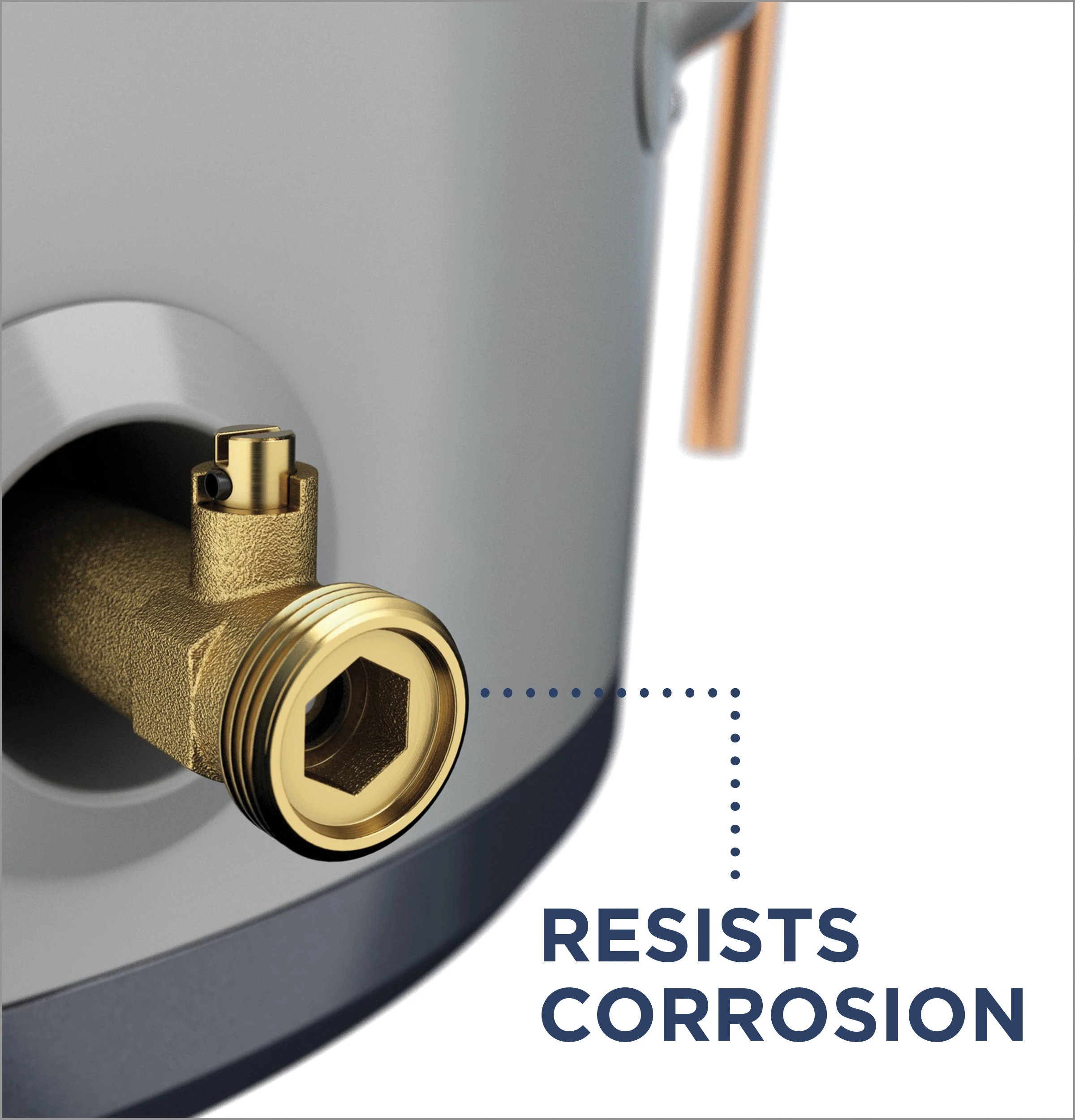

Brass Drain Valve
Rust-proof construction can be counted on to provide long-lasting service

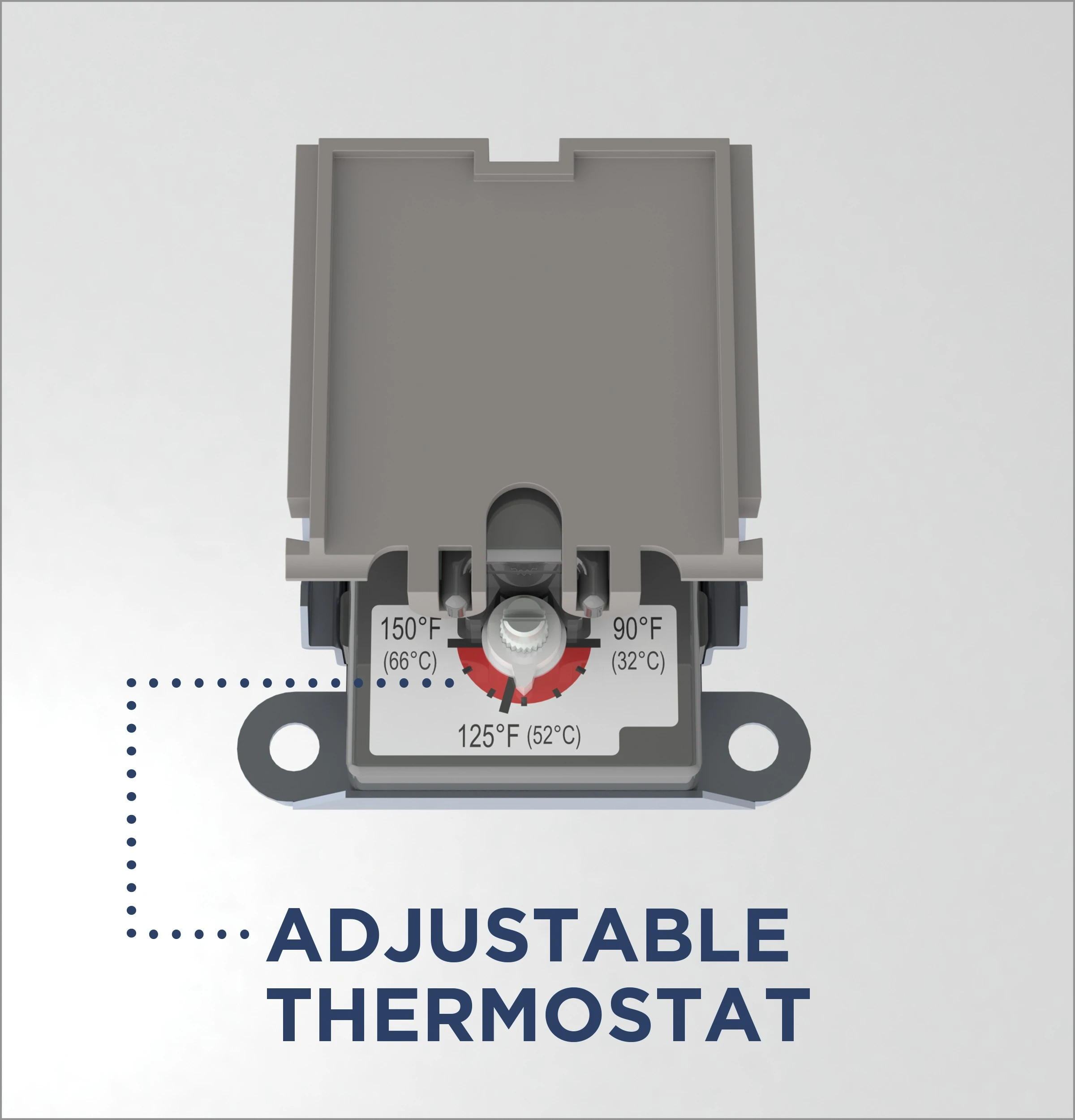

Adjustable Thermostat
Change temperature to your desired setting
Specifications
Overall Width
22 in
Overall Height
41.875 in
Product Height (to top of unit)
40.375 in
Overall Depth
22 in
Product Height (to top of water inlet/outlet connections)
41.875 in
Approximate Shipping Weight
111 lb
Net Weight
101 lb
Product Diameter
22 in
Connection Sizes - Water Inlet (MNPT)
3/4"
Connection Sizes - Hot Water Outlet (MNPT)
3/4"
Control Type
Thermostat
Temp & Pressure Relief Valve
Yes
Height Description
Short
Heating Element
Copper
Fuel Type
Electric
Configuration
Short
Installation Location
Indoor
Operating Modes
Standard Electric
Rated Storage Capacity
30
Drain Valve Type
Plastic
GPH Recovery @ 90 Degrees F
25.1
Mobile Home Compatible
No
Temperature Setting Factory Default
120° F
Product Type
Electric Thermostat
Family Size
1-3 People
Water Connection Location
Top
Foam Insulation
Yes
Point of Use
No
Temperature Setting
90-150° F Range
Insulation Thickness
2.75 in
Integrated Energy Factor
0.92
Heating - Electric - Heater Watts
5500/5500
Electrical Connection
Direct-Wire
Operating Water Pressure
20-125 PSI
Volts/Hertz
240V; 60Hz
First Hour Rate (FHR)
53 Gallons
Voltage (MAX)
240 V
Electrical Circuit Required
208V/240V 60 Hz Dedicated 30 Amp Min.
Energy Consumption (kWh/year)
3531
Warranty Notes
See written warranty for full details
Parts Warranty
Limited 8-year tank and parts
Labor Warranty
Limited 1-year entire appliance
Unit Capacity
30 Gallons
Color Appearance
Gray
Product Diameter
22 in
Connection Sizes - Water Inlet (MNPT)
3/4"
Width
22 in.
Height
41.88 in.
Length
22 in.
Weight
101 lbs.
Number of Boxes
1
Shipping Width
27 in.
Shipping Height
46.88 in.
Shipping Length
27 in.
Shipping Weight
141 lbs.
Total of Shipping Weight
141 lbs.
Source
Calculation
Cubic Feet Measurement
11.73 ft³
Dimensional Weight
145.81 lbs.
Total of Cubes
11.73 ft³
Total of Dimensional Weight
145.81 lbs.
Real Capacity
Leading Performance
Household Size
Quick Recovery
Inlet Tube
Easy Set Up
Anode Rod
Brass Drain Valve
Adjustable Thermostat
UPC
084691845980
