PRODUCT DESCRIPTION
Features

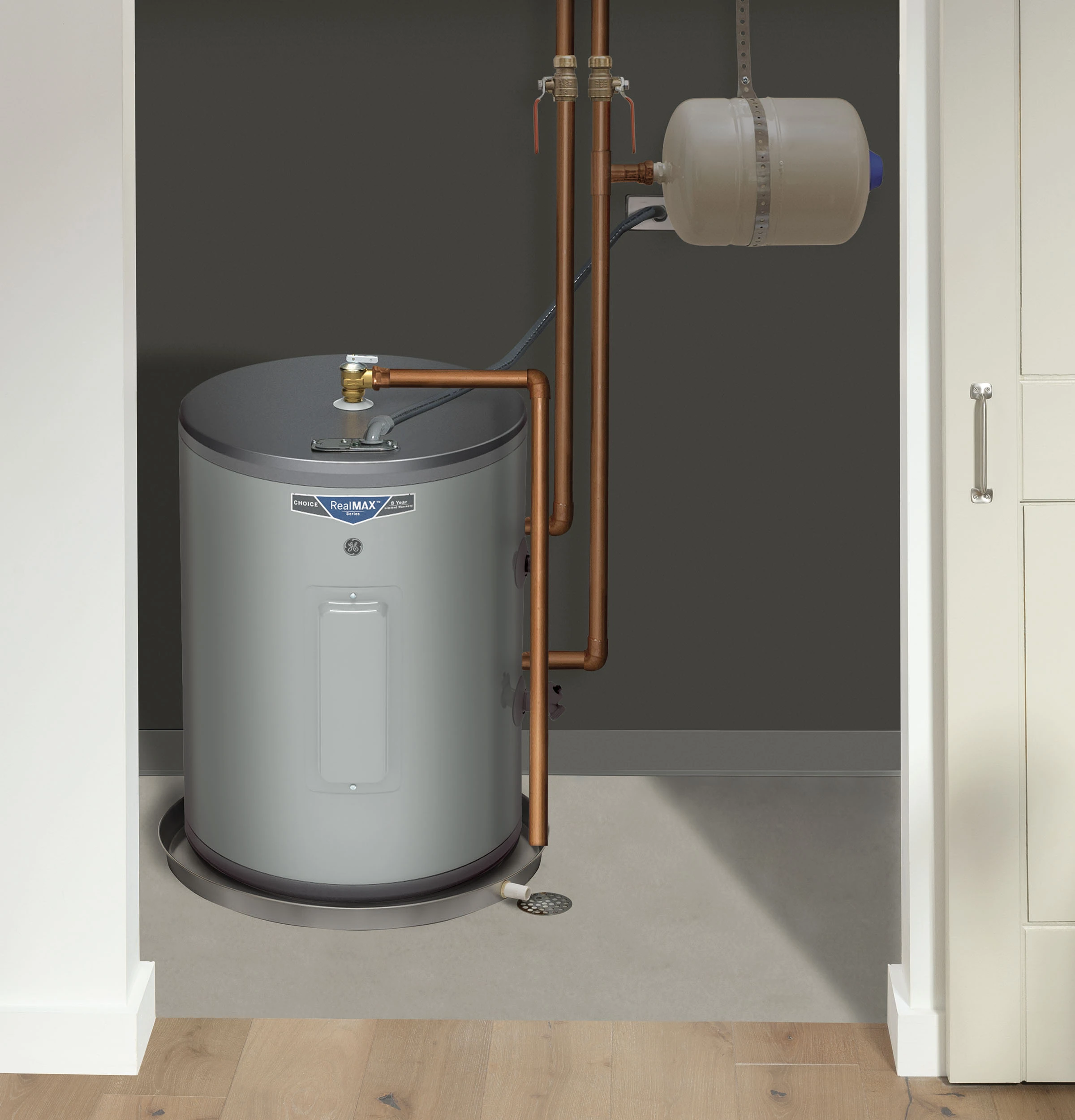

Whole Home Flexibility
Can provide hot water to a single hookup, or to a small house, condo, or apartment
Compact Design
Ideal in limited spaces like kitchens, bathrooms, laundry rooms, cabins, RVs, garages, sheds, etc
120 Volt
Connects into any 120-Volt supply
Hot Water Booster
Works as a standalone unit, or inline with another water heater to boost long pipe runs or washing machines

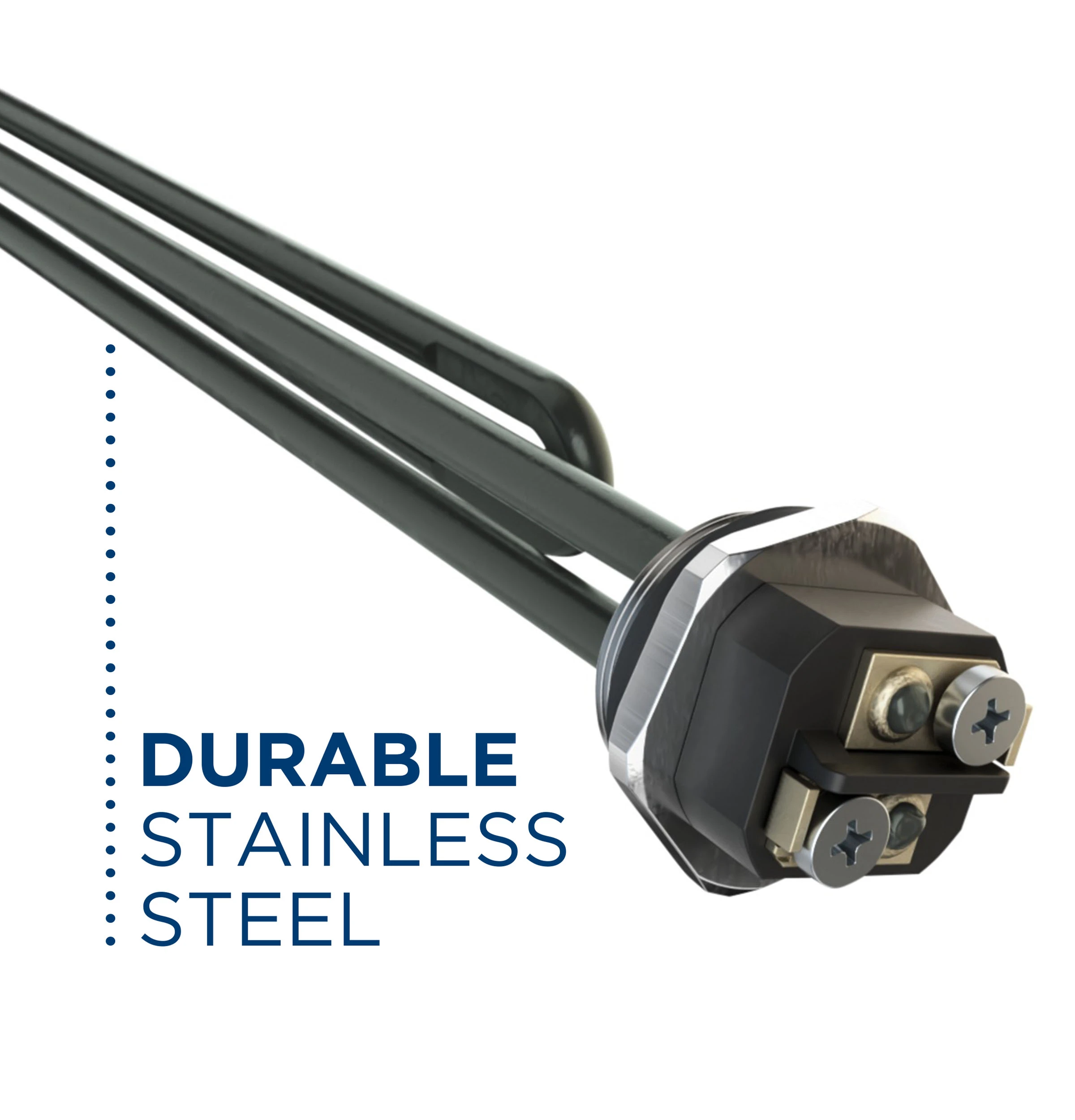

Stainless Steel Heating Element
Provides reliable heat with ultra-durable design that resists rust and corrosion

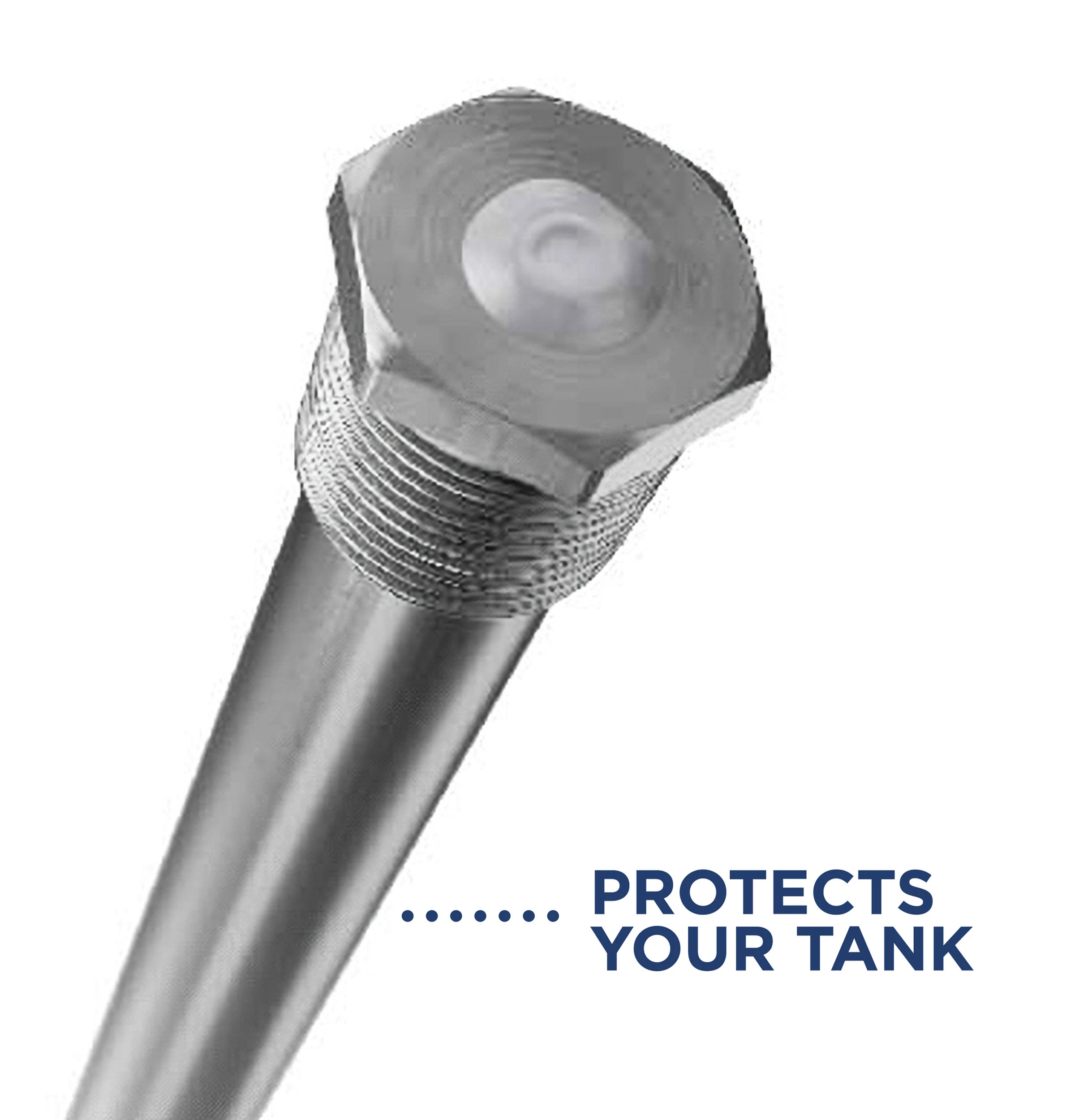

Anode Rod
Durable design extends the life of your water heater with long-lasting protection against corrosion

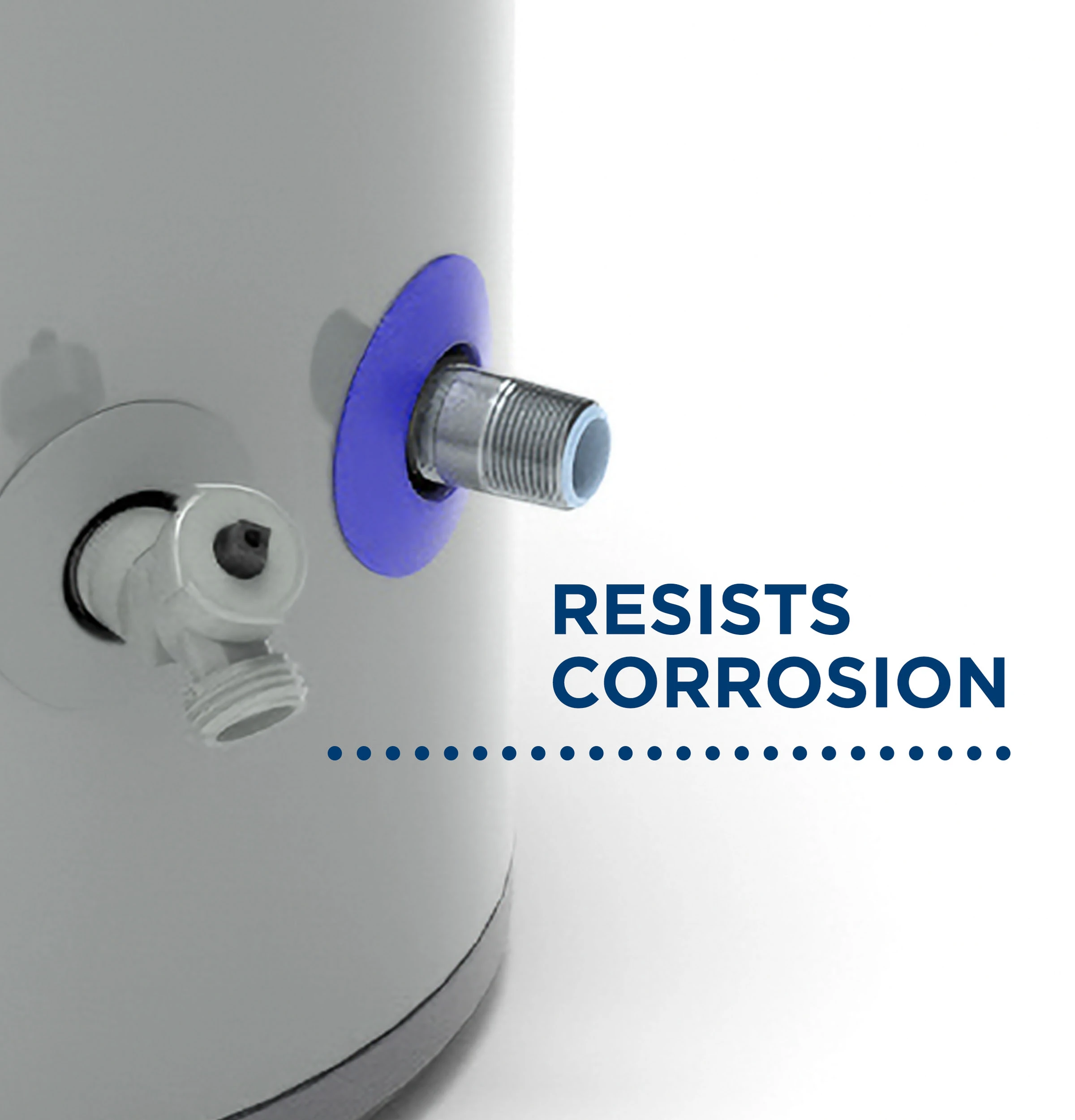

Drain Valve
Rust-proof construction can be counted on to provide long-lasting service

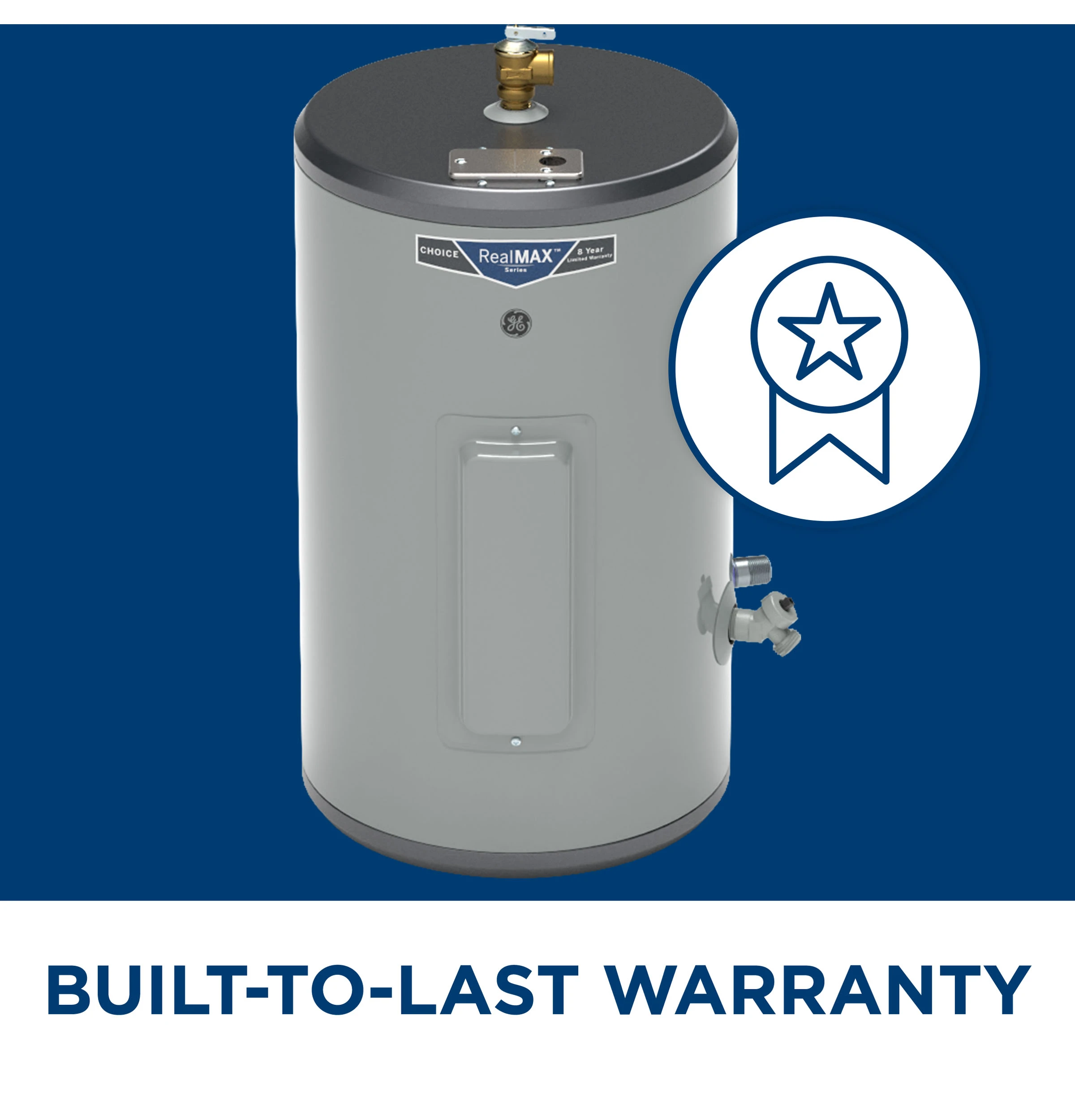

Built-To-Last Warranty
8-year tank and parts/1-yr labor

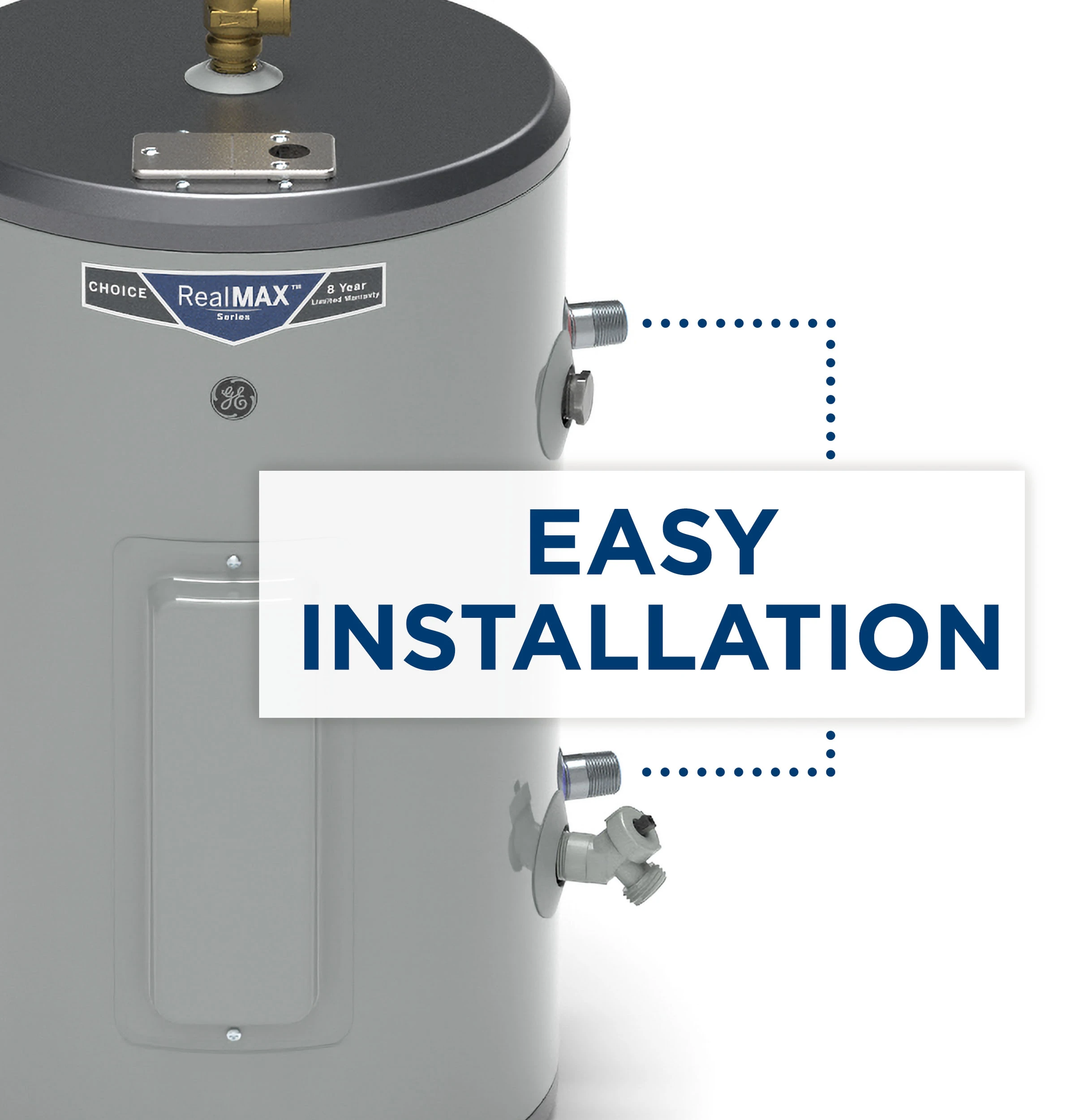

Easy Installation
Uses standard 3/4-in NPT water connections for simple installation

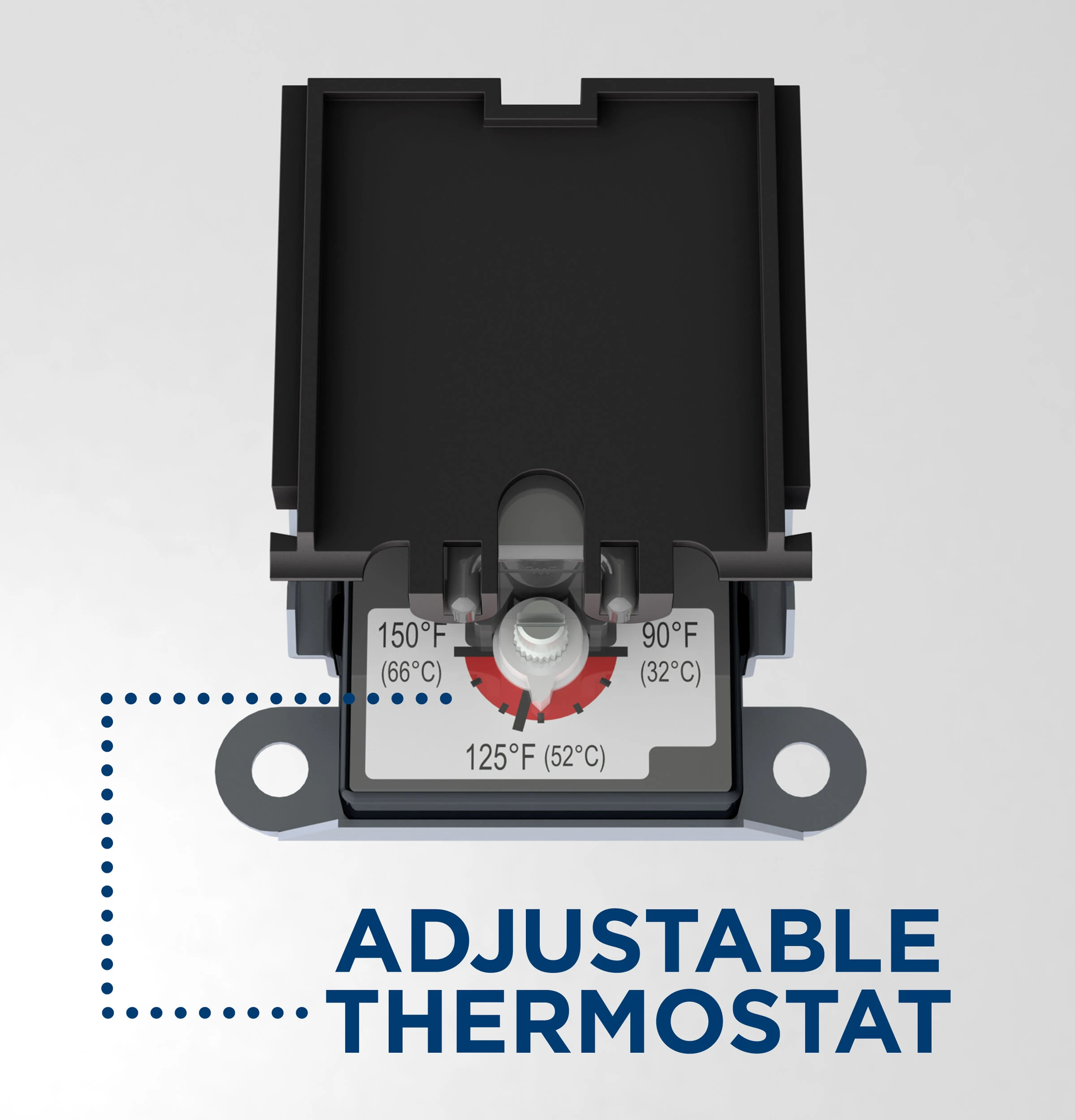

Adjustable Thermostat
Easily change temperatures to your desired settings
Specifications
Overall Width
19.3 in
Overall Height
25.75 in
Product Height (to top of unit)
25.75 in
Overall Depth
19.25 in
Approximate Shipping Weight
62 lb
Net Weight
54.2 lb
Connection Sizes - Water Inlet (MNPT)
3/4"
Connection Sizes - Hot Water Outlet (MNPT)
3/4"
Product Diameter
19.300 in
Power Cord Length
6' Included
Controls
Mechanical Temperature Control
Max. operating pressure (psi)
150
Temp & Pressure Relief Valve
Top
Height Description
Point of Use
Heating Element
Stainless steel
Max: operating pressure (psi)
150
Fuel Type
Electric
Configuration
Space Saver
Installation Location
Indoor
Drain Valve Type
Plastic
Temperature Setting Factory Default
120° F
Product Type
Electric Point Of Use
Water Connection Location
Side
Point of Use
Yes
Anode Rod
Aluminum
Temperature Setting
70-140° F Range
Rated Capacity
18.0 gal
Installation
Free-Standing
Color Appearance
Gray
Power Rating-kW
1.5
Amps
12
Hertz
60
Voltage (MAX)
120 V
Warranty Notes
See written warranty for full details
Parts Warranty
Limited 8-year tank and parts
Labor Warranty
Limited 1-year entire appliance
Unit Capacity
18 Gallons
Product Diameter
19.3 in
Connection Sizes - Water Inlet (MNPT)
1/2"
Width
19.3 in.
Height
25.75 in.
Length
19.25 in.
Weight
54.2 lbs.
Number of Boxes
1
Shipping Width
24.3 in.
Shipping Height
30.75 in.
Shipping Length
24.25 in.
Shipping Weight
94.2 lbs.
Total of Shipping Weight
94.2 lbs.
Source
Calculation
Cubic Feet Measurement
5.54 ft³
Dimensional Weight
68.83 lbs.
Total of Cubes
5.54 ft³
Total of Dimensional Weight
68.83 lbs.
Whole Home Flexibility
Compact Design
120 Volt
Hot Water Booster
Stainless Steel Heating Element
Anode Rod
Drain Valve
Built-To-Last Warranty
Easy Installation
Adjustable Thermostat
UPC
084691864011
