PRODUCT DESCRIPTION
Features
Unlimited Hot Water on Demand

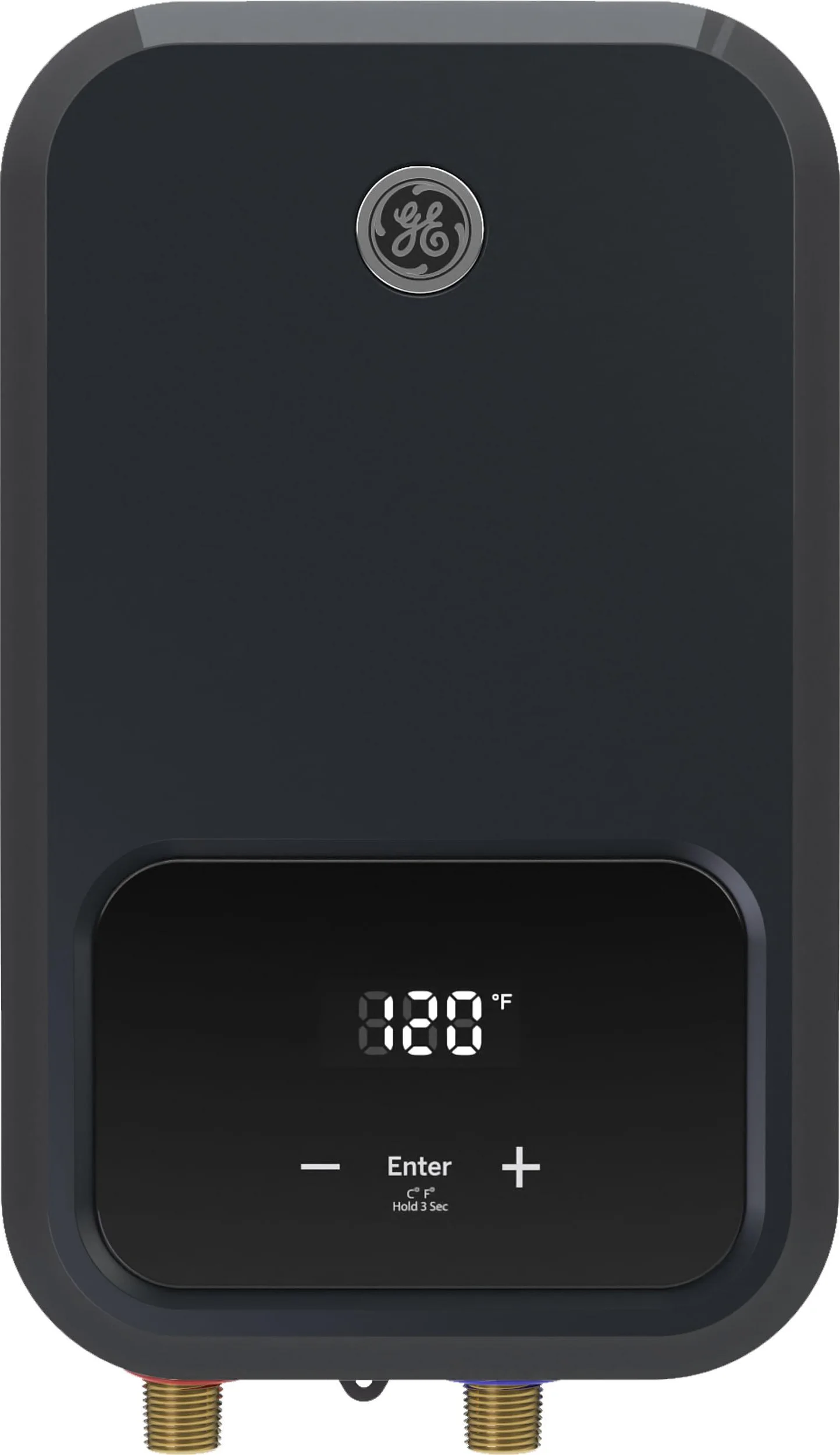

Tankless electric water heater provides instant, continuous water flow

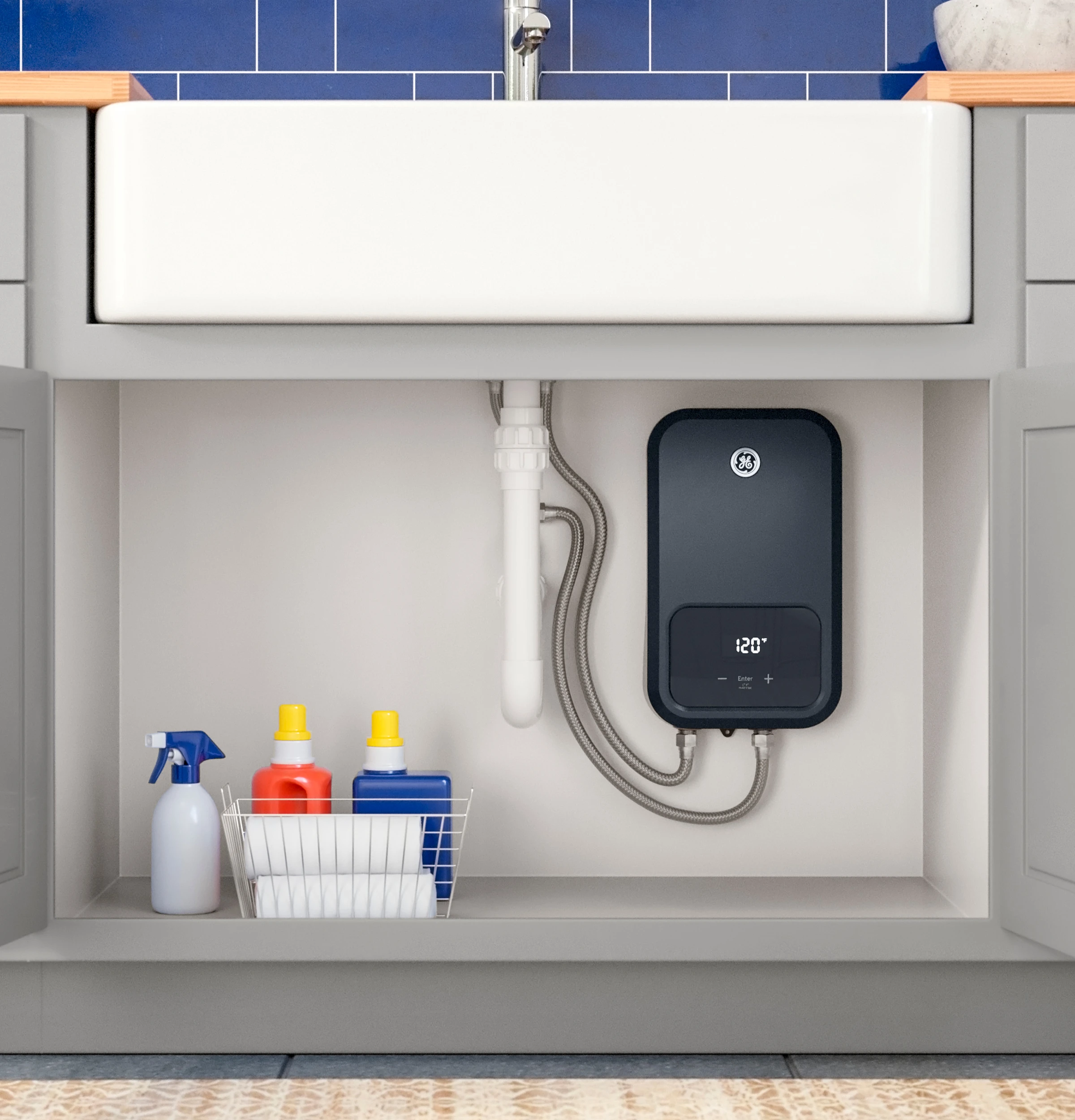

Point of Use
Installs at the point of use, for hot water where you need it
Performance Up to 1.7 Gallons Per Minute (GPM)
Enough to run 3 faucets simultaneously or 1 shower in warm climates (*Results are based on 72˚F inlet water temperature and 105˚F outlet water temperature)

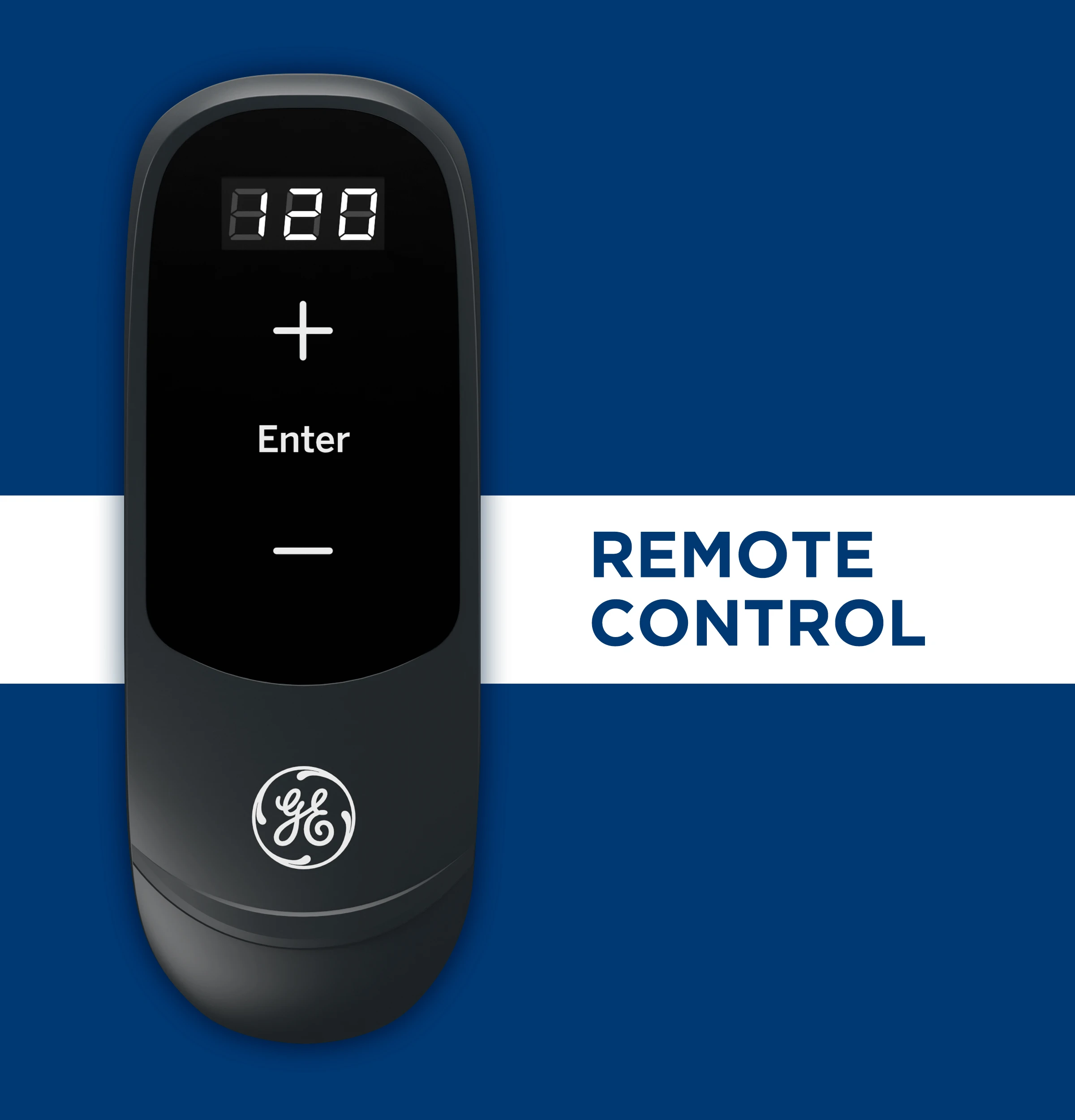

Remote Control
Conveniently change temperature settings and control your unit from up to 30' away

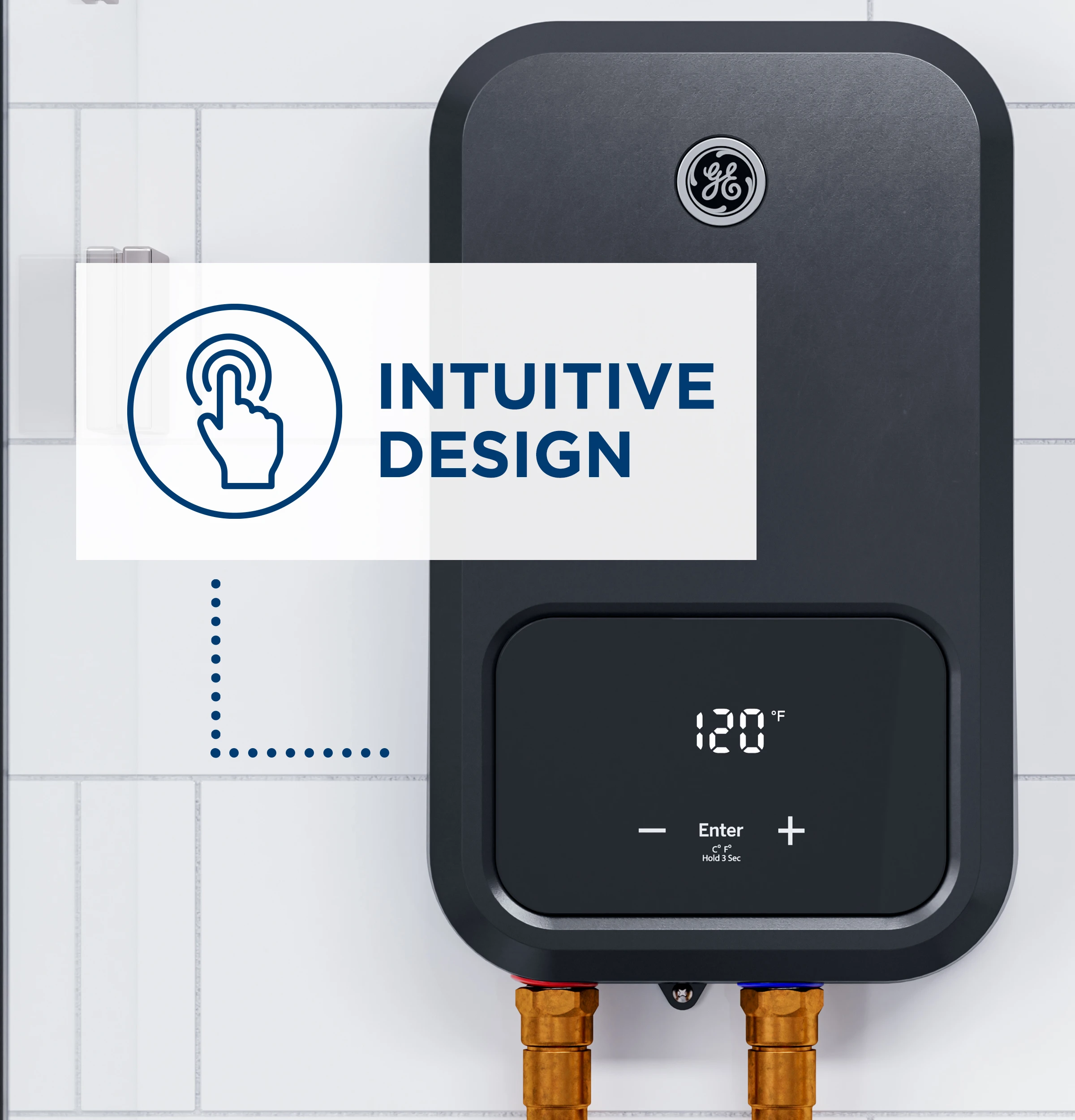

Intuitive Design
Adjust temperature and settings with easy-use touch screen
Energy Efficient
Conserves energy and water by only using energy when hot water is in use, saving you money

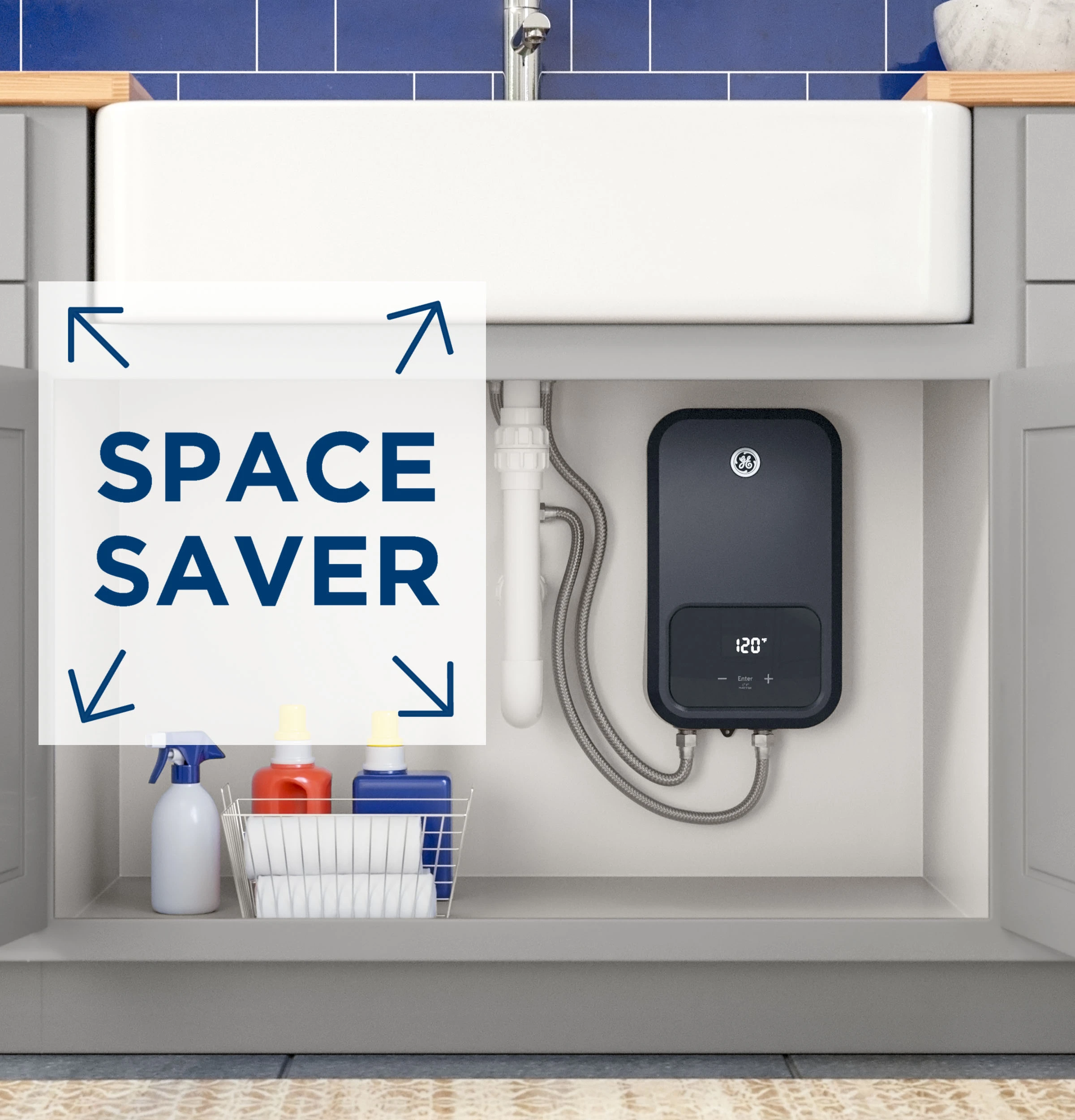

Space Saver
Compact design takes up significantly less space than a tank style water heater

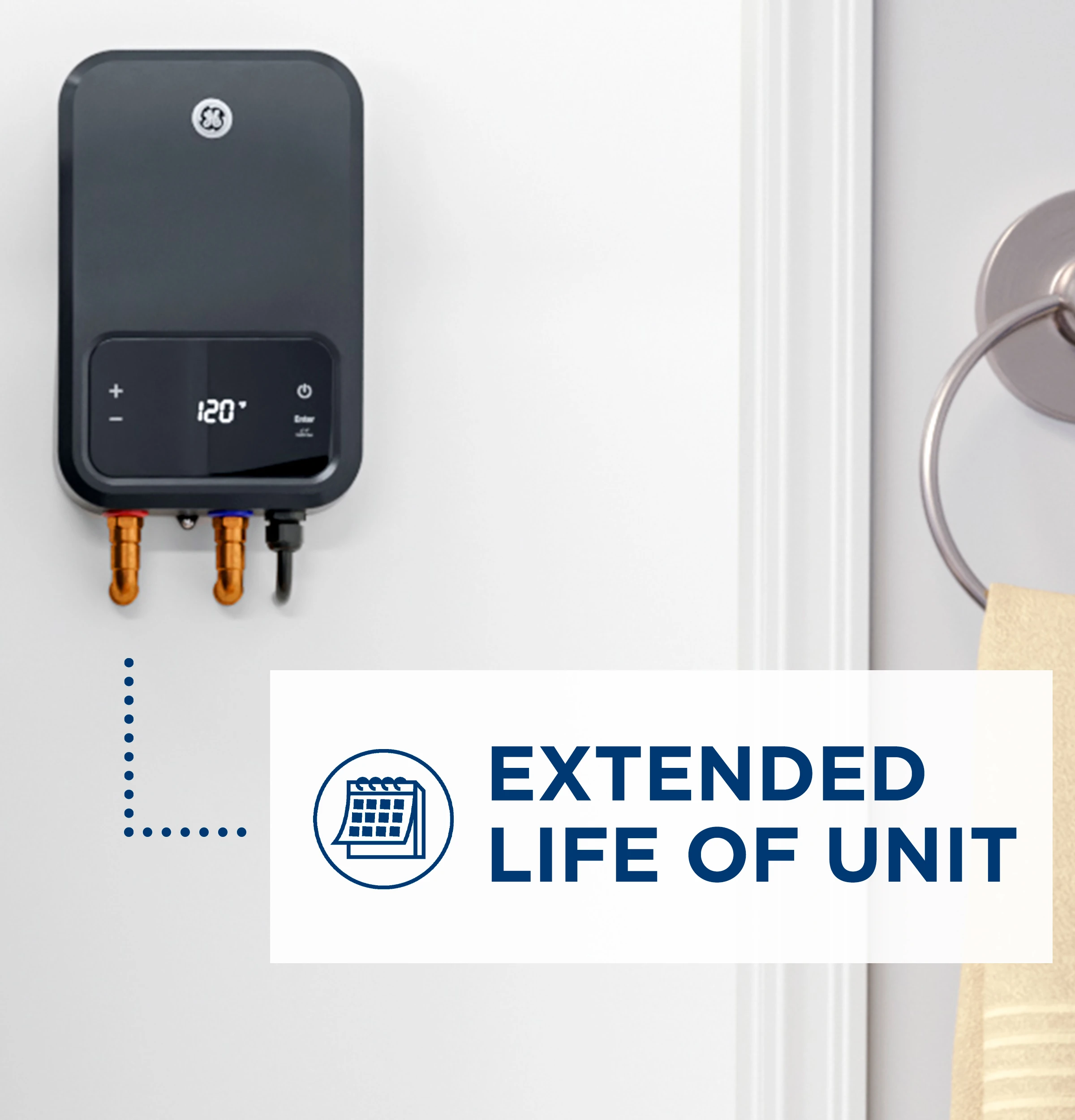

Scale Reduction Technology
Extends the life of the unit by shielding heating element from water and scale buildup

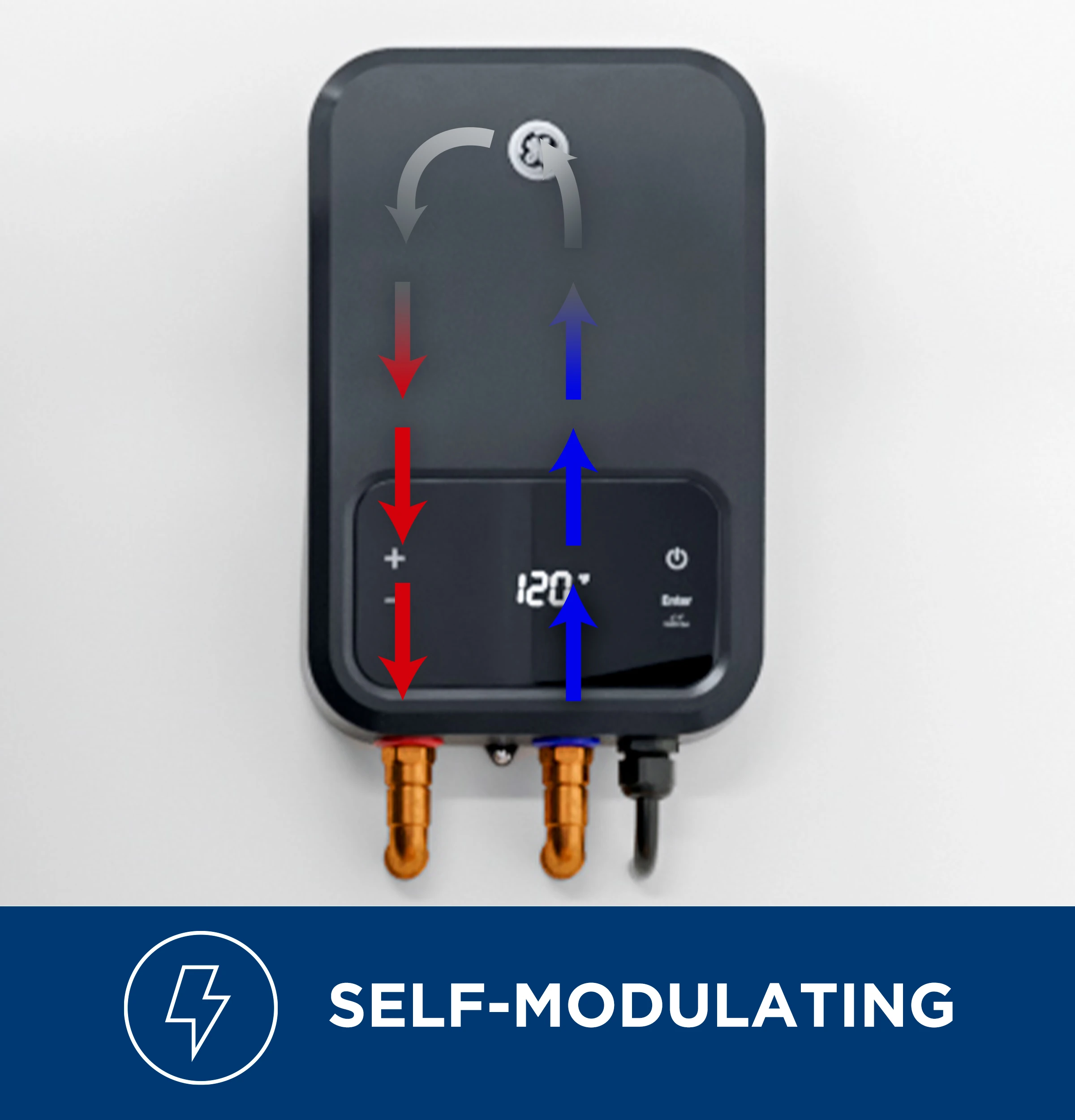

Self Modulating Technology
Utilizes inlet and outlet temperature sensors to optimize energy usage and keep water temperature consistent
Easy Installation
Uses standard 1/2-in NPT water connections and does not require venting for simple, wall-mounted water heater installation
Digital Temperature Control
Easily set temperatures in 1° increments ranging from 86°F to 140°F
Fahrenheit or Celsius
Switch temperature units with a simple tap on an easy-read digital display
Warranty Length
5-year Limited Replacement Warranty
Specifications
Overall Width
8.5 in
Overall Height
14.2 in
Product Height (to top of unit)
14.2 in
Approximate Shipping Weight
10.1 lb
Net Weight
9.7 lb
Overall Depth
2.40 in
Product Diameter
8 1/2 in
Uniform Energy Factor (UEF)
>0.91
Flowrate (GPM) @ 47 F inlet
0.8
Flowrate (GPM) @ 37 F inlet
0.69
Flowrate (GPM) @ 77 F inlet
2
Flowrate (GPM) @ 62 F inlet
1.29
Min. operating pressure (psi)
25
Controls
Adjust degree Fahrenheit/Celsius
Max. operating pressure (psi)
150
Max: operating pressure (psi)
150
Fuel Type
Electric
Flowrate (GPM) @ 57 F inlet
1.1
Configuration
Space Saver
Installation Location
Indoor
Flowrate (GPM) @ 72 F inlet
1.7
Temperature adjustment amount (degree)
1
Activation Flowrate (GPM)
≤ 0.4
Temperature Setting Factory Default
105° F
Product Type
Electric Tankless
Flowrate (GPM) @ 52 F inlet
0.89
Integrated Safety Devices
Flow sensor. High limit thermostat (on each heating element). Inlet Temperature Sensor. Material Rated for Ignition Containment. Outlet Temperature Sensor.
Maximum Outlet Temperature (F)
140
Water Connection Location
Bottom
Point of Use
Yes
Cold/hot water connections (inches)
1/2" Cold Water Inlet; 1/2" Hot Water Outlet
Remote Control
Yes
Flowrate (GPM) @ 67 F inlet
1.6
Temperature Setting
86-140° F Range
Flowrate (GPM) @ 42 F inlet
0.8
Installation
Wall Mounted
Color Appearance
Diamond Gray
Electrical Requirements
240V ; 40A
Power Rating-kW
8
Amps
33.3
Hertz
60
Voltage (MAX)
240 V
Electrical Circuit Required
40 Amp
Energy Consumption (kWh/year)
649
Product Diameter
8.5 in
Width
8.5 in.
Height
14.2 in.
Length
2.4 in.
Weight
9.7 lbs.
Number of Boxes
1
Shipping Width
13.5 in.
Shipping Height
19.2 in.
Shipping Length
7.4 in.
Shipping Weight
49.7 lbs.
Total of Shipping Weight
49.7 lbs.
Source
Calculation
Cubic Feet Measurement
0.17 ft³
Dimensional Weight
1.75 lbs.
Total of Cubes
0.17 ft³
Total of Dimensional Weight
1.75 lbs.
Warranty Notes
See written warranty for full details
Parts Warranty
5-Year Replacement
Labor Warranty
No Warranty
Capacity
1.7 Gallons Per Minute (GPM)
Unlimited Hot Water on Demand
Point of Use
Performance Up to 1.7 Gallons Per Minute (GPM)
Remote Control
Intuitive Design
Energy Efficient
Space Saver
Scale Reduction Technology
Self Modulating Technology
Easy Installation
Digital Temperature Control
Fahrenheit or Celsius
Warranty Length
UPC
084691857013
