PRODUCT DESCRIPTION
Specifications
Installation
Wall Mounted
Color Appearance
Diamond Gray
Power Rating-kW
5.5
Amps
22.9
Voltage (MAX)
240 V
Electrical Circuit Required
30 Amp
Electrical Requirements
240V ; 30A
Hertz
60
Energy Consumption (kWh/year)
649
Parts Warranty
5-Year Replacement Return to Vendor
Warranty Notes
See written warranty for full details
Labor Warranty
No Warranty
Approximate Shipping Weight
5.5 lb
Overall Width
9.9 in
Overall Height
9.8 in
Product Height (to top of unit)
9.8 in
Net Weight
4.7 lb
Product Diameter
9.9 in
Overall Depth
3.4 in
Uniform Energy Factor (UEF)
>0.91
Flowrate (GPM) @ 47 F inlet
0.6
Flowrate (GPM) @ 37 F inlet
0.5
Flowrate (GPM) @ 77 F inlet
1.39
Flowrate (GPM) @ 62 F inlet
0.89
Min. operating pressure (psi)
25
Controls
Adjust degree Fahrenheit/Celsius Adjustable Temperature Digital Electronic Control
Max. operating pressure (psi)
150
Max: operating pressure (psi)
150
Fuel Type
Electric
Flowrate (GPM) @ 57 F inlet
0.69
Configuration
Space Saver
Installation Location
Indoor
Flowrate (GPM) @ 72 F inlet
1.2
Temperature adjustment amount (degree)
1
Activation Flowrate (GPM)
0.3
Temperature Setting Factory Default
105(degree) F
Product Type
Electric Tankless
Flowrate (GPM) @ 52 F inlet
0.69
Integrated Safety Devices
Flow sensor. High limit thermostat (on each heating element). Inlet Temperature Sensor. Material Rated for Ignition Containment. Outlet Temperature Sensor.
Maximum Outlet Temperature (F)
140
Water Connection Location
Bottom

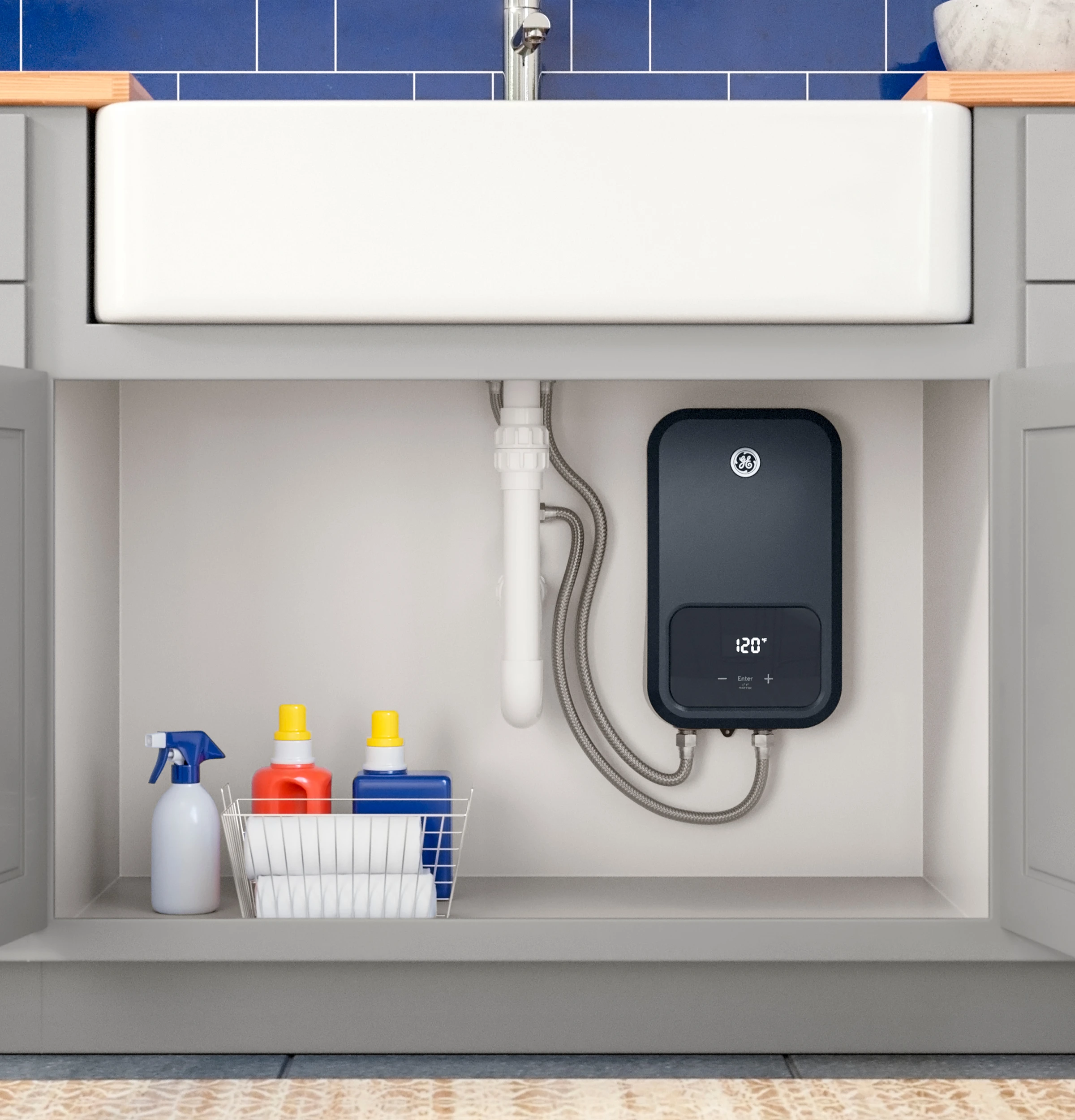

Point of Use
Cold/hot water connections (inches)
1/2" Cold Water Inlet; 1/2" Hot Water Outlet
Flowrate (GPM) @ 67 F inlet
1.1
Temperature Setting
86-125(degree) F Range
Flowrate (GPM) @ 42 F inlet
0.5

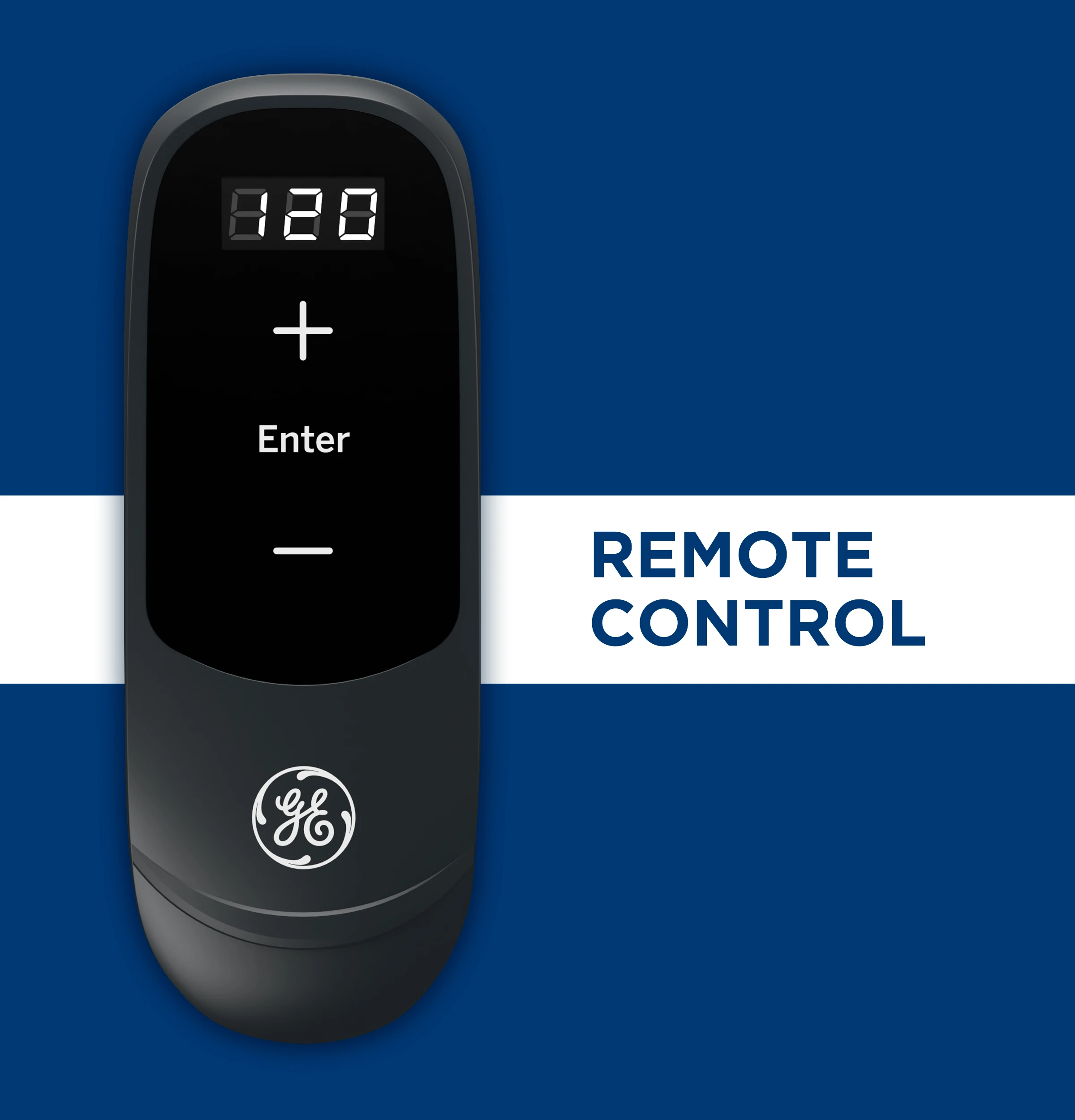

Remote Control
Unlimited Hot Water on Demand
Performance Up to 1.2 Gallons Per Minute (GPM)

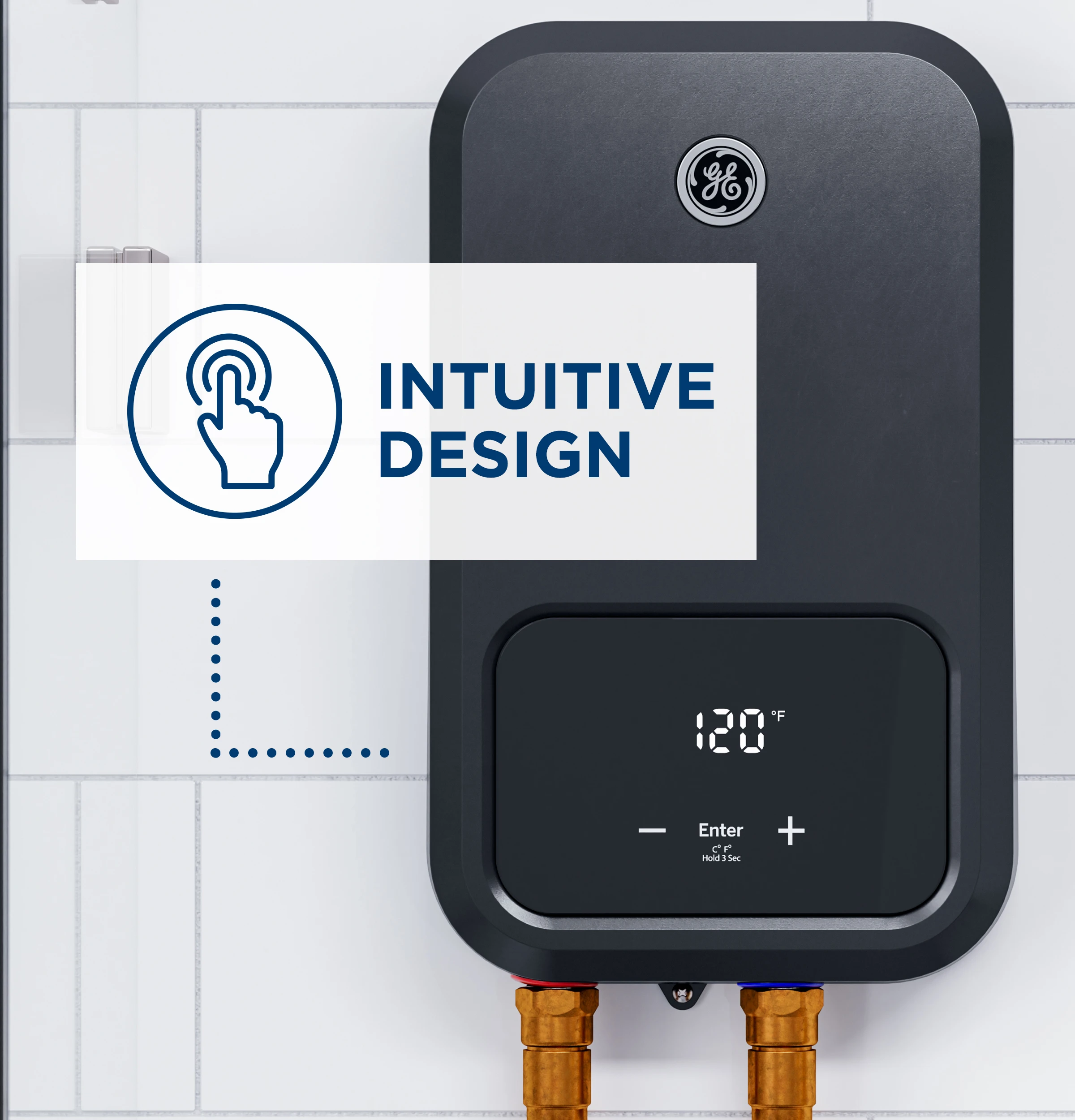

Intuitive Design
Energy Efficient

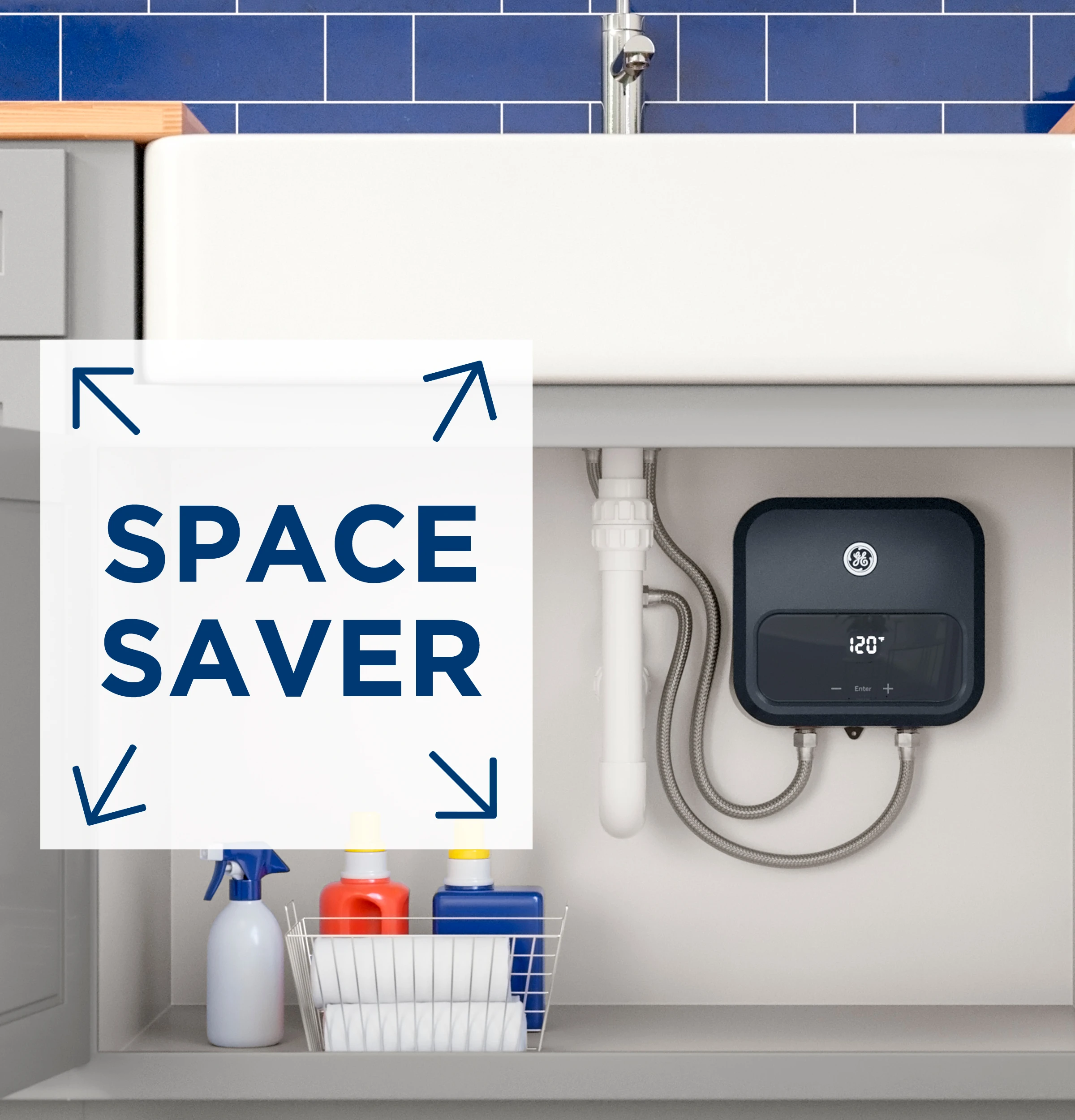

Space Saver
Scale Reduction Technology

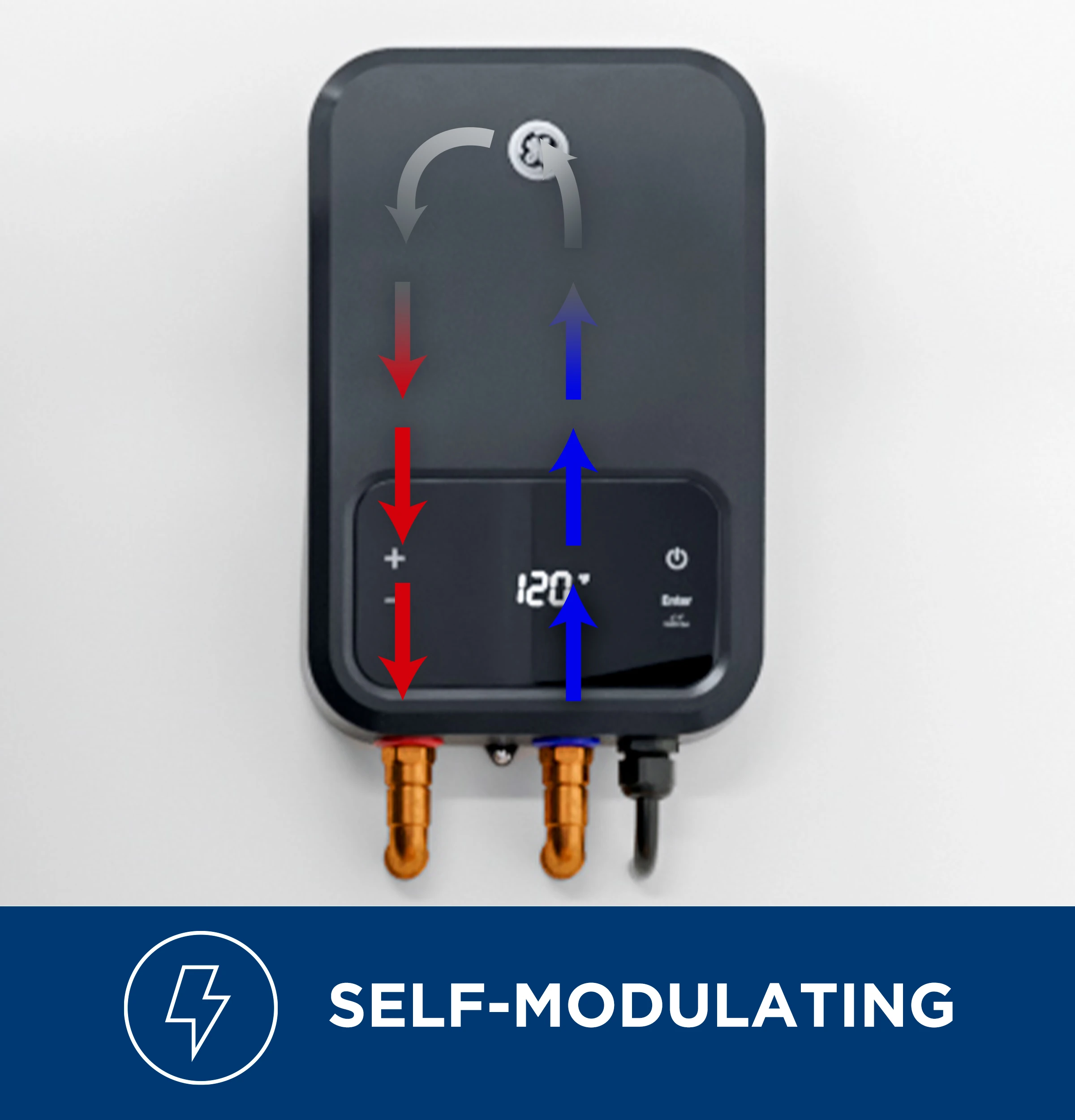

Self Modulating Technology
Easy Installation
Digital Temperature Control
Fahrenheit or Celsius
Warranty Length
GTIN
00084691857006
EAN
0084691857006
UPC
084691857006
