PRODUCT DESCRIPTION
Specifications
Door Panel Color
Custom Panel Required
Handle
Custom Handle Required
Panel Capability
Integrated
Installation
Flush Cabinet Installation
Door Style

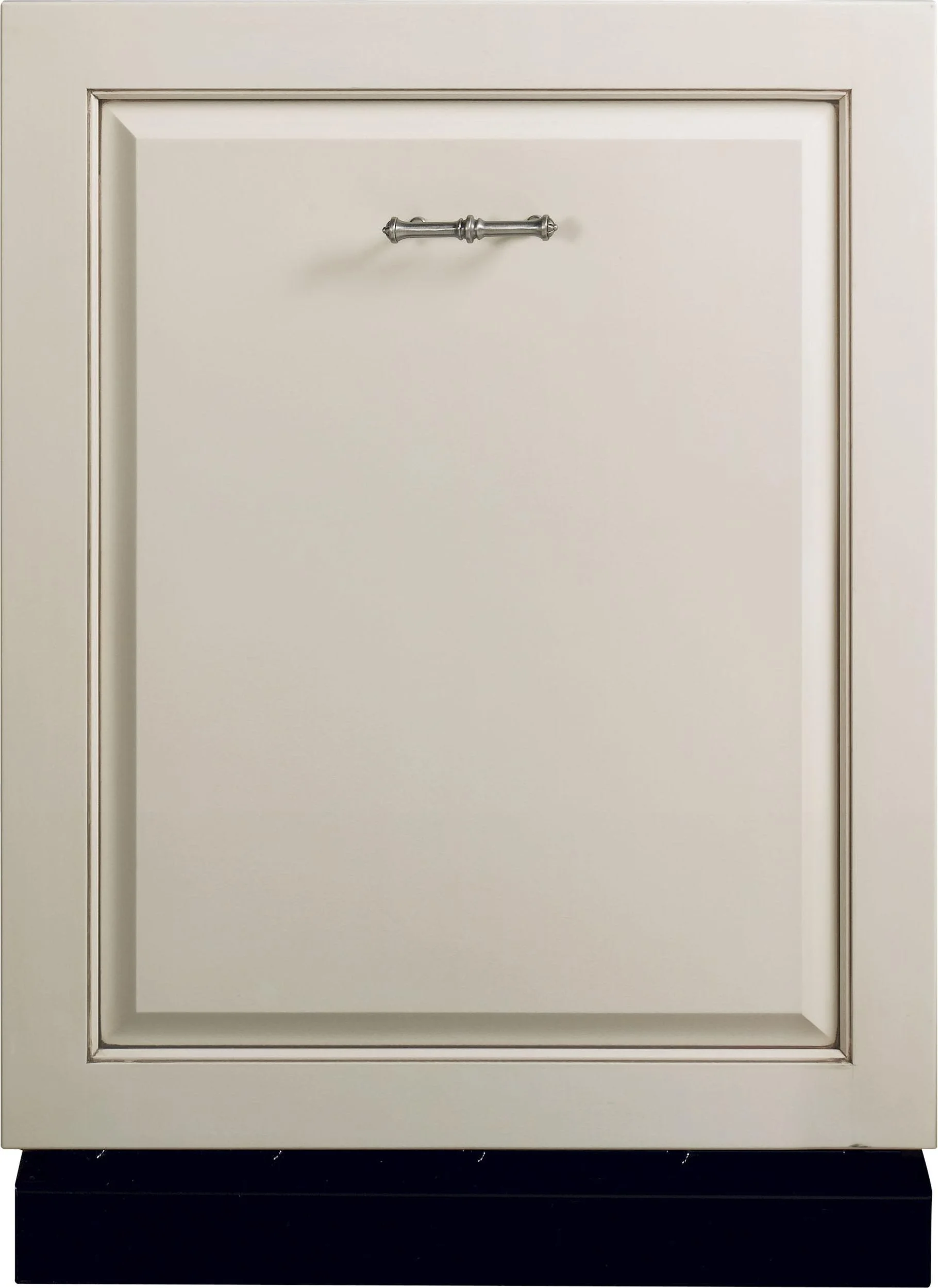

Fully integrated door for custom panels
Color Appearance
Custom Panel and Handle Required
Power Connection
Optional cord kit (GPFCORD - WX09X70910, WX09X70911)
Energy Consumption (kWh/year)
240
Electrical Requirements
120V ; 60 Hz ; 8.9 A
Hertz
60
Watts
1068
Labor Warranty
Limited 1-year entire appliance
Warranty Notes
See written warranty for full details
Parts Warranty
Limited 1-year entire appliance
Door Insulation
Insulation Mastic
Quiet Package
51 dBA
Outer Wrap
U-Blanket
Motor Type
Single Speed
Quiet Features
Sealed Toe Kick Tub Collar Trim
Height w/ Legs Retracted - Minimum Height
32.25 in
Cutout Height (in)
32 3/8 in
Cutout Width (in)
24 in
Overall Depth
23.5 in
Cabinet Width
24 in
Net Weight
81 lb
Overall Width
23.75 in
Approximate Shipping Weight
96 lb
Overall Height
32.25 in
Cutout Depth (in)
24 in
Height w/Legs Extended - Maximum Height
34.625 in
Depth with Door Open
23 in
Depth Without Handle
23.5 in
Wash System
3-Level Standard
Sensor
Clean Sensor
Lower Rack
Nylon
Leveling System
Leveling Legs
Number of Place Settings
12
Dishwasher Options
Child Lock Delay Start 1-12 Hr. Sani (Certified to NSF Standard 184) Start/Reset TempBoost
Latch
Pull with Custom Handle (not included)
Number of Options
5
Style
Built-In Top Control
Water Filtration System
3-Stage Manual Clean Filtration
Rack Features
1 Plastic Utility Shelf - Upper 2 Piece Silverware Basket with Cell Covers Ball-Tipped Tines Stem Safe
Dishwasher Cycles
AutoSense Heavy Wash Light Wash
Dispenser
Rinse Aid with Indicator and Adjustment
WiFi Connect
Optional (Requires part no. PBX23W00Y1)
Control Type
4 Pushbuttons Fully Integrated Electronic Top Controls
Racking System
Gray
Dishwasher Drying Features
Condensate Dry
Wash Arms
2 with Upper Nozzle
Wash System Features
Automatic HotStart Automatic Temperature Control Dual Pump Flood Control System Piranha(TM) Hard Food Disposer
Exterior Style
Custom Panel
Product Type
Built-In
Connected Capabilities
Amazon Alexa IFTTT Sonos The Google Assistant
Upper Rack
Adjustable Nylon
Dishwasher Control Features
3 Digit Countdown Display with 1 "Clean" light / 1 "Sanitized" light Cycle Progress Indicators Audible End-of-Cycle Signal Cycle Countdown Last Cycle Memory Start/Reset Pad
Number of Cycles
3
Tub and Door Liner
Stainless Steel
ADA Compliant with Low-Profile Installation
3-Level Wash
Autosense Cycle
Piranha(TM) hard food disposer with removable filter
Sanitize option (NSF Certified)
Quiet Package
GTIN
00084691860655
EAN
0084691860655
UPC
084691860655
Height w/ Legs Retracted - Minimum Height
32.25 in
Cutout Height (in)
32 3/8 in
Cutout Width (in)
24 in
Overall Depth
23.5 in
Cabinet Width
24 in
Net Weight
81 lb
Overall Width
23.75 in
Approximate Shipping Weight
96 lb
Overall Height
32.25 in
Cutout Depth (in)
24 in
Height w/Legs Extended - Maximum Height
34.625 in
Depth with Door Open
23 in
