PRODUCT DESCRIPTION
Features
Water Level Control
Manually add up to 26 gallons of water to your washer, or let the washer optimize with auto-fill for great cleaning results no matter the cycle selected.
Wash Mode
Choose the wash mode that better adapts to you. Extra Soaking or Intense Wash, to eliminate the toughest stains. Extra 15-minutes of soaking powwer for toughest stains or more powerful wash action for heavily soiled items.
10-Year Limited Motor Warranty
Enjoy peace of mind for years to come with a washer warranty that backs the motor with a dependable 10-year limited warranty.

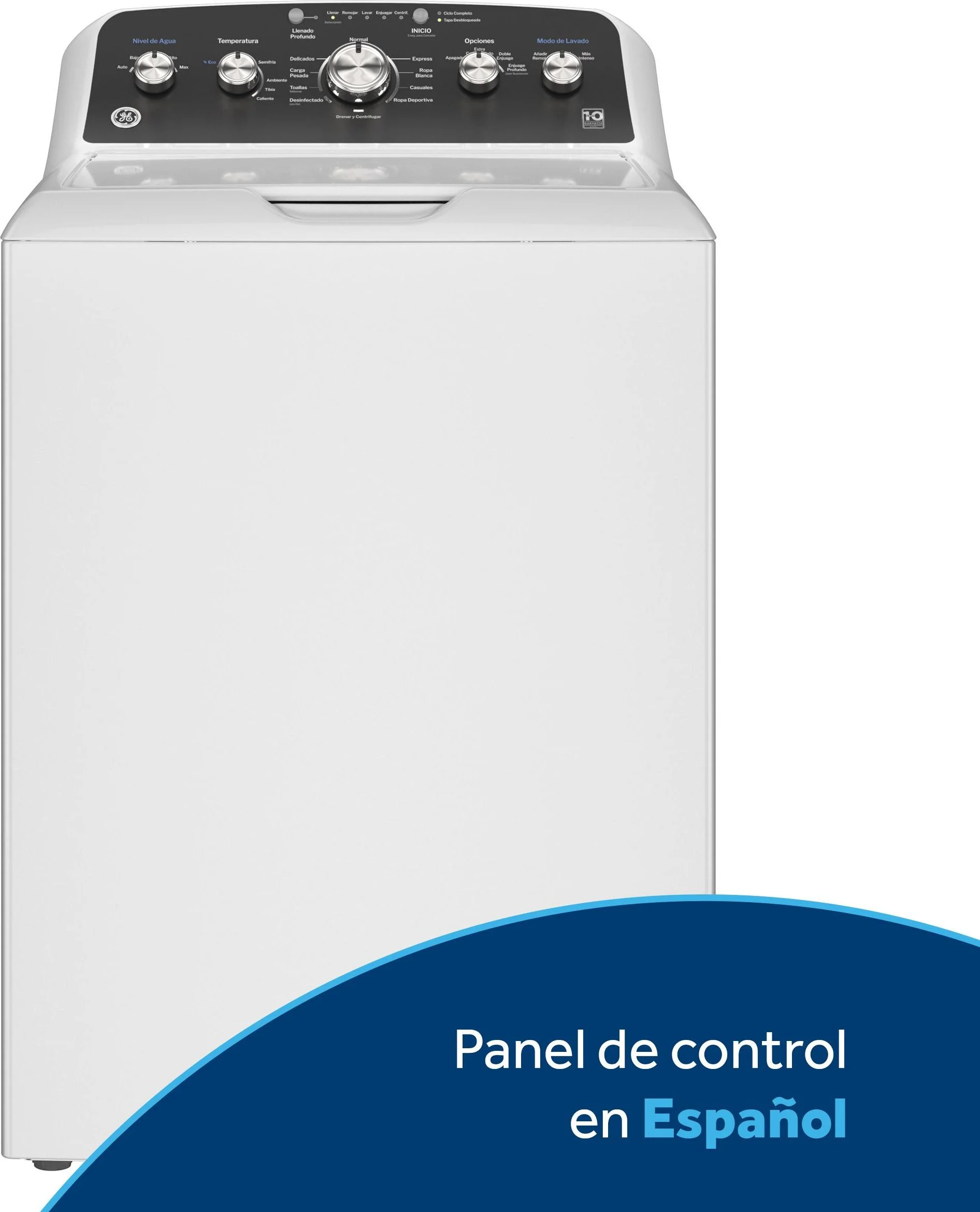

Spanish Control Panel
Large 4.5 Cu. Ft. Capacity
Power through laundry day in less time than ever before with a large capacity washing machine that can easily handle big loads and bulky items.
True Dual-Action Agitator
This durable, built-in, Dual Action Agitator provides better circulation and turnover of clothes to achieve a deep clean while being gentle on your clothes.
Eco Cold
Wash without compromise in cold water. When selected Eco Cold adjusts wash action to achieve a great clean while saving up to 90% on energy costs *Energy savings using cold water vs. hot water for the normal cycle with a max load using the DOE test procedure to measure machine and hot water energy.
Stainless Steel Drum
Stainless steel basket ensures both your appliance and your clothes are protected from rust, chips, peeling or snags
Deep Rinse
Ensure that all your garments are free from detergent, fabric softener,stubborn soils and even pet hair in this deep rinse washing machine.
Status Notification
Effortlessly monitor your wash cycle using the notication display that lights to idicate fill, soak, wash, rinse, or spin status at a glance.
Made in America
This American-Made washing machine contains 70 to 90% U.S. content.
Bleach and Fabric Dispensers
Eliminate the need to add bleach and softeners mid-cycle with automatic bleach and softener dispensers in the washing machine.
Late Lid Lock Safety
Pre-treat stains, infuse detergents or add in forgotten clothes without being locked out with the convenient Late Lid Lock Safety. When the water level is manually selected, the lid only locks during the final spin for safety.
Specifications
Wash Basket Type
Stainless Steel
Total Capacity (cubic feet)
4.5 cu ft
Door Style
Steel
Control Knobs
Chrome
Color Appearance
White w/ Black Matte Backsplash
Motor Speeds
Variable
Volts/Hertz
120V; 60Hz
Volts/Hertz/Amps
120 V; 60 Hz; 10A
Electrical Requirements
120V ; 60 Hz ; 10A
Energy Consumption (kWh/year)
186
Hertz
60
Watts
1200
Parts Warranty
Limited 1-year entire appliance; limited 10-year motor
Warranty Notes
Limited 1-Year, See written warranty for full details
Labor Warranty
Limited 1-year entire appliance
Fill Hose
WX14X10011 (sold separately)
Overall Height
44 in
Overall Width
27 in
Approximate Shipping Weight
155 lb
Overall Depth
27 in
Height Needed for Lid to Raise 90 Degrees
54
Net Weight
147 lb
Wash Mechanism
True Dual-Action Agitator
Control Type
LED Rotary-Electronic
Water Levels
4 + Auto Auto, Low, Medium, High, Max
Washer Options/Settings
Deep Fill Deep Rinse Eco Cold Extra Rinse Extra Spin Wash Boost - Power Wash Boost - Soak
Additional Washer Features
Auto Balance Suspension System Leveling Legs
Washer Control Features
End-of-Cycle Signal LED Cycle Status Lights
Adaptive Capabilities
Auto
Washer Cycles
ActiveWear Bulky Casuals Delicates Drain & Spin Normal Quick Wash Sanitize w/ Oxi Towels / Sheets Whites
Product Type
Top Load
Dispenser
Bleach Fabric Softener
Wash/Spin Speed Combinations
Variable
Maximum Spin Speed
700 RPM
Water Temp System
Cold Plus, Cold, Cool, Mild, Warm, Hot
Number of Cycles
10
Agitator Type
True Dual-Action Agitator
WiFi Connect
Optional (Requires part no. PBX23W00Y1)
Wash/Rinse Temperatures
6
Style
Top-Loading
Large 4.5 Cu. Ft. Capacity
Spanish Control Panel
Wash Mode
Eco Cold
10-Year Limited Motor Warranty
True Dual-Action Agitator
Water Level Control
Stainless Steel Drum
Late Lid Lock Safety
Status Notification
Bleach and Fabric Dispensers
Made in America
Deep Rinse
Fill Hose
WX14X10011 (sold separately)
GTIN
00084691946021
EAN
0084691946021
UPC
084691946021
Overall Height
44 in
Overall Width
27 in
Approximate Shipping Weight
155 lb
Overall Depth
27 in
Height Needed for Lid to Raise 90 Degrees
54
Net Weight
147 lb
