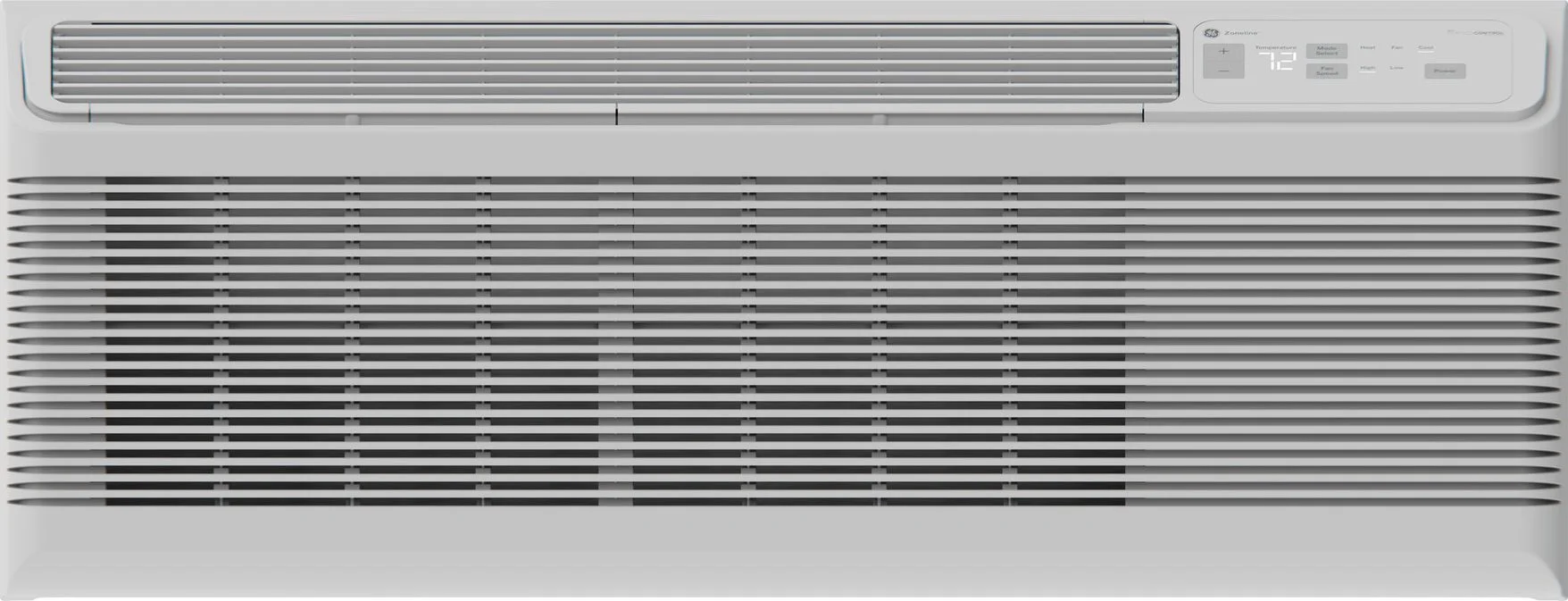

GE GE Zoneline® Heat Pump Unit with Variable Speed Inverter Technology and Makeup Air 15,000 BTU, 265 Volt in Grey White

CFM Indoor Fan High

525

CFM Indoor Fan Low

250

Cooling EER (BTUH / Watt)

11

Dehumidification (pts./hr.)

2

Cool BTUH (265V)

14300

Cooling BTUH (MAX)

14300

Central Desk Control Compatibility

Yes

Chassis Type

Slide-In

Discharge Grille

2-position

Fan Cycle Switch

Yes

Fan Speed Control

Yes

Fan Speed Selections

Hi/Low Fan Only

Freeze Sentinel

Yes

HSPF2 Rating

7

Heat - Cool

Yes

Heat Sentinel

Yes

Heating - Reverse Cycle - COP

3 .4

Heating System

E Heat/High Demand/Hybrid/Boost/HP Only

Louver Style

Reversible

Makeup Air

Yes

Manual Vent Control

Hidden

Power Factor

95

Product Type

Packaged Terminal Air Conditioners (PTAC)

Refrigerant Type

R454B

Rotary Compressor

Yes

SEER2

16

Sensible Heat Ratio

0.75

Temperature Limiting

Electronic 24-Step

Temperature Range

60 - 85 F

WiFi Connect

Built-In

Zoneline Features

Random Twist/Length Segment Tangential Blower

Refrigerant Charge (oz.)

29

Fan Motor

EC Controlled

Control Type

Tactile touch pad with LED Display

Corrosion Treated

Yes

Electronic Micro Computer Control

Yes

Filter Type

Slide-Out

Heat Pump

Yes

Color Appearance

Grey White

Approximate Shipping Weight

123 lb

Net Weight

113 lb

Overall Depth

20.8125 in

Overall Height

16 in

Overall Width

42 in

Cooling - Amperes

5.1

Cooling - Watts

1295

Heating BTUH

4,000 - 14,000

Heating - Electric - Heater Amps

4.5

Heating - Electric - Heater Watts

1165

Voltage (MAX)

265 V

Labor Warranty

Limited 5-year sealed system

Warranty Notes

See written warranty for full details

Parts Warranty

Limited 2-year entire appliance

Accessories Required for Installation

Outdoor Grille

Designed & Assembled in America

UPC

084691942771
