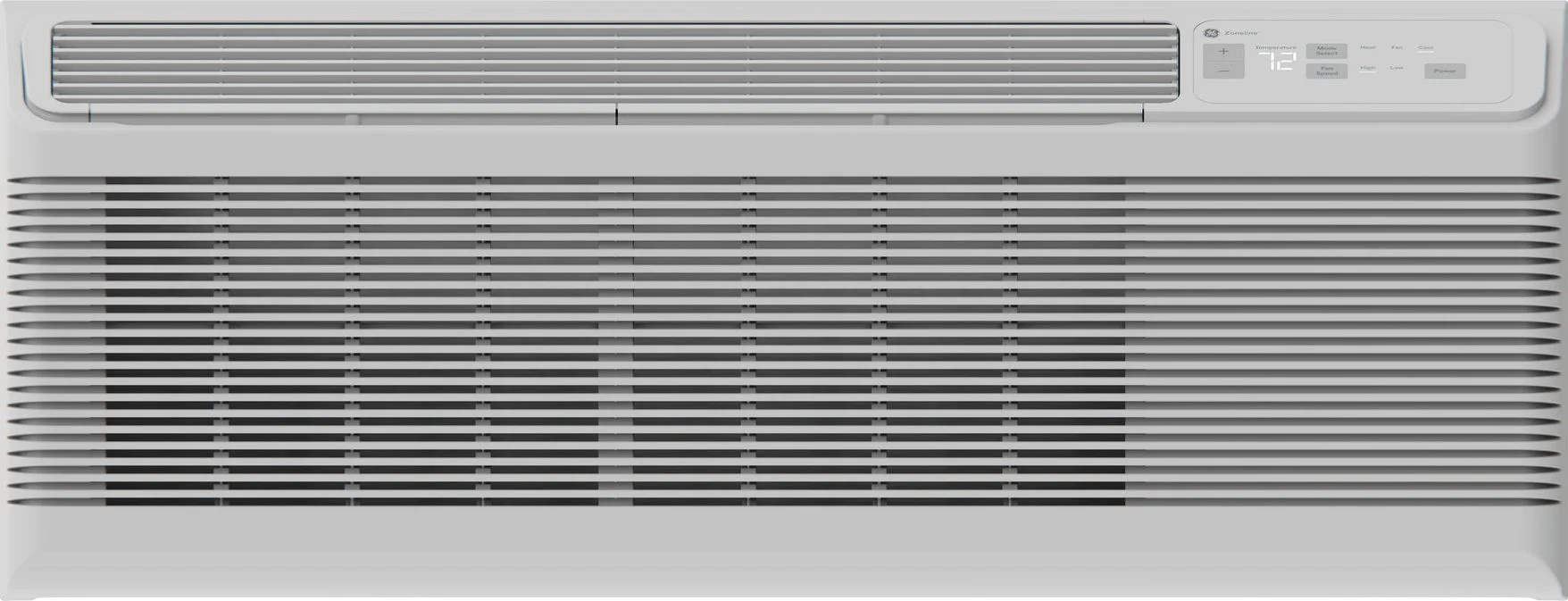

GE GE Zoneline® Heat Pump Fixed Speed Unit with ICR 15,000 BTU, 230/208 Volt in Grey White

SKU: AZHS15DRXXA

0 Questions & 0 Answers

Weight: 110.00 lbs

GE |Authorized Dealer

Pre-Order

color: Grey White

GE AZHS15DRXXA

Designed & Assembled in America

30-Days Free Returns or Exchanges

PRODUCT DESCRIPTION

GE Zoneline® Heat Pump Fixed Speed Unit with ICR 15,000 BTU, 230/208 Volt

Features

Designed & Assembled in America

Designed & Assembled in America

Date of Manufacture – 2025 or later

capacity

7 items

CFM Indoor Fan High

495

CFM Indoor Fan Low

330

Cooling BTUH (MAX)

15100

Cooling BTUH (MIN)

14,700 Btu

Cooling EER (BTUH / Watt)

10.4 / 10.4

Dehumidification (pts./hr.)

4.1 (High Speed)

Vent CFM (high fan at zero ESP)

47.5

features

32 items

Central Desk Control Compatibility

Yes

Chassis Type

Slide-In

Control Type

Tactile touch pad with LED Display

Corrosion Treated

Yes

Discharge Grille

2-position

Electronic Micro Computer Control

Yes

Fan Cycle Switch

Yes

Fan Motor

2

Fan Speed Control

Yes

Fan Speed Selections

Hi/Low Fan Only

Filter Type

Slide-Out

Heat - Cool

Yes

Heating - Reverse Cycle - COP

3.4/3.5

Heating System

Heat Pump With Backup Resistance Heat

Internal Condensate Removal (ICR)

Yes

Louver Style

Reversible

Manual Vent Control

Hidden

Power Factor

95

Product Type

Packaged Terminal Air Conditioners (PTAC)

Refrigerant Type

R454B

Rotary Compressor

Yes

Sensible Heat Ratio

0.75

Temperature Limiting

Electronic 24-Step

Temperature Range

60 - 85 F

Vent Control

3-position

Venting Features

Outdoor Vent Control - 3 Positions

Zoneline Features

Random Twist/Length Segment Tangential Blower

Refrigerant Charge (oz.)

34

Freeze Sentinel

Yes

Heat Sentinel

Yes

Heat Pump

Yes

Designed & Assembled in America

appearance

1 item

Color Appearance

Grey White

weights & dimensions

5 items

Approximate Shipping Weight

120 lb

Net Weight

110 lb

Overall Depth

20.8125 in

Overall Height

16 in

Overall Width

42 in

power / ratings

9 items

Cooling - Amperes

6.7/7.1

Cooling - Amperes; F.L. - Cooling

6.1/6.6

Cooling - Amperes; L.R.

31.5

Cooling - Watts

1450/1410

Heating BTUH

14000 / 13800

Heating - Reverse Cycle - Watts

1235/1225

Voltage (MAX)

230 V

Voltage (MIN)

208 V

Heating - Electric - Heater Amps

5.6/6.0

warranty

3 items

Labor Warranty

Limited 5-year sealed system

Warranty Notes

See written warranty for full details

Parts Warranty

Limited 2-year entire appliance

accessories

1 item

Accessories Required for Installation

Outdoor Grille

GS1

1 item

UPC

084691942764

Documents

Quick Specs

PDF

Accessory Guide

PDF

Quick Reference Guide

PDF

Installation Instructions

PDF

Architect and Engineering Manual

PDF
