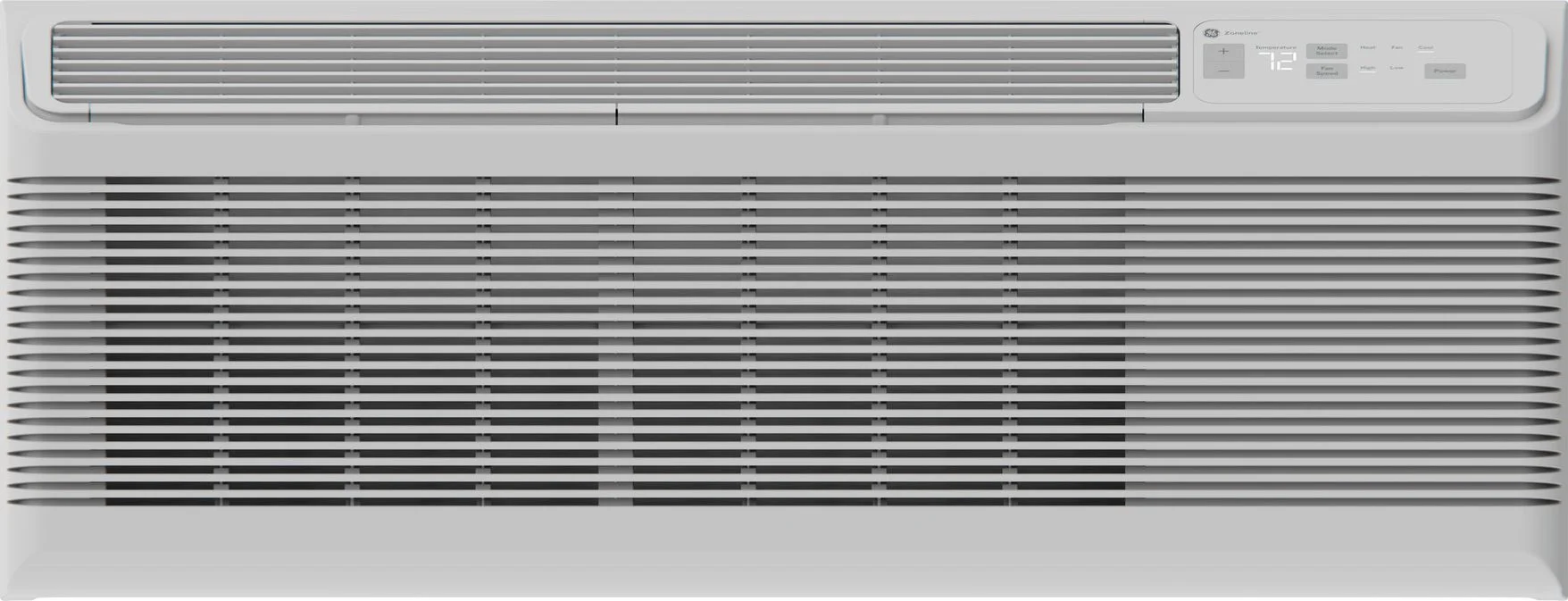

GE GE Zoneline® Heat Pump Fixed Speed Unit with Corrosion Protection 7,000 BTU, 230/208 Volt in Grey White

CFM Indoor Fan High

335

CFM Indoor Fan Low

240

Cooling BTUH (MAX)

7200

Cooling BTUH (MIN)

7,100 Btu

Cooling EER (BTUH / Watt)

13.0 / 13.2

Dehumidification (pts./hr.)

.9 (High Speed)

Vent CFM (high fan at zero ESP)

36.8

Central Desk Control Compatibility

Yes

Chassis Type

Slide-In

Control Type

Tactile touch pad with LED Display

Corrosion Treated

Yes

Discharge Grille

2-position

Electronic Micro Computer Control

Yes

Fan Cycle Switch

Yes

Fan Motor

2

Fan Speed Control

Yes

Fan Speed Selections

Hi/Low Fan Only

Filter Type

Slide-Out

Heat - Cool

Yes

Heating - Reverse Cycle - COP

3.9/4.1

Heating System

Heat Pump With Backup Resistance Heat

Louver Style

Reversible

Manual Vent Control

Hidden

Power Factor

95

Product Type

Packaged Terminal Air Conditioners (PTAC)

Refrigerant Type

R454B

Rotary Compressor

Yes

Sensible Heat Ratio

0.75

Temperature Limiting

Electronic 24-Step

Temperature Range

60 - 85 F

Vent Control

3-position

Venting Features

Outdoor Vent Control - 3 Positions

Zoneline Features

Random Twist/Length Segment Tangential Blower

Refrigerant Charge (oz.)

26.8

Freeze Sentinel

Yes

Heat Sentinel

Yes

Heat Pump

Yes

Color Appearance

Grey White

Approximate Shipping Weight

108 lb

Net Weight

98 lb

Overall Depth

20.8125 in

Overall Height

16 in

Overall Width

42 in

Cooling - Amperes

2.6/2.8

Cooling - Amperes; F.L. - Cooling

2.5/2.7

Cooling - Amperes; L.R.

13.5

Cooling - Watts

550/535

Heating BTUH

6200 / 6200

Heating - Reverse Cycle - Watts

450/445

Voltage (MAX)

230 V

Voltage (MIN)

208 V

Heating - Electric - Heater Amps

2.3/2.5

Labor Warranty

Limited 5-year sealed system

Warranty Notes

See written warranty for full details

Parts Warranty

Limited 2-year entire appliance

Accessories Required for Installation

Outdoor Grille

Designed & Assembled in America

UPC

084691942573
