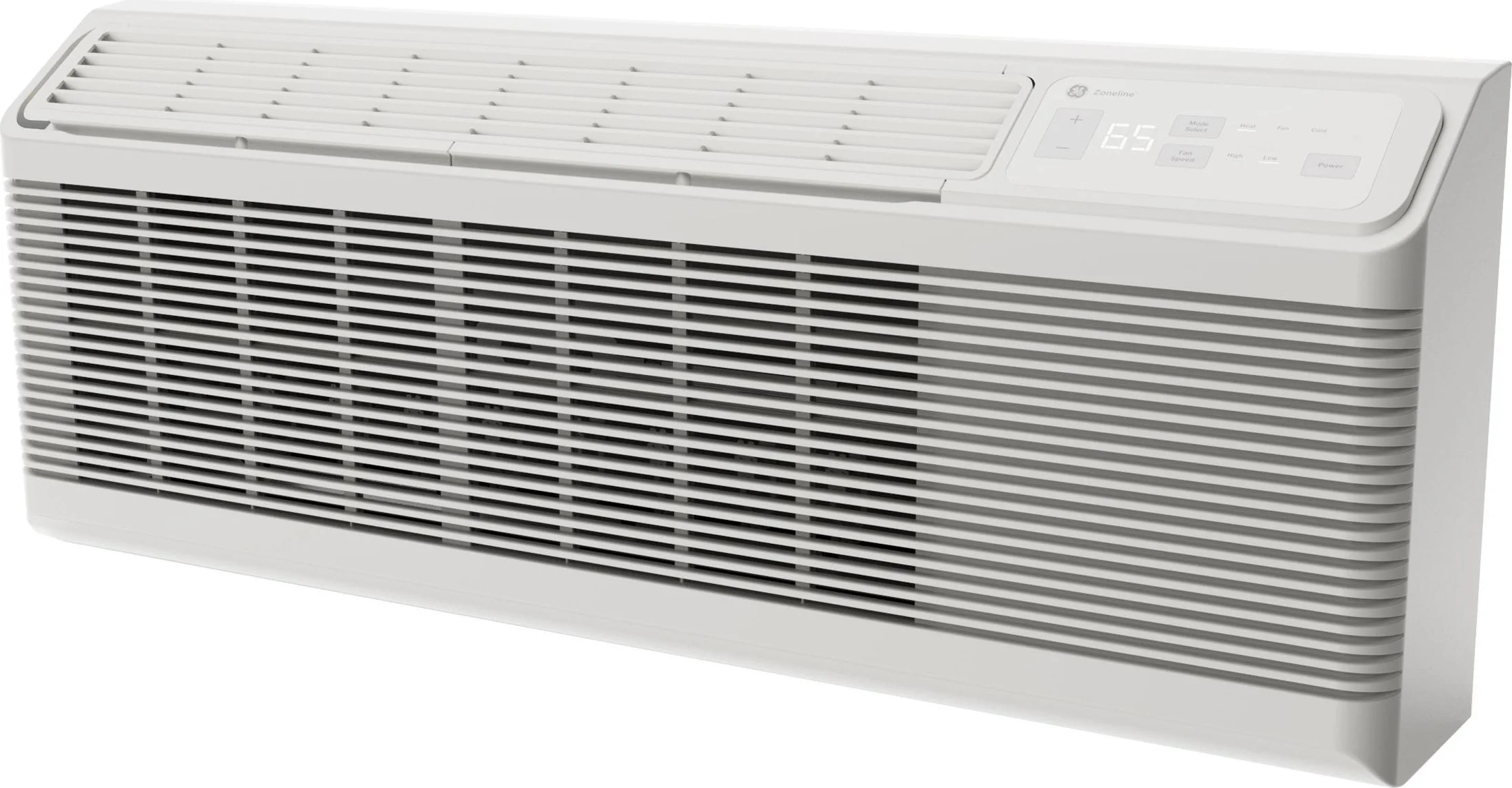

GE Zoneline(R) Cooling and Fixed Speed Unit with Corrosion Protection 15,000 BTU, 230/208 Volt in Gray On White

Name: GE AZES15DCXXA Zoneline(R) Cooling and Fixed Speed Unit with Corrosion Protection 15,000 BTU, 230/208 Volt
Brand: GE
SKU: AZES15DCXXA
Price: 1485.00 USD
Availability: InStock

SKU: AZES15DCXXA

0 Questions & 0 Answers

Weight: 107.00 lbs
Width: 42.00"
Height: 16.00"
Depth: 20.81"
Cooling Capacity: 14800 BTU

GE |Authorized Dealer

Pre-Order

$1,485.00

$37.13

)

color: Gray On White

Designed & Assembled in America

Estimates for:

Protect Your Item

2 Year $75.99

3 Year $115.99

4 Year $143.99

5 Year $163.99

Decline

30-Days Free Returns or Exchanges

PRODUCT DESCRIPTION

R454B - Most environmentally friendly refrigerant on the market
Electronic touch controls with LED display
Quiet Operation - baked on mastic sound barrier
Corrosion protection package
SMC basepan and bulkhead
Electronic temperature limiting
Fresh air vent
Designed & Assembled in America
Date of Manufacture - 2025 or later

Features

Designed & Assembled in America

Date of Manufacture - 2025 or later

capacity

7 items

Cooling BTUH (MAX)

14800 Btu

CFM Indoor Fan Low

330

CFM Indoor Fan High

440

Cooling EER (BTUH / Watt)

10.5 / 10.6

Dehumidification (pts./hr.)

4.5 (High Speed)

Vent CFM (high fan at zero ESP)

44.4

Cooling BTUH (MIN)

14500 Btu

appearance

1 item

Color Appearance

Grey White

power / ratings

7 items

Cooling - Amperes; L.R.

31.5

Hertz

Cooling - Amperes; F.L. - Cooling

6.3/6.7

Cooling - Amperes

6.3/6.8

Cooling - Watts

1400/1365

Voltage (MIN)

208 V

Voltage (MAX)

230 V

warranty

3 items

Warranty Notes

See written warranty for full details

Labor Warranty

Limited 1-year entire appliance
Limited 5-year sealed system

Parts Warranty

Limited 2-year entire appliance

accessories

1 item

Accessories Required for Installation

Outdoor Grille
RAB42 - Wall Case

weights & dimensions

5 items

Overall Width

42 in

Approximate Shipping Weight

117 lb

Overall Height

16 in

Overall Depth

20.8125 in

Net Weight

107 lb

features

29 items

Zoneline Features

"Smart Fan" Fan Cycle Control
Auto Power Recovery
Automatic Indoor Frost Control
Central Desk Control Compatibility
Freeze Sentinel
Heat Sentinel
Random Twist/Length Segment Tangential Blower
Remote Thermostat Compatibility
Universal Heaters

Louver Style

Reversible

Refrigerant Charge (oz.)

Control Type

Standard Microcomputer
Tactile touch pad with LED Display

Discharge Grille

2-position

Fan Speed Selections

Hi/Low Cooling
Hi/Low Fan Only
Hi/Low Heating

Sensible Heat Ratio

0.75

Power Factor

Refrigerant Type

R454B

Product Type

Packaged Terminal Air Conditioners (PTAC)

Filter Type

Rigid Frame
Slide-Out

Manual Vent Control

Hidden

Chassis Type

Slide-In

Fan Motor

Temperature Limiting

Electronic 24-Step

Heat Sentinel

Yes

Fan Speed Control

Yes

Freeze Sentinel

Yes

Temperature Range

60 - 85 F

Corrosion Treated

Yes

Heat - Cool

Yes

Electronic Micro Computer Control

Yes

Fan Cycle Switch

Yes

Central Desk Control Compatibility

Yes

Rotary Compressor

Yes

Vent Control

3-position

Venting Features

Concealed Manual Vent Control
Outdoor Vent Control - 3 Positions
Vent Air Filter

Heating System

Resistance only

Designed & Assembled in America

GS1

3 items

GTIN

00084691942580

EAN

0084691942580

UPC

084691942580

Documents

Quick Specs

PDF

Accessory Guide

PDF

Use and Care Manual

PDF

Quick Reference Guide

PDF

Installation Instructions

PDF

Architect and Engineering Manual

PDF
