PRODUCT DESCRIPTION
Prevents expensive over-cooling or over-heating of the room
Easy to maintain and service
9,600/9,500 BTU
12.0/12.0 EER
2.6 pints/hour
8,200/8,000 BTU
3.6/3.6 COP
409/300
40

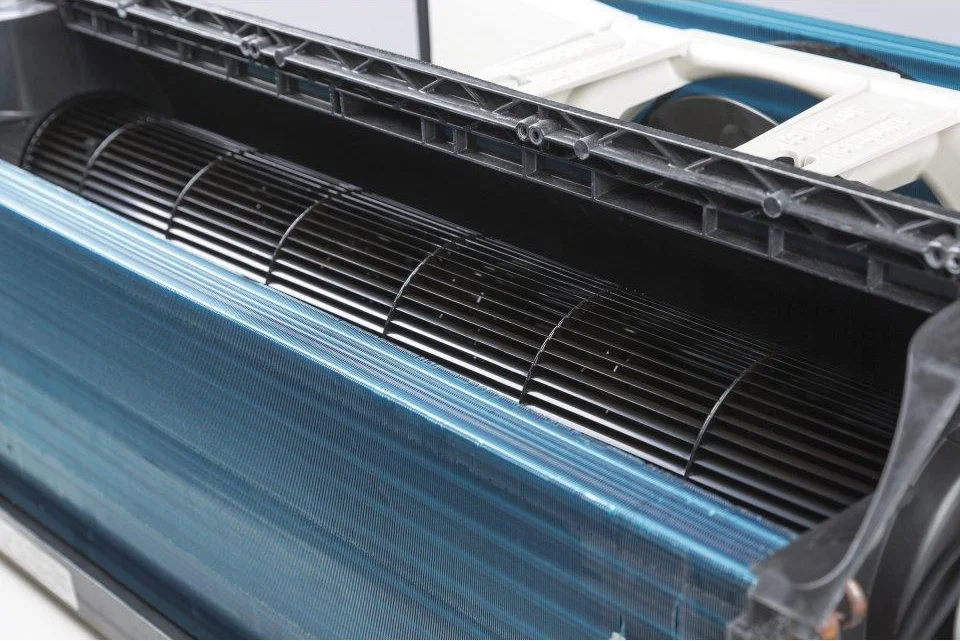

Baked-on mastic sound barrier, cross flow blower and two DC fan motors create less noise to ensure comfort
Minimizes condensate draining from the unit during heat pump operation
Keeps the room from overheating or freezing
Provides supplemental resistance heat in heat pump mode
Features
Simplified structure
Easy to maintain and service
Energy efficiency
12.0/12.0 EER
Quiet operation
Baked-on mastic sound barrier, cross flow blower and two DC fan motors create less noise to ensure comfort
Specifications
Cooling BTUH (MIN)
9500.0 Btu
Cooling BTUH (MAX)
9600.0 Btu
Cooling EER (BTUH / Watt)
12.0/12.0
CFM Indoor Fan High
420
CFM Indoor Fan Low
300
Dehumidification (pts./hr.)
2.6
Heating - Reverse Cycle - BTUH
8200/8000
Vent CFM (high fan at zero ESP)
40
Chassis Type
Slide-In
Control Type
Standard MicrocomputerTactile touch pad with LED Display
Discharge Grille
2-position
Electronic Micro Computer Control
Yes
Fan Cycle Switch
Yes
Fan Motor
2
Fan Speed Control
Yes
Fan Speed Selections
Hi/Low CoolingHi/Low Fan OnlyHi/Low Heating
Filter Type
Rigid FrameSlide-Out
Heat - Cool
Yes
Internal Condensate Removal (ICR)
Yes
Louver Style
Reversible
Manual Vent Control
Hidden
Rotary Compressor
Yes
Temperature Limiting
Electronic 7-Step
Vent Control
3-position
Venting Features
Concealed Manual Vent ControlOutdoor Vent Control - 3 PositionsVent Air Filter
Zoneline Features
Heat SentinelPower Cord (LDCI) includedProportional - Integral ID AirflowQuick Heat RecoveryRandom Twist/Length Segment Tangential BlowerRemote Thermostat CompatibilityReverse Cycle DefrostUniversal HeatersWeather Protected Electrical Components3-Stage Heating DesignAuto Power RecoveryAutomatic Emergency HeatAutomatic Indoor Frost ControlCentral Desk Control CompatibilityFreeze SentinelHeat Pump with Resistance Heat BackupHeat Pump with Supplemental Resistance Heat
Heating System
Heat Pump
Product Type
Packaged Terminal Air Conditioners (PTAC)
Temperature Range
60 - 85 F
Sensible Heat Ratio
68%
Cooling - Amperes; F.L. - Cooling
3.6/3.9
Cooling - Amperes; L.R.
21.0
Cooling - Watts
800/790
Heating - Reverse Cycle - Amps
3.0/3.2
Heating - Reverse Cycle - COP
3.6/3.6
Heating - Reverse Cycle - Watts
655/650
Power Factor
98
Voltage (MIN)
208.0 V
Voltage (MAX)
230.0 V
Parts Warranty
Limited 1-year entire applianceLimited 5-year sealed refrigerating system
Labor Warranty
Limited 1-year entire applianceLimited 5-year sealed refrigerating system
Warranty Notes
See written warranty for full details
Net Weight
110.0 lb
Overall Depth
20.8125 in
Overall Height
16.0 in
Overall Width
42.0 in
