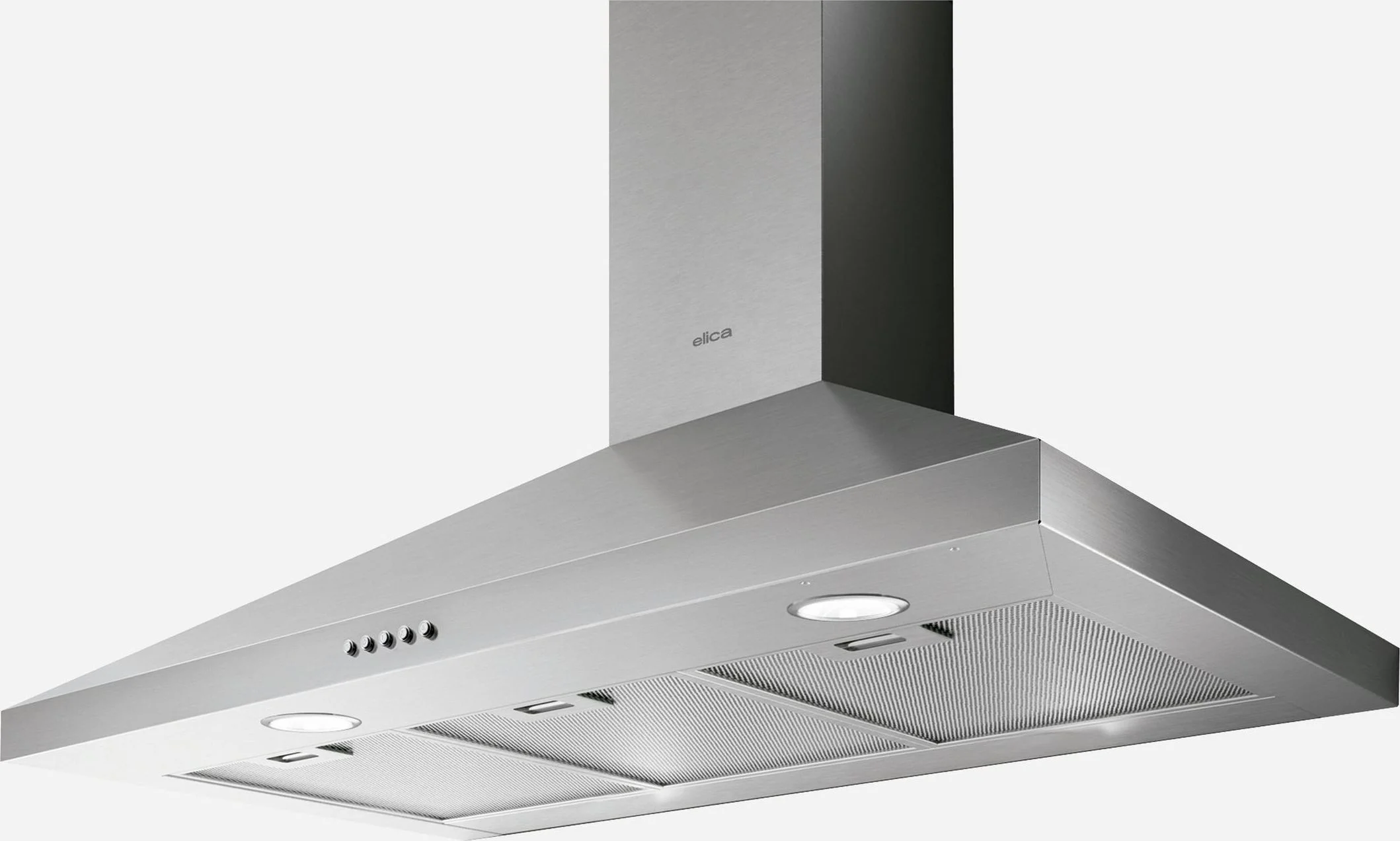

Elica 30" Ducted Hood in Stainless Steel

Width

24 , 30 , 36

Sones

5.9

Extraction capacity

400 CFM

Warranty

3 Year Parts and In-Home Labor Warranty. Third year awarded after product registration on www.elica.com

SHIPPING WEIGHT (kg)

16.80

NET WEIGHT (kg)

12.20

CARTON LENGHT (mm)

877.00

CARTON HEIGHT (mm)

675.00

CARTON WIDTH (mm)

369.00

VOLUMEN (M3)

0.20

SHIPPING WEIGHT

37.04

NET WEIGHT

26.90

CARTON LENGHT

34.53

CARTON HEIGHT

26.57

CARTON WIDTH

14.53

COUNTRY OF MANUFACTURE

MX

QTY PACKAGE

1.00

INTENDED APPROVED USE

Residential use

Finish

Stainless Steel

Color

inox

Type of Ventilation

Convertible

HOODS FEATURES

3x layer mesh, Led light

WIDTH (IN)

30"

WIDTH (CM)

69.00

AIRFLOW (M3/H)

680.00

CFM (MAX)

400.00

db (min)

15.00

db (max)

51.00

SONES

0.4 - 5.0

EXHAUST VERSION

Convertible with Kit

EXHAUST SIZE

Round 6"

DUCT SHAPE

Round

EXHAUST LOCATION

Top Only

RECTANGULAR DUCTH HEIGHT

NA

RECTANGULAR DUCT WIDTH

NA

Round duct diameter

6"

ELECTRIC (VOLTS)

120 V/60 Hz

AMPERAGE

2.2 A

HERTZ

60.00

WATTS

265.00

LIGHTING

LED 2 x 2.1 ww 3000 KK

BULB TYPE

LED

BULB INCLUDED

YES

NUMBER OF LIGHTS

2.00

BULB WATTS

2.10

KELVINS

3000.00

GREASE FILTER TYPE

Dishwasher-Safe, Anodized Aluminum Mesh Filter

DISHWASHERSAFE FILTER

YES

FILTER MATERIAL

Aluminum Mesh

BLOWER TYPE

Interior Unit

CONTROL TYPE

Backlit Electronic Push Button

SPEED CONTROL

YES

NUMBER OF SPEEDS

3.00

REMOTE CONTROL

NO

POWER SOURCE

Hardwired

OUTDOOR USE

NO

SMUDGE RESISTANT

NO

RECIRCULATION KIT NEEDED

YES

CFM REDUCTION

Yes w/kit

DIMENSIONS

76 x 50 x 72

DIMENSIONSinches

ADJUSTABLE HEIGHT

YES

Minimum Overall Height - Top to Bottom

28 3/8"

Maximum Overall Height - Top to Bottom

42 1/8"

Overall Height - Top to Bottom

28 3/8"-42 1/8"

Overall Width - Side to Side2

30"

Overall Depth - Front to Back

19 5/8"

Hood Height

10 1/4"

Minimum Compatible Ceiling Height

7'5"

Maximum Compatible Ceiling Height

9'6"

Minimum Height Above Cooktop (ELECTRIC)

= 24

Minimum Height Above Cooktop (GAS)

= 30

Maximum Height Above Cooktop

36"

Chimney Width - Side to Side

8 3/16"

Chimney Depth - Front to Back

7 3/16"

Chimney Height - Top to Bottom

31 7/8

RECIRCULATION KIT NUMBER

KIT02766

CHIMNEY EXTENSION NUMBER

KIT02762

TELESCOPIC DUCT COVER

-

DUCT TRANSITION

-

TRANSITION REDUCER KIT

-

BACKDRAFT DAMPER

-

NON RETURN VALVE

-

UPGRADE FILTER

GF04YB

CFM REDUCTION KIT

KIT0175561

BACKSPLASH KIT

-

INTERNAL BLOWER

-

INLINE BLOWER

-

EXTERNAL BLOWER

-

INLINE BLOWER SHELL KIT

-

EXTERNAL BLOWER SHELL KIT

-

HEAT LAMPS

-

SPACER/LINER

-

WALL MOUNT BRACKET

-

HIGH CEILING EXTENSION KIT

-

REMOTE CONTROL KIT

-

cUL listed

YES

UL listed

YES

AHAM verified

YES

TITLE 24

YES

Prop65Disclosure

YES

ENERGY STAR

NO

WIFI CAPABLE

NO

COMERCIAL USE APPROVED

NO

ADA COMPLIANT

NO

APP CAPABLE

NO

VENTILATION DIRECTION

HORIZONTAL

SMART COMPATIBLE

NO

FITLER INDICATOR LIGHT

NO

HEAT SENSOR

NO

CHAROCAL FILTER

YES

CERTIFICADO NOM

NA

DIMENSIONS inches

30" x 19 11/16" x 28 3/8"

Prop65 Disclosure

YES

GTIN

00190603001891

EAN

0190603001891

UPC

190603001891

3x layer mesh

Led light
