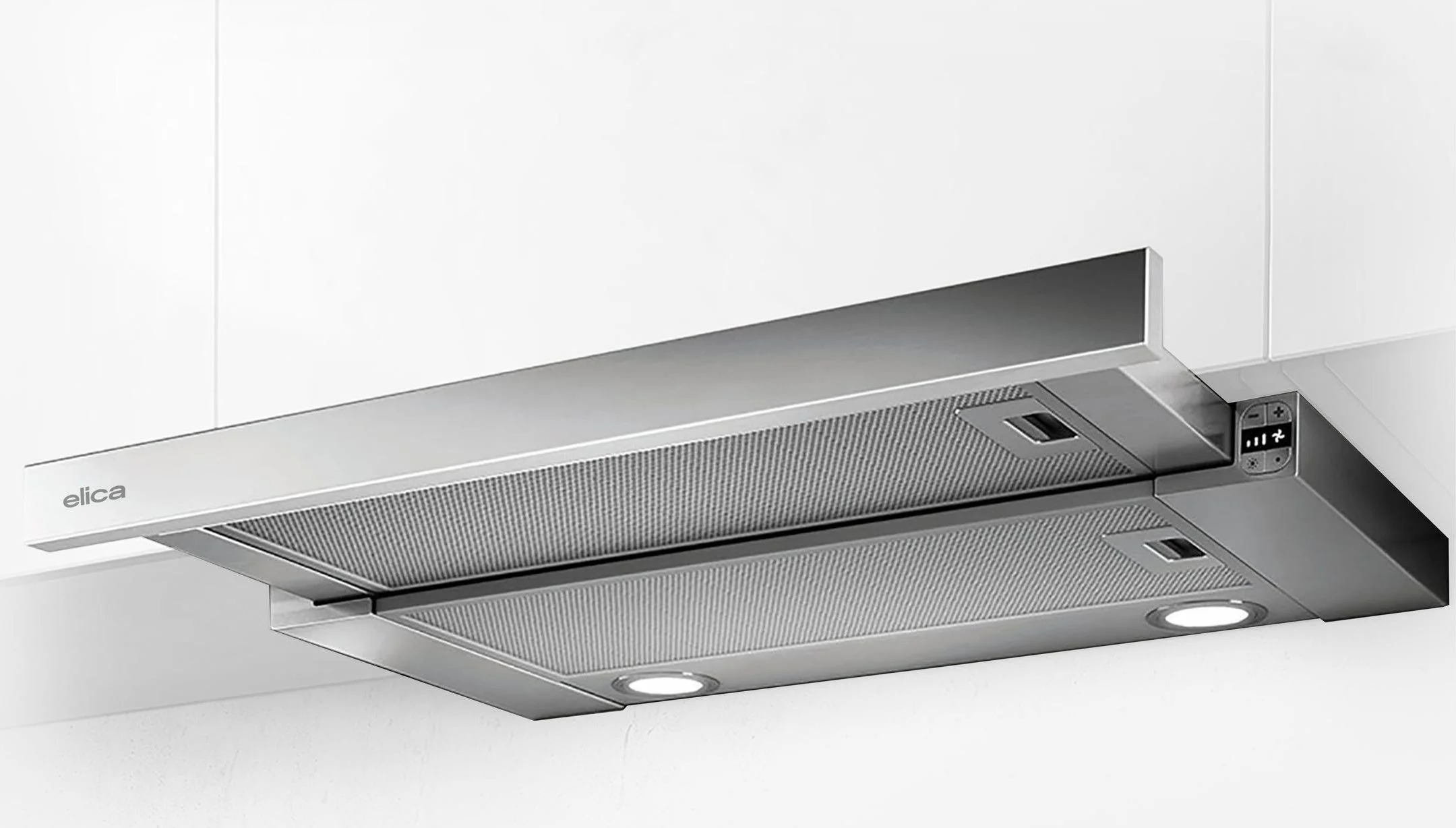

Elica 36" Ducted Hood in Stainless Steel

Width

24 , 30 , 36

Sones

5.9

Extraction capacity

400 CFM

Warranty

3 Year Parts and In-Home Labor Warranty. Third year awarded after product registration on www.elica.com

SHIPPING WEIGHT (kg)

14.70

NET WEIGHT (kg)

12.40

CARTON LENGHT (mm)

354.00

CARTON HEIGHT (mm)

354.00

CARTON WIDTH (mm)

934.00

VOLUMEN (M3)

0.10

SHIPPING WEIGHT

32.41

NET WEIGHT

27.34

CARTON LENGHT

13.94

CARTON HEIGHT

13.94

CARTON WIDTH

36.77

COUNTRY OF MANUFACTURE

IT

QTY PACKAGE

1.00

INTENDED APPROVED USE

Residential use

Finish

Stainless Steel

Color

inox

Type of Ventilation

Convertible

HOODS FEATURES

Led light

WIDTH (IN)

36"

WIDTH (CM)

90.00

AIRFLOW (M3/H)

680.00

CFM (MAX)

400.00

db (min)

15.00

db (max)

51.00

SONES

0.4 - 5.0

EXHAUST VERSION

Convertible with Kit

EXHAUST SIZE

Round 6"

DUCT SHAPE

Round

EXHAUST LOCATION

Top

RECTANGULAR DUCTH HEIGHT

NA

RECTANGULAR DUCT WIDTH

NA

Round duct diameter

6"

ELECTRIC (VOLTS)

120 V/60 Hz

AMPERAGE

2.3 A

HERTZ

60.00

WATTS

245.00

LIGHTING

LED 2 x 2.1 ww 3000 KK

BULB TYPE

LED

BULB INCLUDED

YES

NUMBER OF LIGHTS

2.00

BULB WATTS

2.10

KELVINS

3000.00

GREASE FILTER TYPE

Dishwasher-Safe, Anodized Aluminum Mesh Filter

DISHWASHERSAFE FILTER

YES

FILTER MATERIAL

Aluminum Mesh

BLOWER TYPE

Interior Unit

CONTROL TYPE

Hidden Electronic Touch Controls

SPEED CONTROL

YES

NUMBER OF SPEEDS

3.00

REMOTE CONTROL

NO

POWER SOURCE

Power Cord

OUTDOOR USE

NO

SMUDGE RESISTANT

NO

RECIRCULATION KIT NEEDED

YES

CFM REDUCTION

Yes w/kit

DIMENSIONS

91 x 28 x 30

DIMENSIONSinches

ADJUSTABLE HEIGHT

NO

Minimum Overall Height - Top to Bottom

1 9/16"

Maximum Overall Height - Top to Bottom

12 5/16"

Overall Height - Top to Bottom

1 9/16"

Overall Width - Side to Side2

36"

Overall Depth - Front to Back

11-17"

Hood Height

1 9/16"

Minimum Compatible Ceiling Height

NA

Maximum Compatible Ceiling Height

NA

Minimum Height Above Cooktop (ELECTRIC)

= 24

Minimum Height Above Cooktop (GAS)

= 30

Maximum Height Above Cooktop

36"

Chimney Width - Side to Side

NA

Chimney Depth - Front to Back

NA

Chimney Height - Top to Bottom

NA

RECIRCULATION KIT NUMBER

CFC0038668/DF01EA

CHIMNEY EXTENSION NUMBER

NA

TELESCOPIC DUCT COVER

-

DUCT TRANSITION

-

TRANSITION REDUCER KIT

-

BACKDRAFT DAMPER

-

NON RETURN VALVE

-

UPGRADE FILTER

-

CFM REDUCTION KIT

KIT02748

BACKSPLASH KIT

-

INTERNAL BLOWER

-

INLINE BLOWER

-

EXTERNAL BLOWER

-

INLINE BLOWER SHELL KIT

-

EXTERNAL BLOWER SHELL KIT

-

HEAT LAMPS

-

SPACER/LINER

-

WALL MOUNT BRACKET

-

HIGH CEILING EXTENSION KIT

-

REMOTE CONTROL KIT

-

cUL listed

NA

UL listed

NA

AHAM verified

NA

TITLE 24

NA

Prop65Disclosure

YES

ENERGY STAR

NO

WIFI CAPABLE

NO

COMERCIAL USE APPROVED

NO

ADA COMPLIANT

NO

APP CAPABLE

NO

VENTILATION DIRECTION

HORIZONTAL

SMART COMPATIBLE

NO

FITLER INDICATOR LIGHT

NO

HEAT SENSOR

NO

CHAROCAL FILTER

YES

CERTIFICADO NOM

Activo

DIMENSIONS inches

36" x 11-17" x 12 5/16"

Prop65 Disclosure

YES

GTIN

00190603004120

EAN

0190603004120

UPC

190603004120

Led light
