PRODUCT DESCRIPTION

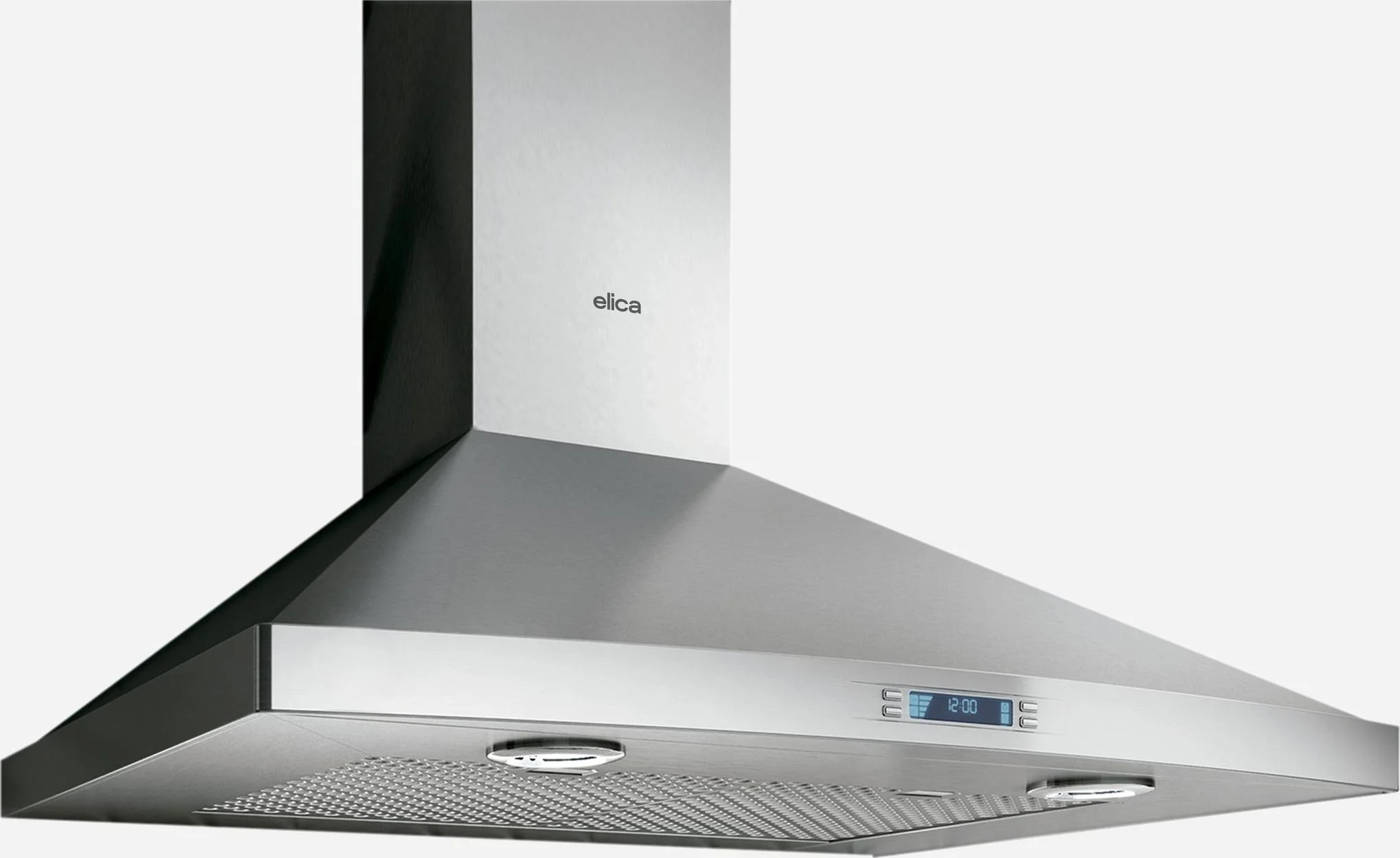

The rounded front, beautifully sloping angles and stainless steel finish of Pilato make a striking visual statement.
Available in 30 or 36 widths, Pilato features include a powerful 600 CFM blower, LED lighting with 2 light intensities, dishwasher-safe stainless steel microhole filters and multi-function electronic controls with LCD display that deliver convenience and safety.
Designed for standard ducted installation, Pilato can also be installed as a recirculating system using the Recirculating Kit, available as an accessory.
Specifications
Width
30 , 36
Sones
7
Extraction capacity
600 CFM
Warranty
3 Year Parts and In-Home Labor Warranty. Third year awarded after product registration on www.elica.com
SHIPPING WEIGHT (kg)
19.20
NET WEIGHT (kg)
15.00
CARTON LENGHT (mm)
877.00
CARTON HEIGHT (mm)
675.00
CARTON WIDTH (mm)
369.00
VOLUMEN (M3)
0.20
SHIPPING WEIGHT
42.33
NET WEIGHT
33.07
CARTON LENGHT
34.53
CARTON HEIGHT
26.57
CARTON WIDTH
14.53
COUNTRY OF MANUFACTURE
MX
QTY PACKAGE
1.00
INTENDED APPROVED USE
Residential use
Finish
Stainless Steel
Color
inox
Type of Ventilation
Convertible
HOODS FEATURES
Led light, Dim light, Top performance, CFM reduction system, Hush system
WIDTH (IN)
30"
WIDTH (CM)
76.00
AIRFLOW (M3/H)
1020.00
CFM (MAX)
600.00
db (min)
36.00
db (max)
57.00
SONES
1.7 - 7.5
EXHAUST VERSION
Convertible with Kit
EXHAUST SIZE
Round 6"
DUCT SHAPE
Round
EXHAUST LOCATION
Top Only
RECTANGULAR DUCTH HEIGHT
NA
RECTANGULAR DUCT WIDTH
NA
Round duct diameter
6"
ELECTRIC (VOLTS)
120 V/60 Hz
AMPERAGE
3.9 A
HERTZ
60.00
WATTS
0.00
LIGHTING
LED 2 x 6.5 ww 4000 KK
BULB TYPE
LED
BULB INCLUDED
YES
NUMBER OF LIGHTS
2.00
BULB WATTS
6.50
KELVINS
4000.00
GREASE FILTER TYPE
Dishwasher-Safe, Stainless Steel Microhole Filter
DISHWASHERSAFE FILTER
YES
FILTER MATERIAL
Stainless Steel
BLOWER TYPE
Interior Unit
CONTROL TYPE
Multi-function Electronic with LCD Display
SPEED CONTROL
YES
NUMBER OF SPEEDS
3 + booster
REMOTE CONTROL
NO
POWER SOURCE
Hardwired
OUTDOOR USE
NO
SMUDGE RESISTANT
NO
RECIRCULATION KIT NEEDED
YES
CFM REDUCTION
Yes
DIMENSIONS
76 x 55 x 73
DIMENSIONSinches
ADJUSTABLE HEIGHT
YES
Minimum Overall Height - Top to Bottom
28 3/8"
Maximum Overall Height - Top to Bottom
42 1/16"
Overall Height - Top to Bottom
28 3/8"-42 1/16
Overall Width - Side to Side2
30"
Overall Depth - Front to Back
21 1/2"
Hood Height
10"
Minimum Compatible Ceiling Height
7'5"
Maximum Compatible Ceiling Height
9'5"
Minimum Height Above Cooktop (ELECTRIC)
= 24
Minimum Height Above Cooktop (GAS)
= 30
Maximum Height Above Cooktop
36"
Chimney Width - Side to Side
8 1/8"
Chimney Depth - Front to Back
7 1/4"
Chimney Height - Top to Bottom
32 1/9
RECIRCULATION KIT NUMBER
KIT02766
CHIMNEY EXTENSION NUMBER
KIT02762
TELESCOPIC DUCT COVER
-
DUCT TRANSITION
-
TRANSITION REDUCER KIT
-
BACKDRAFT DAMPER
-
NON RETURN VALVE
-
UPGRADE FILTER
-
CFM REDUCTION KIT
-
BACKSPLASH KIT
-
INTERNAL BLOWER
-
INLINE BLOWER
-
EXTERNAL BLOWER
-
INLINE BLOWER SHELL KIT
-
EXTERNAL BLOWER SHELL KIT
-
HEAT LAMPS
-
SPACER/LINER
-
WALL MOUNT BRACKET
-
HIGH CEILING EXTENSION KIT
-
REMOTE CONTROL KIT
-
cUL listed
YES
UL listed
YES
AHAM verified
YES
TITLE 24
YES
Prop65Disclosure
YES
ENERGY STAR
NO
WIFI CAPABLE
NO
COMERCIAL USE APPROVED
NO
ADA COMPLIANT
NO
APP CAPABLE
NO
VENTILATION DIRECTION
HORIZONTAL
SMART COMPATIBLE
NO
FITLER INDICATOR LIGHT
NO
HEAT SENSOR
NO
CHAROCAL FILTER
YES
CERTIFICADO NOM
NA
DIMENSIONS inches
30" x 21 1/2" x 28 3/8"
Prop65 Disclosure
YES
GTIN
00190603000559
EAN
0190603000559
UPC
190603000559
Led light
Dim light
Top performance
CFM reduction system
Hush system
