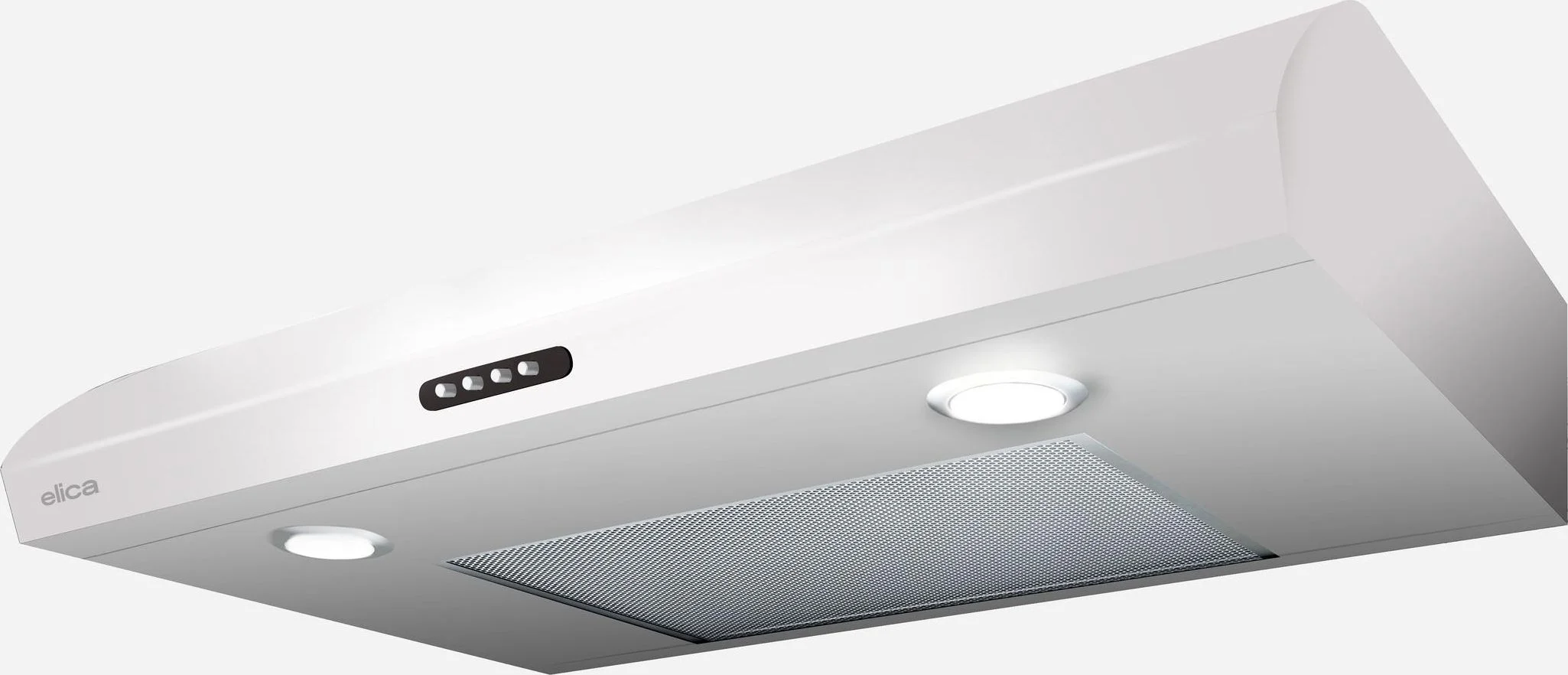

Elica 30" Ductless Hood in White

Width

30 , 36

Sones

4.8

Extraction capacity

280 CFM

Warranty

3 Year Parts and In-Home Labor Warranty. Third year awarded after product registration on www.elica.com

SHIPPING WEIGHT (kg)

8.80

NET WEIGHT (kg)

7.80

CARTON LENGHT (mm)

173.00

CARTON HEIGHT (mm)

536.00

CARTON WIDTH (mm)

803.00

VOLUMEN (M3)

0.10

SHIPPING WEIGHT

19.40

NET WEIGHT

17.20

CARTON LENGHT

6.81

CARTON HEIGHT

21.10

CARTON WIDTH

31.61

COUNTRY OF MANUFACTURE

MX

QTY PACKAGE

1.00

INTENDED APPROVED USE

Residential use

Finish

White

Color

white matte

Type of Ventilation

Convertible

HOODS FEATURES

3x layer mesh, Led light

WIDTH (IN)

30"

WIDTH (CM)

76.00

AIRFLOW (M3/H)

475.00

CFM (MAX)

280.00

db (min)

32.00

db (max)

51.00

SONES

1.3 - 4.9

EXHAUST VERSION

Convertible with Kit

EXHAUST SIZE

Rectangular 10 x 3 1/4" or round 7" (sold separately)

DUCT SHAPE

Rectangular or round (sold separately)

EXHAUST LOCATION

Top or Rear

RECTANGULAR DUCTH HEIGHT

10"

RECTANGULAR DUCT WIDTH

3.25

Round duct diameter

7"

ELECTRIC (VOLTS)

120 V/60 Hz

AMPERAGE

1.1 A

HERTZ

60.00

WATTS

210.00

LIGHTING

LED 2 x 2.1 ww 3000 KK

BULB TYPE

LED

BULB INCLUDED

YES

NUMBER OF LIGHTS

2.00

BULB WATTS

2.10

KELVINS

3000.00

GREASE FILTER TYPE

Dishwasher-Safe, Anodized Aluminum Mesh Filter

DISHWASHERSAFE FILTER

YES

FILTER MATERIAL

Aluminum Mesh

BLOWER TYPE

Interior Unit

CONTROL TYPE

Backlit Electronic Push Button

SPEED CONTROL

YES

NUMBER OF SPEEDS

3.00

REMOTE CONTROL

NO

POWER SOURCE

Hardwired

OUTDOOR USE

NO

SMUDGE RESISTANT

NO

RECIRCULATION KIT NEEDED

YES

CFM REDUCTION

NA

DIMENSIONS

76 x 47 x 12.5

DIMENSIONSinches

ADJUSTABLE HEIGHT

NO

Minimum Overall Height - Top to Bottom

5"

Maximum Overall Height - Top to Bottom

4 5/16

Overall Height - Top to Bottom

4 5/16

Overall Width - Side to Side2

30"

Overall Depth - Front to Back

18 5/8"

Hood Height

5"

Minimum Compatible Ceiling Height

NA

Maximum Compatible Ceiling Height

NA

Minimum Height Above Cooktop (ELECTRIC)

= 24

Minimum Height Above Cooktop (GAS)

= 30

Maximum Height Above Cooktop

36"

Chimney Width - Side to Side

NA

Chimney Depth - Front to Back

NA

Chimney Height - Top to Bottom

NA

RECIRCULATION KIT NUMBER

KIT02179

CHIMNEY EXTENSION NUMBER

NA

TELESCOPIC DUCT COVER

-

DUCT TRANSITION

KIT02722

TRANSITION REDUCER KIT

-

BACKDRAFT DAMPER

KIT02723

NON RETURN VALVE

-

UPGRADE FILTER

-

CFM REDUCTION KIT

-

BACKSPLASH KIT

-

INTERNAL BLOWER

-

INLINE BLOWER

-

EXTERNAL BLOWER

-

INLINE BLOWER SHELL KIT

-

EXTERNAL BLOWER SHELL KIT

-

HEAT LAMPS

-

SPACER/LINER

-

WALL MOUNT BRACKET

-

HIGH CEILING EXTENSION KIT

-

REMOTE CONTROL KIT

-

cUL listed

YES

UL listed

YES

AHAM verified

YES

TITLE 24

YES

Prop65Disclosure

YES

ENERGY STAR

NO

WIFI CAPABLE

NO

COMERCIAL USE APPROVED

NO

ADA COMPLIANT

NO

APP CAPABLE

NO

VENTILATION DIRECTION

HORIZONTAL

SMART COMPATIBLE

NO

FITLER INDICATOR LIGHT

NO

HEAT SENSOR

NO

CHAROCAL FILTER

YES

CERTIFICADO NOM

NA

DIMENSIONS inches

30" x 18 5/8" x 5"

Prop65 Disclosure

YES

GTIN

00190603000610

EAN

0190603000610

UPC

190603000610

3x layer mesh

Led light
