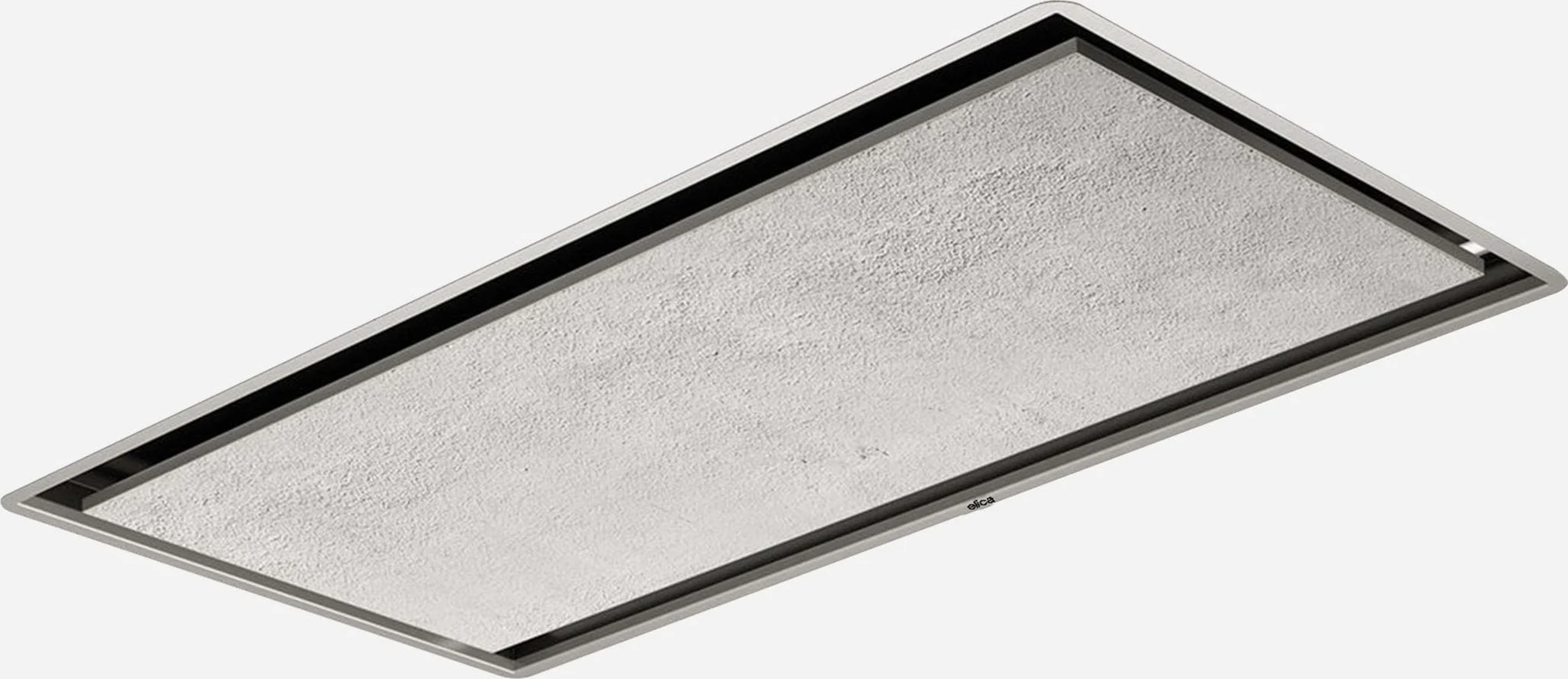

Elica 42" Ducted Hood in Stainless Steel Look Panel Ready

Width

40

Sones

Min 2.1 Max 7

Extraction capacity

600 CFM

Warranty

3 Year Parts and In-Home Labor Warranty. Third year awarded after product registration on www.elica.com

SHIPPING WEIGHT (kg)

30.00

NET WEIGHT (kg)

21.80

CARTON LENGHT (mm)

678.00

CARTON HEIGHT (mm)

385.00

CARTON WIDTH (mm)

1108.00

VOLUMEN (M3)

0.30

SHIPPING WEIGHT

66.14

NET WEIGHT

48.06

CARTON LENGHT

26.69

CARTON HEIGHT

15.16

CARTON WIDTH

43.62

COUNTRY OF MANUFACTURE

PL

QTY PACKAGE

1.00

INTENDED APPROVED USE

Residential use

Finish

Stainless Steel + panel ready

Color

custom

Type of Ventilation

Convertible

HOODS FEATURES

Special materials, Tune white, Long life filter, Dim light, Total integration, Super easy installation, Remote control, Perimeter aspiration

WIDTH (IN)

40"

WIDTH (CM)

100.00

AIRFLOW (M3/H)

1020.00

CFM (MAX)

600.00

db (min)

36.00

db (max)

55.00

SONES

1.8 - 6.8

EXHAUST VERSION

Convertible with Kit

EXHAUST SIZE

Round 6"

DUCT SHAPE

Round

EXHAUST LOCATION

Multidirectional

RECTANGULAR DUCTH HEIGHT

NA

RECTANGULAR DUCT WIDTH

NA

Round duct diameter

6"

ELECTRIC (VOLTS)

120 V/60 Hz

AMPERAGE

4A

HERTZ

60.00

WATTS

578.00

LIGHTING

Dimmable Strip LED 2 x 14 ww 3500 KK

BULB TYPE

Strip LED

BULB INCLUDED

YES

NUMBER OF LIGHTS

2.00

BULB WATTS

14.00

KELVINS

3500.00

GREASE FILTER TYPE

Dishwasher-Safe, Anodized Aluminum Mesh Filter + Perimeter Aspiration

DISHWASHERSAFE FILTER

YES

FILTER MATERIAL

Aluminum Mesh

BLOWER TYPE

Interior Unit

CONTROL TYPE

Remote control

SPEED CONTROL

YES

NUMBER OF SPEEDS

3 + booster

REMOTE CONTROL

YES

POWER SOURCE

Power Cord

OUTDOOR USE

NO

SMUDGE RESISTANT

NO

RECIRCULATION KIT NEEDED

YES

CFM REDUCTION

No

DIMENSIONS

100 x 50 x 30

DIMENSIONSinches

ADJUSTABLE HEIGHT

NO

Minimum Overall Height - Top to Bottom

NA

Maximum Overall Height - Top to Bottom

NA

Overall Height - Top to Bottom

NA

Overall Width - Side to Side2

40"

Overall Depth - Front to Back

19 11/16

Hood Height

11 15/16"

Minimum Compatible Ceiling Height

NA

Maximum Compatible Ceiling Height

10'0"

Minimum Height Above Cooktop (ELECTRIC)

= 24

Minimum Height Above Cooktop (GAS)

= 30

Maximum Height Above Cooktop

9'

Chimney Width - Side to Side

NA

Chimney Depth - Front to Back

NA

Chimney Height - Top to Bottom

NA

RECIRCULATION KIT NUMBER

KIT0167875

CHIMNEY EXTENSION NUMBER

NA

TELESCOPIC DUCT COVER

-

DUCT TRANSITION

-

TRANSITION REDUCER KIT

-

BACKDRAFT DAMPER

-

NON RETURN VALVE

-

UPGRADE FILTER

-

CFM REDUCTION KIT

-

BACKSPLASH KIT

-

INTERNAL BLOWER

-

INLINE BLOWER

-

EXTERNAL BLOWER

-

INLINE BLOWER SHELL KIT

-

EXTERNAL BLOWER SHELL KIT

-

HEAT LAMPS

-

SPACER/LINER

-

WALL MOUNT BRACKET

-

HIGH CEILING EXTENSION KIT

-

REMOTE CONTROL KIT

KIT0121469

cUL listed

YES

UL listed

YES

AHAM verified

YES

TITLE 24

YES

Prop65Disclosure

YES

ENERGY STAR

NO

WIFI CAPABLE

NO

COMERCIAL USE APPROVED

NO

ADA COMPLIANT

YES

APP CAPABLE

NO

VENTILATION DIRECTION

HORIZONTAL

SMART COMPATIBLE

NO

FITLER INDICATOR LIGHT

YES

HEAT SENSOR

NO

CHAROCAL FILTER

YES

CERTIFICADO NOM

Activo

DIMENSIONS inches

40" x 19 11/16 x 11 15/16"

Prop65 Disclosure

YES

GTIN

00190603003987

EAN

0190603003987

UPC

190603003987

Special materials

Tune white

Long life filter

Dim light

Total integration

Super easy installation

Remote control

Perimeter aspiration
