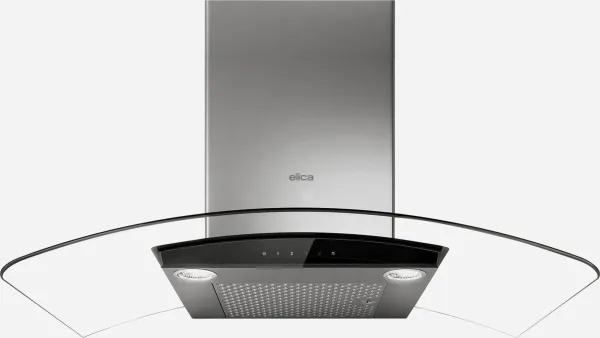

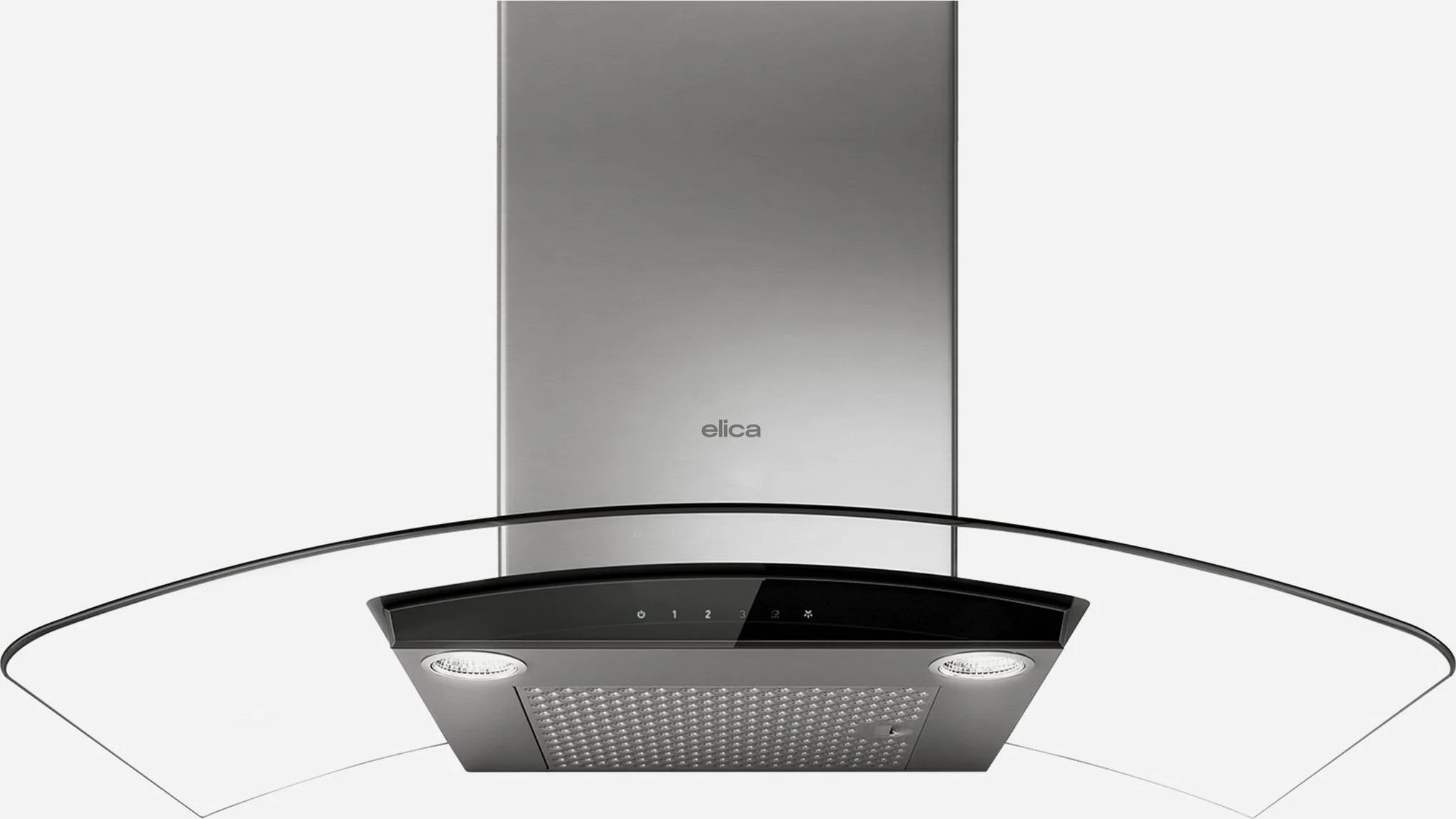

Elica 30" Ducted Hood in Stainless Steel On Black

Width

30 , 36

Sones

7

Extraction capacity

600 CFM

Warranty

3 Year Parts and In-Home Labor Warranty. Third year awarded after product registration on www.elica.com

SHIPPING WEIGHT (kg)

25.60

NET WEIGHT (kg)

19.90

CARTON LENGHT (mm)

870.00

CARTON HEIGHT (mm)

673.00

CARTON WIDTH (mm)

458.00

VOLUMEN (M3)

0.30

SHIPPING WEIGHT

56.44

NET WEIGHT

43.87

CARTON LENGHT

34.25

CARTON HEIGHT

26.50

CARTON WIDTH

18.03

COUNTRY OF MANUFACTURE

MX

QTY PACKAGE

1.00

INTENDED APPROVED USE

Residential use

Finish

Stainless Steel + Black Glass

Color

inox + glass

Type of Ventilation

Convertible

HOODS FEATURES

Led light, Dim light, Top performance, CFM reduction system, Touch controls, Hush system

WIDTH (IN)

30"

WIDTH (CM)

76.00

AIRFLOW (M3/H)

1020.00

CFM (MAX)

600.00

db (min)

36.00

db (max)

55.00

SONES

1.7 - 6.8

EXHAUST VERSION

Convertible with Kit

EXHAUST SIZE

Round 6"

DUCT SHAPE

Round

EXHAUST LOCATION

Top Only

RECTANGULAR DUCTH HEIGHT

NA

RECTANGULAR DUCT WIDTH

NA

Round duct diameter

6"

ELECTRIC (VOLTS)

120 V/60 Hz

AMPERAGE

3.8 A

HERTZ

60.00

WATTS

395.00

LIGHTING

Premium Dimmable LED 2 x 2.1 ww 4000 KK

BULB TYPE

LED

BULB INCLUDED

YES

NUMBER OF LIGHTS

2.00

BULB WATTS

2.10

KELVINS

4000.00

GREASE FILTER TYPE

Dishwasher-Safe, Stainless Steel Microhole Filter

DISHWASHERSAFE FILTER

YES

FILTER MATERIAL

Stainless Steel

BLOWER TYPE

Interior Unit

CONTROL TYPE

Multi-function Electronic with black glass touch display

SPEED CONTROL

YES

NUMBER OF SPEEDS

3 + booster

REMOTE CONTROL

NO

POWER SOURCE

Hardwired

OUTDOOR USE

NO

SMUDGE RESISTANT

NO

RECIRCULATION KIT NEEDED

YES

CFM REDUCTION

Yes

DIMENSIONS

76 x 51 x 75

DIMENSIONSinches

ADJUSTABLE HEIGHT

YES

Minimum Overall Height - Top to Bottom

29 11/16"

Maximum Overall Height - Top to Bottom

54 1/6"

Overall Height - Top to Bottom

29 11/16 -54 1/6

Overall Width - Side to Side2

30"

Overall Depth - Front to Back

19 11/16

Hood Height

3 7/16

Minimum Compatible Ceiling Height

7'10"

Maximum Compatible Ceiling Height

10'5"

Minimum Height Above Cooktop (ELECTRIC)

= 24

Minimum Height Above Cooktop (GAS)

= 30

Maximum Height Above Cooktop

36"

Chimney Width - Side to Side

13

Chimney Depth - Front to Back

10 3/4"

Chimney Height - Top to Bottom

50 47/64 "

RECIRCULATION KIT NUMBER

KIT02721

CHIMNEY EXTENSION NUMBER

KIT0100315

TELESCOPIC DUCT COVER

-

DUCT TRANSITION

-

TRANSITION REDUCER KIT

-

BACKDRAFT DAMPER

-

NON RETURN VALVE

-

UPGRADE FILTER

-

CFM REDUCTION KIT

-

BACKSPLASH KIT

-

INTERNAL BLOWER

-

INLINE BLOWER

-

EXTERNAL BLOWER

-

INLINE BLOWER SHELL KIT

-

EXTERNAL BLOWER SHELL KIT

-

HEAT LAMPS

-

SPACER/LINER

-

WALL MOUNT BRACKET

-

HIGH CEILING EXTENSION KIT

-

REMOTE CONTROL KIT

-

cUL listed

YES

UL listed

YES

AHAM verified

YES

TITLE 24

YES

Prop65Disclosure

YES

ENERGY STAR

NO

WIFI CAPABLE

NO

COMERCIAL USE APPROVED

NO

ADA COMPLIANT

NO

APP CAPABLE

NO

VENTILATION DIRECTION

HORIZONTAL

SMART COMPATIBLE

NO

FITLER INDICATOR LIGHT

NO

HEAT SENSOR

NO

CHAROCAL FILTER

YES

CERTIFICADO NOM

NA

DIMENSIONS inches

30" x 19 11/16 x 29 11/16"

Prop65 Disclosure

YES

GTIN

00190603001686

EAN

0190603001686

UPC

190603001686

Led light

Dim light

Top performance

CFM reduction system

Touch controls

Hush system
