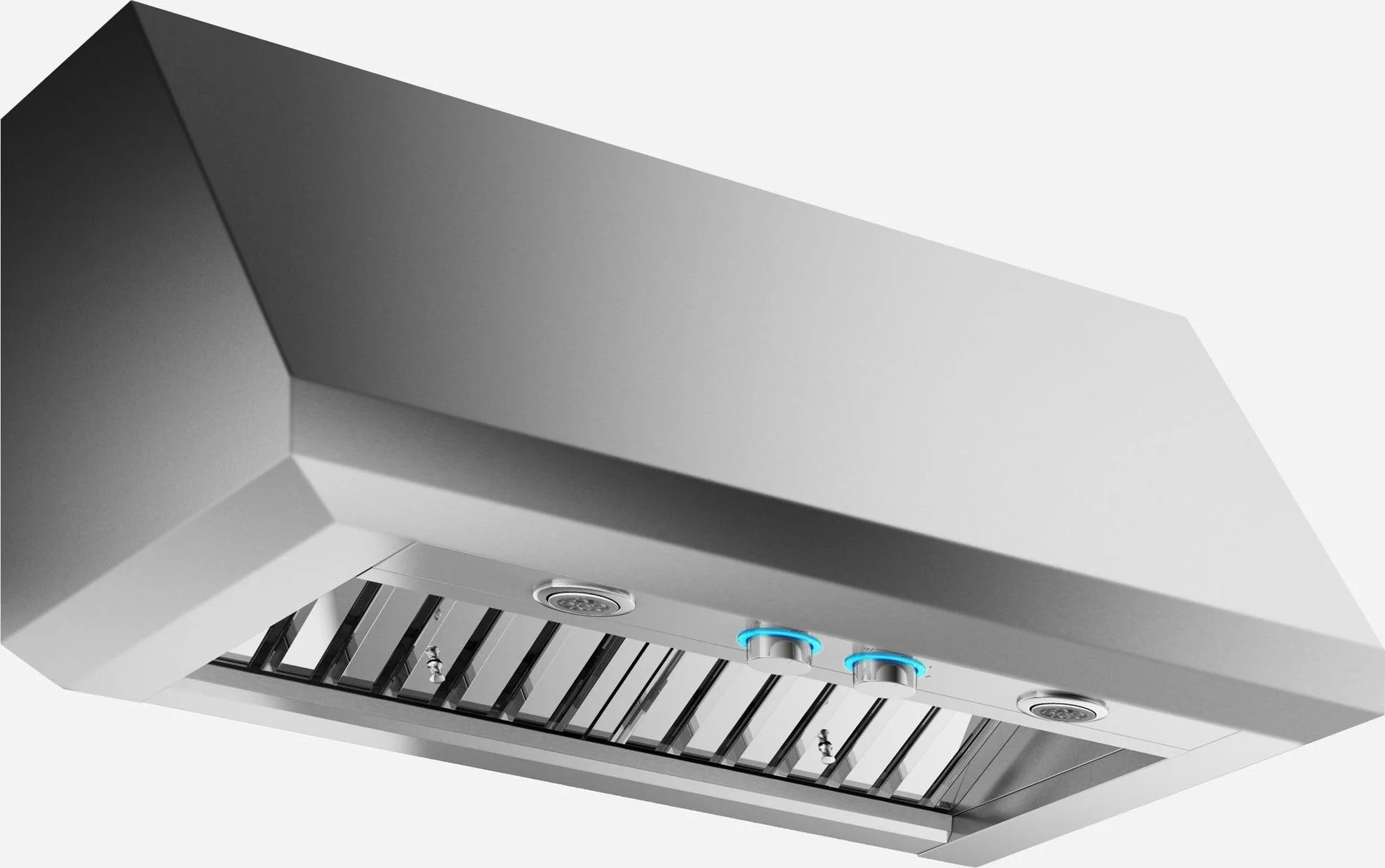

Elica 21" Ducted Wall Mount Range Hood, Pro Series in Stainless Steel

SKU: ECL630S4
Early Summer Sale
  • Width: 21.00"
  • Height: NaN"
  • Weight: NaN lbs
  • Type: Ducted
  • Remote Control: NO
  • Energy Star Rated: NO
  • ADA Compliant: NO
  • Series: Pro Series
Elica Pro Series |Authorized Dealer
In Stock|Only 1 left

$1,649.00

$1,809.00 Save$160.00
Sign in / Sign up to earn 1,649 points (
$41.23
)

color: Stainless Steel

Elica ECL630S4

Estimates for:

Protect Your Item

PRODUCT DESCRIPTION

For homeowners who are passionate about the culinary arts, the seamless welded corner craftsmanship, traditional styling and gleaming stainless steel of Calabria, provides the look and performance expected from a professional-grade range hood. With the new backlit hidden knob controls and traditional ba_x001F_e filters, Calabria is available in 30 , 36 , 42 and 48 widths and equipped with a 600 CFM (30 and 36 ) or 1200 CFM blower (36 , 42 , 48 ) to support all cooking needs. Designed for standard ducted ventilation or recirculating with a kit.

Specifications

general specification

Warranty
3 Year Parts and In-Home Labor Warranty. Third year awarded after product registration on www.elica.com
Fracci n arancelaria
8414600100.00
SHIPPING WEIGHT (kg)
36.60
NET WEIGHT (kg)
30.60
CARTON LENGHT (mm)
892.00
CARTON HEIGHT (mm)
625.00
CARTON WIDTH (mm)
764.00
VOLUMEN (M3)
0.42
SHIPPING WEIGHT (lb)
80.69
NET WEIGHT (lb)
67.46
CARTON LENGHT
35.12
CARTON HEIGHT
24.61
CARTON WIDTH
30.08
COUNTRY OF MANUFACTURE
MX
QTY PACKAGE
1.00
INTENDED APPROVED USE
Residential use
Finish
Stainless Steel
Material
Stainless Steel
Color
inox
Type of Ventilation
Vented
HOODS FEATURES
Hush system, Heat guard, Grease collectors, Professional performance, Seamless look
WIDTH (IN)
30"
WIDTH (CM)
76.00
AIRFLOW (M3/H)
1020.00
CFM (MAX)
600.00
db (min)
35.65
db (max)
56.00
SONES
1.7 - 7.0
EXHAUST VERSION
Convertible with Kit
EXHAUST SIZE
Round 6"
DUCT SHAPE
Round
EXHAUST LOCATION
Top Only
RECTANGULAR DUCTH HEIGHT
NA
RECTANGULAR DUCT WIDTH
NA
Round duct diameter
6"
ELECTRIC (VOLTS)
120.00
AMPERAGE
4.1 A
HERTZ
60.00
WATTS
463.00
LIGHTING
Premium LED 2 x 6.5 ww 3000 KK
BULB TYPE
LED
BULB INCLUDED
YES
NUMBER OF LIGHTS
2.00
BULB WATTS
6.50
KELVINS
3000.00
GREASE FILTER TYPE
Dishwasher-Safe, Professional Stainless Steel Angled Baffle Filter
DISHWASHERSAFE FILTER
YES
FILTER MATERIAL
Stainless Steel
BLOWER TYPE
Interior Unit
CONTROL TYPE
Fully Retractable Rotating Knobs w/ Blue Backlighting
SPEED CONTROL
YES
NUMBER OF SPEEDS
4.00
REMOTE CONTROL
NO
POWER SOURCE
Hardwired
OUTDOOR USE
NO
SMUDGE RESISTANT
NO
PANEL READY
NO
RECIRCULATION KIT NEEDED
NO
CFM REDUCTION
Yes w/kit
DIMENSIONS (CM)
76 x 64 x 46
DIMENSIONS (INCH)
30" x 25" x 18"
ADJUSTABLE HEIGHT
NO
Overall Height - Top to Bottom
18"
Overall Width - Side to Side2
30"
Overall Depth - Front to Back
25"
Hood Height
18"
Min - Max Compatible Ceiling Height (Cover electronic cooking)
NA
Min - Max Compatible Ceiling Height ( Cover gas cooking)
NA
Minimum Height Above Cooktop (ELECTRIC)
24
Minimum Height Above Cooktop (GAS)
30
Maximum Height Above Cooktop
36"
Chimney Width - Side to Side
NA
Chimney Depth - Front to Back
NA
Chimney Height - Top to Bottom
NA
RECIRCULATION KIT
NA
Long Life Recirculating Carbon Filter
NA
Recirculation (400 CFM) 2 round carbon filters
NA
Recirculation (400 CFM) Contains 6 deflector & 3 carbon filters
NA
Recirculation (600 CFM) Contains 6 deflector, 3 flat carbon filters & clips
NA
Recirculation (600 CFM) Contains 6 deflector & 2 carbon filters
NA
Recirculation (600 CFM) 2 round carbon filters
NA
Recirculation (600 CFM) 4 round carbon filters
KIT0192765
Recirculation (600 CFM) 6 round carbon filters
KIT0195736
Recirculation (600 CFM) 6 round Deflector
NA
Recirculation (1200 CFM) 4 round deflector
KIT0192765
Recirculation (1200 CFM) 4 round carbon filters
NA
Recirculation (1200 CFM) (8 round deflector)
KIT0192763
Long Chimney Ext/Chimney extension
NA
Chimney extension Can reach 8 8 - 12 4 (ducted), 9 0 -12 8 (recirculating)
NA
Chimney extension Can reach 7 9 - 10 9 (ducted), 8 1 -11 1 (recirculating)
NA
Chimney extension Reaches ceiling heights 8 5 -12 1 (ducted), 9 1 -12 5 (recirculating)
NA
Chimney extension Reaches ceiling heights 7 5 -10 3 (ducted), 8 2 -10 11 (recirculating)
NA
Long Chimney Extension(6 )
KIT02159
Long Chimney Extension(11 )
NA
Long Chimney Extension(12 )
KIT02160
Long Chimney Extension(13 )
NA
Long Chimney Extension (6 with grates)
KIT0207167
TELESCOPIC DUCT COVER
-
DUCT TRANSITION
6 Round with Backdraft Damper (top and rear)
TRANSITION REDUCER KIT 10 round down to 8 round - attaches to 10 round transition
KIT0185271
BACKDRAFT DAMPER
-
NON RETURN VALVE
-
UPGRADE FILTER
NA
RECIRCULATION DUCT COVERS
NA
RECIRCULATION DEFLECTOR
NA
RECIRCULATION FILTERS
NA
CFM REDUCTION KIT
KIT0185752
BACKSPLASH KIT
KIT0142864
INTERNAL BLOWER
NA
INLINE BLOWER
KIT0154387
EXTERNAL BLOWER
KIT0153054
INLINE BLOWER SHELL KIT (600 CFM)
KIT0205342
INLINE BLOWER SHELL KIT (1200 CFM)
KIT0179549
EXTERNAL BLOWER SHELL KIT
KIT0179547
HEAT LAMPS
KIT0155106
SPACER/LINER
NA
Hood Liner for 30
NA
Hood Liner for 36
NA
Hood Liner for 48"
NA
WALL MOUNT BRACKET
NA
HIGH CEILING EXTENSION KIT
NA
REMOTE CONTROL KIT
NA
Duct cover extension 6
NA
Duct cover extension 18
NA
ELECTRONIC CFM
KIT0185752
REDUCTION BYPASS
KIT0185099
ETL
YES
UL listed
YES
AHAM verified
NO
TITLE 24
NO
Prop65 Disclosure
YES
ENERGY STAR
NO
WIFI CAPABLE
NO
COMERCIAL USE APPROVED
NO
ADA COMPLIANT
NO
APP CAPABLE
NO
VENTILATION DIRECTION
HORIZONTAL
SMART COMPATIBLE
NO
FITLER INDICATOR LIGHT
NO
HEAT SENSOR
YES
CHAROCAL FILTER
NO
VERSION ADVANCES
TOP & REAR
NOM CERTIFICATION
NA

GS1

GTIN
00190603001945
EAN
0190603001945
UPC
190603001945
