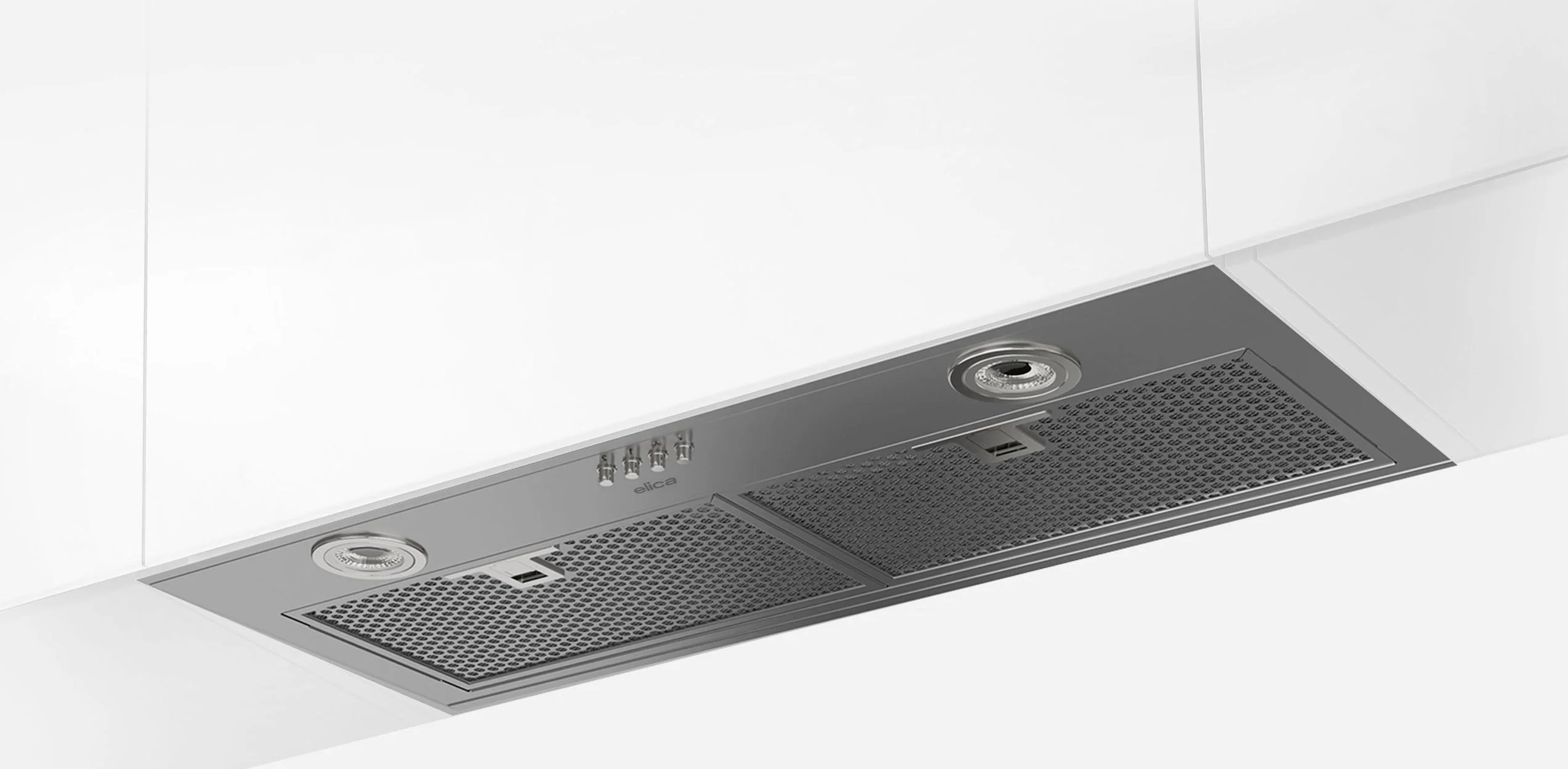

Elica 30" Ductless Hood in Stainless Steel

Width

30

Sones

5.9

Extraction capacity

400 CFM

Warranty

3 Year Parts and In-Home Labor Warranty. Third year awarded after product registration on www.elica.com

SHIPPING WEIGHT (kg)

15.20

NET WEIGHT (kg)

11.00

CARTON LENGHT (mm)

389.00

CARTON HEIGHT (mm)

426.00

CARTON WIDTH (mm)

837.00

VOLUMEN (M3)

0.10

SHIPPING WEIGHT

33.51

NET WEIGHT

24.25

CARTON LENGHT

15.31

CARTON HEIGHT

16.77

CARTON WIDTH

32.95

COUNTRY OF MANUFACTURE

MX

QTY PACKAGE

1.00

INTENDED APPROVED USE

Residential use

Finish

Stainless Steel

Color

inox

Type of Ventilation

Convertible

HOODS FEATURES

Led light

WIDTH (IN)

30"

WIDTH (CM)

76.00

AIRFLOW (M3/H)

0.00

CFM (MAX)

400.00

db (min)

11.00

db (max)

51.00

SONES

0.3 - 5.0

EXHAUST VERSION

Convertible with Kit

EXHAUST SIZE

Round 6"

DUCT SHAPE

Round

EXHAUST LOCATION

Top Only

RECTANGULAR DUCTH HEIGHT

NA

RECTANGULAR DUCT WIDTH

NA

Round duct diameter

6"

ELECTRIC (VOLTS)

120 V/60 Hz

AMPERAGE

2.2 A

HERTZ

60.00

WATTS

260.00

LIGHTING

LED 2 x 6.5 ww 3000 KK

BULB TYPE

LED

BULB INCLUDED

YES

NUMBER OF LIGHTS

2.00

BULB WATTS

6.50

KELVINS

3000.00

GREASE FILTER TYPE

Dishwasher-safe, Aluminum Mesh + Stainless Steel Layer

DISHWASHERSAFE FILTER

YES

FILTER MATERIAL

Stainless Steel

BLOWER TYPE

Interior Unit

CONTROL TYPE

Mechanical Push Button

SPEED CONTROL

YES

NUMBER OF SPEEDS

3.00

REMOTE CONTROL

NO

POWER SOURCE

Power Cord

OUTDOOR USE

NO

SMUDGE RESISTANT

NO

RECIRCULATION KIT NEEDED

YES

CFM REDUCTION

Yes w/kit

DIMENSIONS

76 x 30 x 24

DIMENSIONSinches

ADJUSTABLE HEIGHT

NO

Minimum Overall Height - Top to Bottom

9 1/2"

Maximum Overall Height - Top to Bottom

14 1/2

Overall Height - Top to Bottom

9 1/2"

Overall Width - Side to Side2

30"

Overall Depth - Front to Back

11 15/16

Hood Height

9 1/2"

Minimum Compatible Ceiling Height

NA

Maximum Compatible Ceiling Height

NA

Minimum Height Above Cooktop (ELECTRIC)

= 24

Minimum Height Above Cooktop (GAS)

= 30

Maximum Height Above Cooktop

36"

Chimney Width - Side to Side

NA

Chimney Depth - Front to Back

NA

Chimney Height - Top to Bottom

NA

RECIRCULATION KIT NUMBER

KIT02770

CHIMNEY EXTENSION NUMBER

NA

TELESCOPIC DUCT COVER

-

DUCT TRANSITION

-

TRANSITION REDUCER KIT

-

BACKDRAFT DAMPER

-

NON RETURN VALVE

-

UPGRADE FILTER

-

CFM REDUCTION KIT

KIT0175561

BACKSPLASH KIT

-

INTERNAL BLOWER

-

INLINE BLOWER

-

EXTERNAL BLOWER

-

INLINE BLOWER SHELL KIT

-

EXTERNAL BLOWER SHELL KIT

-

HEAT LAMPS

-

SPACER/LINER

-

WALL MOUNT BRACKET

-

HIGH CEILING EXTENSION KIT

-

REMOTE CONTROL KIT

-

cUL listed

YES

UL listed

YES

AHAM verified

YES

TITLE 24

YES

Prop65Disclosure

YES

ENERGY STAR

NO

WIFI CAPABLE

NO

COMERCIAL USE APPROVED

NO

ADA COMPLIANT

NO

APP CAPABLE

NO

VENTILATION DIRECTION

HORIZONTAL

SMART COMPATIBLE

NO

FITLER INDICATOR LIGHT

NO

HEAT SENSOR

NO

CHAROCAL FILTER

YES

CERTIFICADO NOM

Activo

DIMENSIONS inches

30" x 12 x 9 1/2

Prop65 Disclosure

YES

GTIN

00190603004243

EAN

0190603004243

UPC

190603004243

Led light
