PRODUCT DESCRIPTION

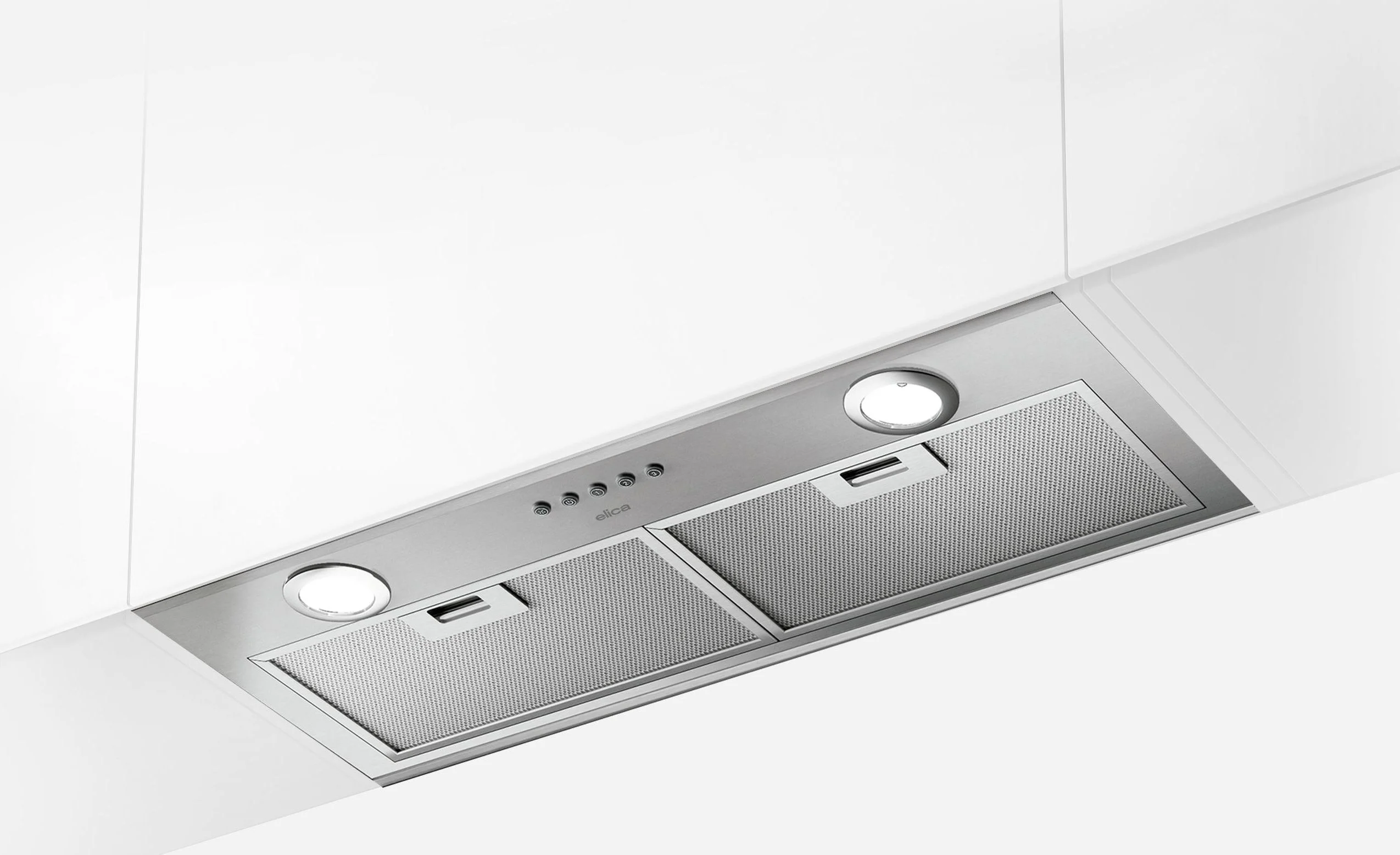

Asti is designed for discreet mounting inside cabinetry, fits perfectly into 12" deep cabinetry and is ideal for kitchens where space is limited, or where the range hood needs to be out of sight. Available in 28" width.
Asti comes equipped with a powerful 400 CFM blower that can handle most of cooking needs. Convenient Backlit Electronic Push Button Controls operate the 3 speed blower and LED lighting, while dishwasher-safe anodized aluminum mesh filters offer easy maintenance. Asti is designed for standard ducted or recirculating installation (with kit sold separately).
Specifications
Warranty
3 Year Parts and In-Home Labor Warranty. Third year awarded after product registration on www.elica.com
SHIPPING WEIGHT (kg)
13.40
NET WEIGHT (kg)
9.90
CARTON LENGHT (mm)
837.00
CARTON HEIGHT (mm)
426.00
CARTON WIDTH (mm)
389.00
VOLUMEN (M3)
0.14
SHIPPING WEIGHT
29.54
NET WEIGHT
21.83
CARTON LENGHT
32.95
CARTON HEIGHT
16.77
CARTON WIDTH
15.31
COUNTRY OF MANUFACTURE
MX
QTY PACKAGE
1.00
INTENDED APPROVED USE
Residential use
Finish
Stainless Steel
Color
inox
HOODS FEATURES
3x layer mesh Led light Super easy installation Top or rear outlet
WIDTH (IN)
28"
WIDTH (CM)
72.00
AIRFLOW (M3/H)
680.00
CFM (MAX)
400.00
db (min)
14.70
db (max)
51.00
SONES
0.4 - 5.0
EXHAUST VERSION
Convertible with Kit
EXHAUST SIZE
Round 6"
DUCT SHAPE
Round
EXHAUST LOCATION
Top or Rear
RECTANGULAR DUCTH HEIGHT
NA
RECTANGULAR DUCT WIDTH
NA
Round duct diameter
6"
ELECTRIC (VOLTS)
120 V/60 Hz
AMPERAGE
2.3 A
HERTZ
60.00
WATTS
289.00
LIGHTING
LED 2 x 2.1 ww 4000 KK
BULB TYPE
LED
BULB INCLUDED
YES
NUMBER OF LIGHTS
2.00
BULB WATTS
2.10
KELVINS
4000.00
GREASE FILTER TYPE
Dishwasher-Safe, Anodized Aluminum Mesh Filter
DISHWASHERSAFE FILTER
YES
FILTER MATERIAL
Aluminum Mesh
BLOWER TYPE
Interior Unit
CONTROL TYPE
Backlit Electronic Push Button
SPEED CONTROL
YES
NUMBER OF SPEEDS
3.00
REMOTE CONTROL
NO
POWER SOURCE
Power Cord
OUTDOOR USE
NO
SMUDGE RESISTANT
NO
RECIRCULATION KIT NEEDED
YES
CFM REDUCTION
Yes w/kit
DIMENSIONS
72 x 27 x 24
DIMENSIONS inches
28 1/4" x 10 3/4 x 9 1/2
ADJUSTABLE HEIGHT
NO
Minimum Overall Height - Top to Bottom
9 1/2"
Maximum Overall Height - Top to Bottom
9 1/2"
Overall Height - Top to Bottom
9 1/2"
Overall Width - Side to Side2
28 1/4"
Overall Depth - Front to Back
10 3/4
Hood Height
9 1/2"
Minimum Compatible Ceiling Height
NA
Maximum Compatible Ceiling Height
NA
Minimum Height Above Cooktop (ELECTRIC)
24
Minimum Height Above Cooktop (GAS)
30
Maximum Height Above Cooktop
36"
Chimney Width - Side to Side
NA
Chimney Depth - Front to Back
NA
Chimney Height - Top to Bottom
NA
RECIRCULATION KIT NUMBER
KIT02770
CHIMNEY EXTENTION NUMBER
NA
TELESCOPIC DUCT COVER
-
DUCT TRANSITION
-
TRANSITION REDUCER KIT
-
BACKDRAFT DAMPER
-
NON RETURN VALVE
-
UPGRADE FILTER
-
CFM REDUCTION KIT
KIT0175561
BACKSPLASH KIT
-
INTERNAL BLOWER
-
INLINE BLOWER
-
EXTERNAL BLOWER
-
INLINE BLOWER SHELL KIT
-
EXTERNAL BLOWER SHELL KIT
-
HEAT LAMPS
-
SPACER/LINER
KIT02773/KIT02774
WALL MOUNT BRACKET
-
HIGH CEILING EXTENSION KIT
-
REMOTE CONTROL KIT
-
cUL listed
YES
UL listed
YES
AHAM verified
YES
TITLE 24
YES
Prop65 Disclosure
YES
ENERGY STAR
NO
WIFI CAPABLE
NO
COMERCIAL USE APPROVED
NO
ADA COMPLIANT
NO
APP CAPABLE
NO
VENTILATION DIRECTION
HORIZONTAL
SMART COMPATIBLE
NO
FITLER INDICATOR LIGHT
NO
HEAT SENSOR
NO
CHAROCAL FILTER
YES
VERSION ADVANCES
REAR OUTLET
CERTIFICADO NOM
NA
GTIN
00190603001747
EAN
0190603001747
UPC
190603001747
3x layer mesh Led light Super easy installation Top or rear outlet
