Warranty
3 Year Parts and In-Home Labor Warranty. Third year awarded after product registration on www.elica.com
Fracci n arancelaria
8414600100.00
SHIPPING WEIGHT (kg)
15.20
CARTON LENGHT (mm)
1016.00
CARTON HEIGHT (mm)
618.00
SHIPPING WEIGHT (lb)
33.51
COUNTRY OF MANUFACTURE
MX
INTENDED APPROVED USE
Residential use

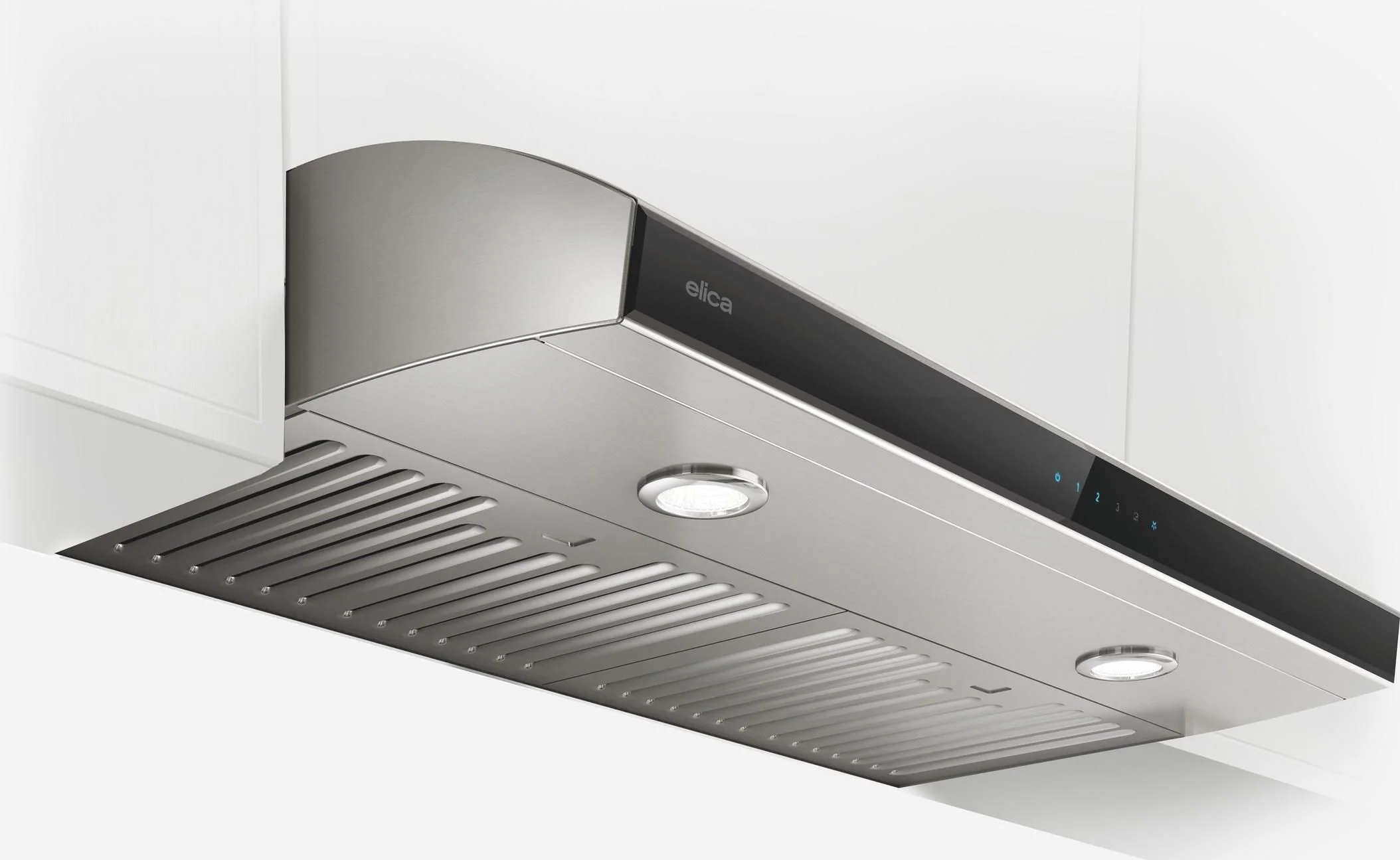

Finish
Stainless Steel + Black Glass
Type of Ventilation
Convertible
HOODS FEATURES
Semi baffle filter, Led light, Dim light, CFM reduction system, Touch controls,
EXHAUST VERSION
Convertible with Kit
EXHAUST SIZE
Rectangular 10 x 3 1/4" or round 7" (sold separately)
DUCT SHAPE
Rectangular or round (sold separately)
EXHAUST LOCATION
Top or Rear
RECTANGULAR DUCTH HEIGHT
10"
RECTANGULAR DUCT WIDTH
3.25
LIGHTING
Premium Dimmable LED 2 x 2.1 ww 4000 KK
GREASE FILTER TYPE
Dishwasher-Safe, Stainless Steel Baffle Slot Filter
DISHWASHERSAFE FILTER
YES
FILTER MATERIAL
Stainless Steel
BLOWER TYPE
Interior Unit
CONTROL TYPE
Multi-function Electronic with black glass touch display
NUMBER OF SPEEDS
3 + booster
RECIRCULATION KIT NEEDED
YES
DIMENSIONS (CM)
91 x 51 x 12
DIMENSIONS (INCH)
36" x 20" x 4 3/4"
Overall Height - Top to Bottom
4 3/
Overall Width - Side to Side2
36"
Overall Depth - Front to Back
20"
Min - Max Compatible Ceiling Height (Cover electronic cooking)
NA
Min - Max Compatible Ceiling Height ( Cover gas cooking)
NA
Minimum Height Above Cooktop (ELECTRIC)
24
Minimum Height Above Cooktop (GAS)
30
Maximum Height Above Cooktop
36"
Chimney Width - Side to Side
NA
Chimney Depth - Front to Back
NA
Chimney Height - Top to Bottom
NA
RECIRCULATION KIT
KIT02179
Long Life Recirculating Carbon Filter
NA
Recirculation (400 CFM) 2 round carbon filters
NA
Recirculation (400 CFM) Contains 6 deflector & 3 carbon filters
NA
Recirculation (600 CFM) Contains 6 deflector, 3 flat carbon filters & clips
NA
Recirculation (600 CFM) Contains 6 deflector & 2 carbon filters
NA
Recirculation (600 CFM) 2 round carbon filters
NA
Recirculation (600 CFM) 4 round carbon filters
NA
Recirculation (600 CFM) 6 round carbon filters
NA
Recirculation (600 CFM) 6 round Deflector
NA
Recirculation (1200 CFM) 4 round deflector
NA
Recirculation (1200 CFM) 4 round carbon filters
NA
Recirculation (1200 CFM) (8 round deflector)
NA
Long Chimney Ext/Chimney extension
NA
Chimney extension Can reach 8 8 - 12 4 (ducted), 9 0 -12 8 (recirculating)
NA
Chimney extension Can reach 7 9 - 10 9 (ducted), 8 1 -11 1 (recirculating)
NA
Chimney extension Reaches ceiling heights 8 5 -12 1 (ducted), 9 1 -12 5 (recirculating)
NA
Chimney extension Reaches ceiling heights 7 5 -10 3 (ducted), 8 2 -10 11 (recirculating)
NA
Long Chimney Extension(6 )
NA
Long Chimney Extension(11 )
NA
Long Chimney Extension(12 )
NA
Long Chimney Extension(13 )
NA
Long Chimney Extension (6 with grates)
NA
TRANSITION REDUCER KIT 10 round down to 8 round - attaches to 10 round transition
-
BACKDRAFT DAMPER
KIT02723
RECIRCULATION DUCT COVERS
NA
RECIRCULATION DEFLECTOR
NA
INLINE BLOWER SHELL KIT (600 CFM)
-
INLINE BLOWER SHELL KIT (1200 CFM)
NA
EXTERNAL BLOWER SHELL KIT
-
HIGH CEILING EXTENSION KIT
-
Duct cover extension 6
NA
Duct cover extension 18
NA
COMERCIAL USE APPROVED
NO
VENTILATION DIRECTION
HORIZONTAL
FITLER INDICATOR LIGHT
NO
