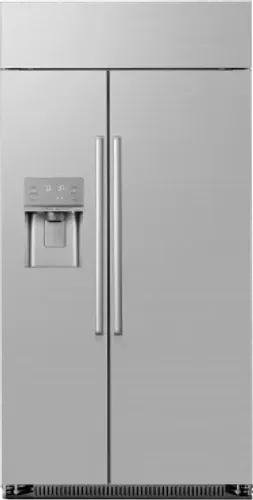

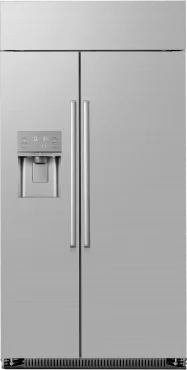

Dacor 42" Built-In Side-by-Side Smart Refrigerator, 24.0 cu. ft. Capacity in Stainless Steel

OVERALL DIMENSIONS

(P) Width : 42" (/P) (P) Height : 83-1/2" (/P) (P) Depth : 25 3/4" (/P) (P) * Fits in classic 41-1/2" wide or full width 42" cabinet opening (/P) (P)Please refer to the Installation Instructions for more detailed dimensions.(/P)

INTERIOR CAPACITY

(P) Total Unit Gross Capacity - AHAM : 24 cu.ft. (/P) (P) Refrigerator Gross Capacity : 15.5 cu.ft. (/P) (P) Freezer Gross Capacity : 8.5 cu.ft. (/P)

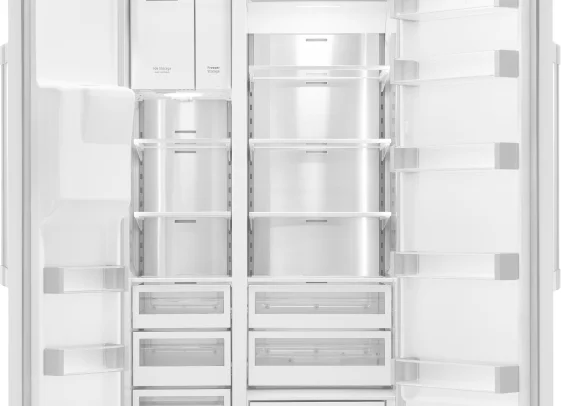

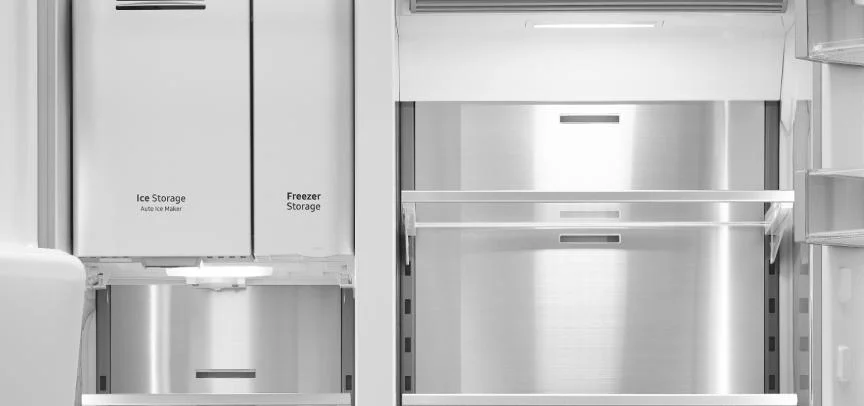

INTERIOR CONFIGURATION

(P) Full Width Shelves - Refrigerator : 4 ea. (/P) (P) Full Width Shelves - Freezer : 3 ea. (/P) (P) Shelf Material : Aluminum Trim (Front) + Side Silver Resin (/P) (P) Refrigerator Drawers : 3 ea. (/P) (P) Refrigerator Door Bins : 5 ea. (/P) (P) Freezer Drawers : 3 ea. (/P) (P) Freezer Door Bins : 3 ea. (/P)

TEMPERATURE RANGES

(P) Refrigerator : 34 (1 ) to 44 (7 ) (/P) (P) Refrigerator - Power Cool : 34 (1 ) (/P) (P) FreshZone(TM) Drawer : 37 (3 ) / 33 (1 ) / 29 (-1 ) (/P) (P) FreshZone(TM) Plus Compartment : -8 (degree)F (-23 (degree)C) to 33 (degree)F(1 (degree)C) (/P) (P) Freezer : -8 (-23 ) to 5 (-15 ) (/P) (P) Freezer - Power Freeze : -8 (-23 ) (/P)

REQUIREMENTS

(P) Electrical: 115V, 60Hz, 15A (/P)

ACCESSORIES

(P) RAS00WFAAAA/DA - Water filter (/P)

CONFIGURATIONS

(P) DRS425300SR/DA : 42" Built-In Side-by-Side Refrigerator (/P)

PRECISE COOLING TECHNOLOGY

POWER COOL/POWER FREEZE

METAL COOLING

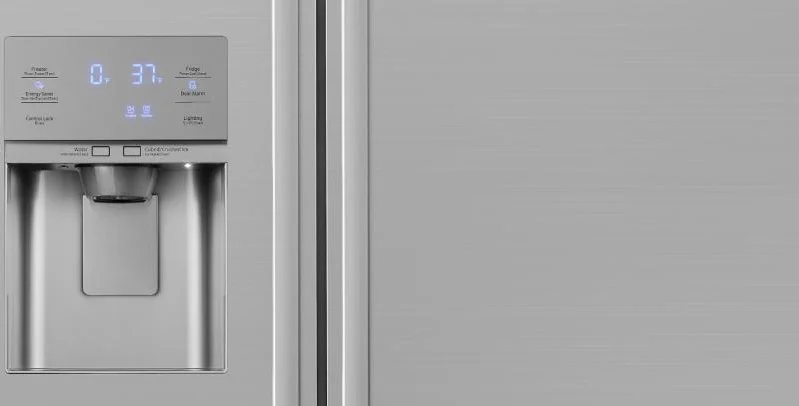

EXTERNAL ICE AND WATER DISPENSER
