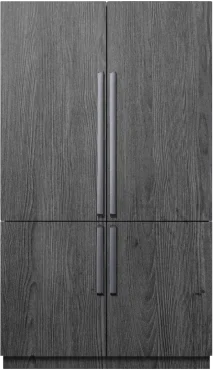

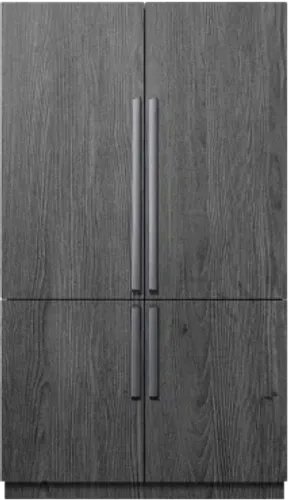

Dacor 48" Built-In French Door Smart Refrigerator, 27.7 cu. ft. Capacity

OVERALL DIMENSIONS

Width : 47-1/4" Height : 83-3/8" Depth : 23-13/16" Please refer to the Installation Instructions for more detailed dimensions.

INTERIOR CAPACITY

Total Unit Gross Capacity - AHAM : 27.7 cu. ft. Refrigerator Gross Capacity : 19.7 cu. ft. Freezer Gross Capacity : 8 cu. ft.

INTERIOR CONFIGURATION

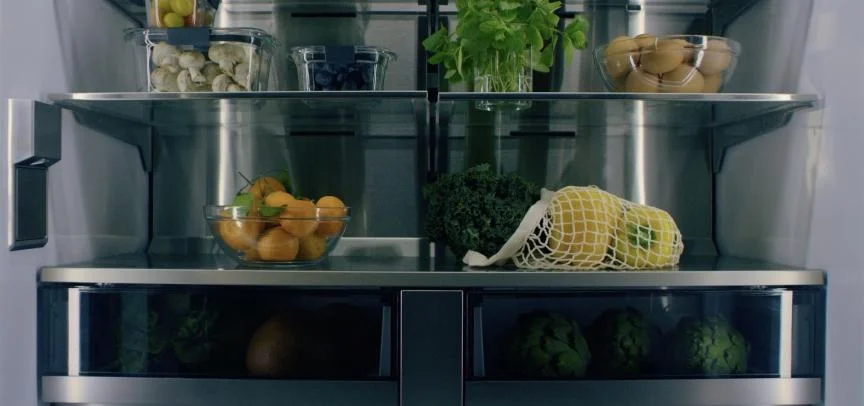

Full Width Shelves - Refrigerator : 1 ea. Adjustable Shelves - Refrigerator : 4 ea. Shelf Material - Refrigerator : Tempered Glass Shelves w/Metal Trim Full Extension Drawers at 90(degree) Door Opening Angle : Yes FreshZone Drawer : Yes - Cheese (37(degree)F) / ColdDrinks (33(degree)F) / Mea.t (29(degree)F) Crisper Drawers : 2 ea. Door Bins -Refrigerator : 6 ea. Freezer Drawers : 4 ea.

TEMPERATURE RANGES

Refrigerator : 34(degree)F (1(degree)C) to 44(degree)F (7(degree)C) Refrigerator - Power Cool : 34(degree)F (1(degree)C) FreshZone(TM) Drawer : 37(degree)F (3(degree)C) / 33(degree)F (1(degree)C) / 29(degree)F (-1(degree)C) FreshZone(TM) Plus Compartment : -8(degree)F (-23 (degree)C) to 33(degree)F (1 (degree)C) Freezer : -8(degree)F (-23(degree)C) to 5(degree)F (-15(degree)C) Freezer - Power Freeze : -8(degree)F (-23(degree)C)

REQUIREMENTS

Electrical: 115V, 60Hz

ACCESSORIES

RAT48AMAASR/DA - French Door Refrigerator Panel Kit: Silver Stainless RAT48AMAAMS/DA - French Door Refrigerator Panel Kit: Graphite Stainless

EFFICIENCY

ENERGY STAR Qualified : Yes Annual Energy Consumption : 629 kWh

CONFIGURATIONS

DRF487500AP/DA : 48 Inch French Door Refrigerator with SteelCool(TM), Panel Ready DRF487500AP/DA RAT48AMAASR/DA : 48 Inch French Door Refrigerator with SteelCool(TM), Silver Stainless (Panel Kit) DRF487500AP/DA RAT48AMAAMS/DA : 48 Inch French Door Refrigerator with SteelCool(TM), Graphite Stainless (Panel Kit)

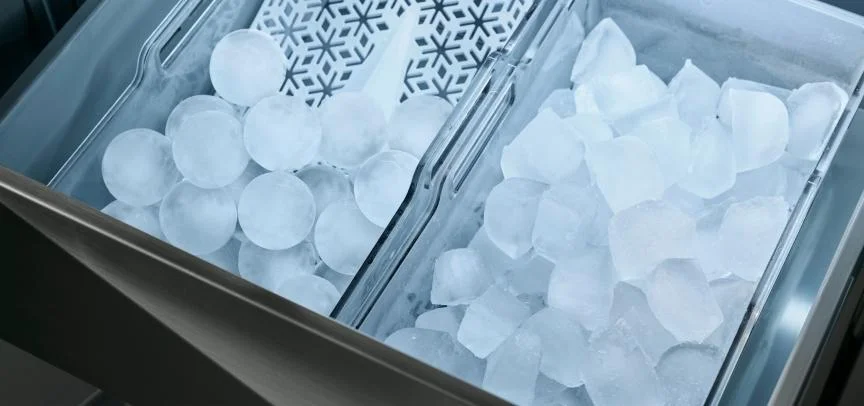

DUAL ICEMAKER WITH WHISKY BALL ICE

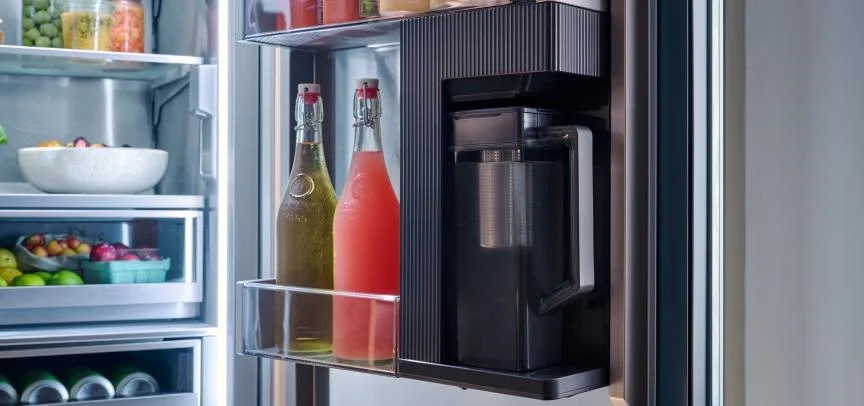

AUTOFILL WATER PITCHER

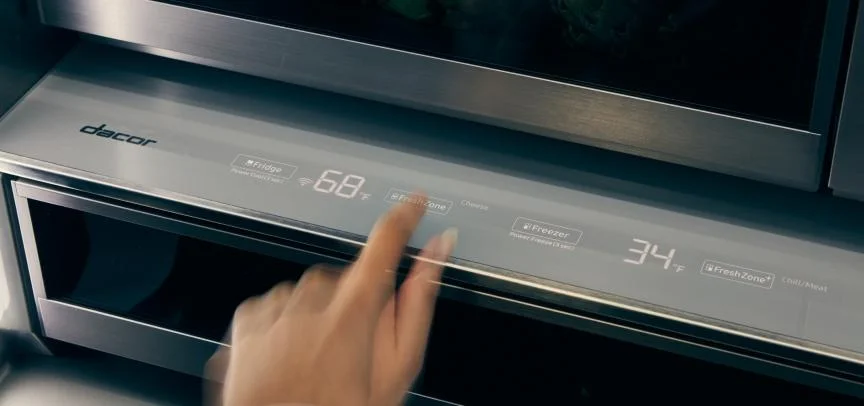

HIDDEN TOUCH CONTROL PANEL

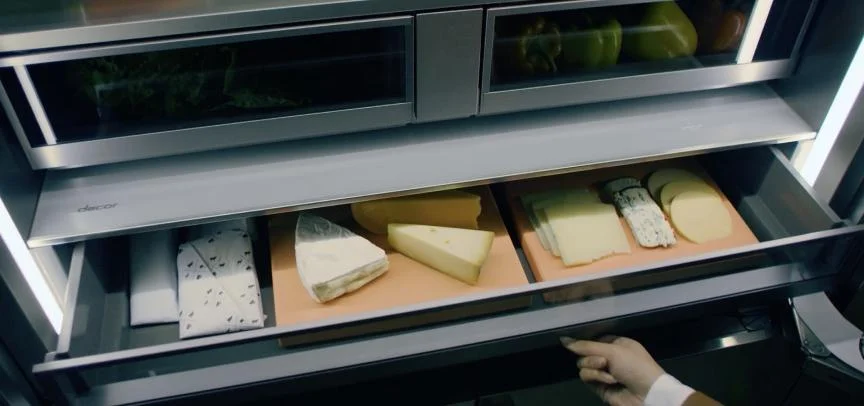

FRESHZONE(TM)

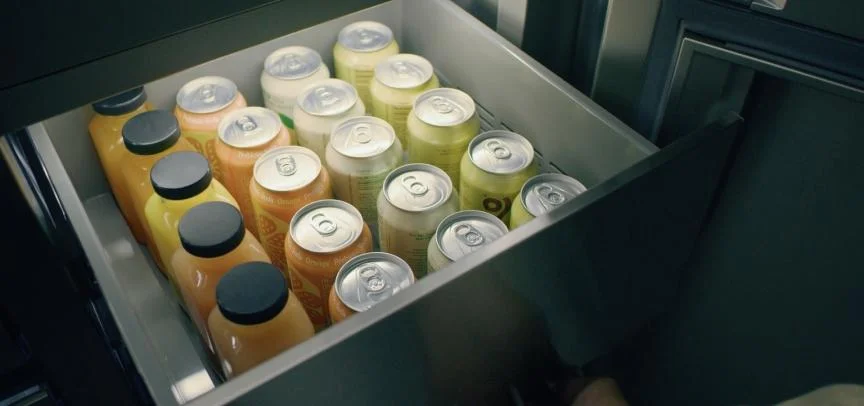

FRESHZONE+(TM) COMPARTMENT

PRECISE COOLING TECHNOLOGY

INTERNAL WATER DISPENSER
