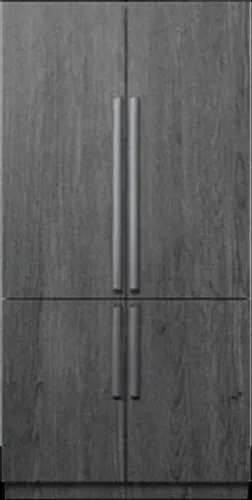

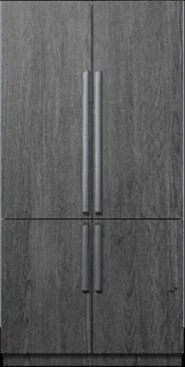

Dacor 42" Built-In French Door Refrigerator, 23.5 cu. ft. Capacity

OVERALL DIMENSIONS

Width : 41-3/4" Height : 83-3/8" Depth : 25" Please refer to the Installation Instructions for more detailed dimensions.

INTERIOR CAPACITY

Total Unit Gross Capacity - AHAM : 23.5 cu. ft. Refrigerator Gross Capacity : 16.8 cu. ft. Freezer Gross Capacity : 6.7 cu. ft.

INTERIOR CONFIGURATION

Full Width Shelves - Refrigerator : 1 ea. Adjustable Shelves - Refrigerator : 4 ea. Shelf Material - Refrigerator : Tempered Glass Shelves w/Metal Trim Full Extension Drawers at 90(degree) Door Opening Angle : Yes FreshZone Drawer : Yes - Cheese (37(degree)F) / ColdDrinks (33(degree)F) / Mea.t (29(degree)F) Crisper Drawers : 2 ea. Door Bins -Refrigerator : 6 ea. Freezer Drawers : 4 ea.

TEMPERATURE RANGES

Refrigerator - Power Cool : 34(degree)F (1(degree)C) FreshZone(TM) Drawer : 37(degree)F (3(degree)C) / 33(degree)F (1(degree)C) / 29(degree)F (-1(degree)C) FreshZone(TM) Plus Compartment : -8(degree)F (-23 (degree)C) to 33(degree)F (1 (degree)C) Freezer : -8(degree)F (-23(degree)C) to 5(degree)F (-15(degree)C) Freezer - Power Freeze : -8(degree)F (-23(degree)C) Refrigerator : 34(degree)F (1(degree)C) to 44(degree)F (7(degree)C)

REQUIREMENTS

Electrical: 115V, 60Hz, 6A

ACCESSORIES

RAT42AMAASR/DA - 42" French Door Panel Kit, Contemporary, Silver RAC00WFAAAA/DA - Water Filter RAC00DFAAAA/DA - Deodorizing Air Filter (Set of 6) RAT42AMAAMS/DA - 42" French Door Panel Kit, Contemporary, Graphite ADRF42MHAASR - 42" French Door Handle Kit, Contemporary, Silver ADRF42MHAAMS - 42" French Door handle Kit, Contemporary, Graphite RAC42TKBBSR - 42" French Door Kick Plate, Silver RAC42TKBBMS - 42" French Door Kick Plate, Graphite

EFFICIENCY

ENERGY STAR Qualified : Yes Annual Energy Consumption : 629 kWh

CONFIGURATIONS

DRF427500AP/DA : 42" Four - Door French Door

STEELCOOL INTERIOR WITH 3D LIGHTING

HIDDEN TOUCH CONTROL PANEL

FRESHZONE(TM)

FRESHZONE+(TM) COMPARTMENT

DUAL ICEMAKER WITH COCKTAIL ICE(TM)

PRECISE COOLING TECHNOLOGY

INTERNAL WATER DISPENSER

LUXURY MATERIAL SELECTION
