PRODUCT DESCRIPTION

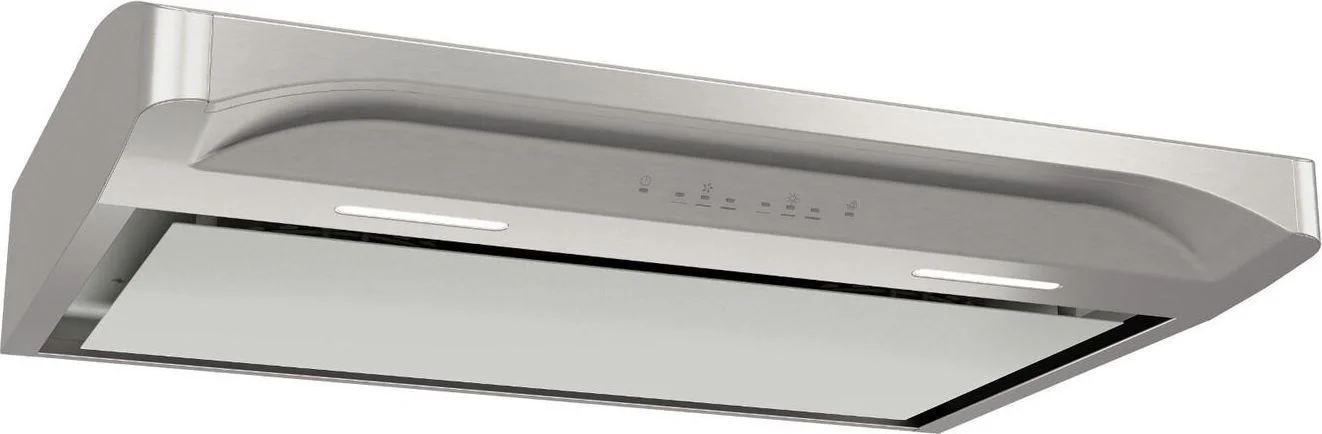

The sculpted lines of Alta(TM) bring an exciting, new choice to typical range hood shapes. Infrared controls, perimeter aspiration and LED lighting allow you to imagine new design possibilities while you experience the ultimate in capture efficiency. Equipped with the exclusive Broan Captur(TM) system, which combines advanced blower design with new filter technology, this 650 MAX Blower CFM-rated hood provides 98.5% removal of smoke and odor to protect your home and family from airborne pollutants caused from cooking.
Specifications
Filter Type
Peripheral
Heat Sentry(TM)
Yes
HVI Certified
Yes
Lighting Type
LED
Sound Level (Sones)
0.3
UL Listed
Yes
ADA Compliance
Yes
Damper Included
No
ENERGY STAR(R) certified
No
Light Bulb Wattage
4.5
Light Bulbs Included
Yes
Light Levels
3
Material
Steel
Nightlight Or Nighlight Setting
No
Ductless Recirculation Capable
Yes
Ductless Filter Or Kit Included
No
Remote Operation Capable
No
Speed Levels
3
Switch Control Type
Infrared
Rated Voltage
120
Boost Mode
No
Country of Origin
Mexico
Rated Amps
1.9
Product Depth
22
Product Height
Product Width
Built-In Timer
No
Capture Efficiency
98.5
CFM
650 Max
Diameter
Vent Type
Convertible Built-In
Duct Direction
Horizontal/Vertical
Bulb (Recommended Type)
Integrated LED Module
Light Color Temp
3000
Manufacturer Warranty
1 Year, 3 Year LED module
Wattage
228
Model replaced EQLD136SS
Smooth-flow blower wheel design and high flow filters ensure quiet, less than 0.3 sones operation at normal speed
Three-speed, whisper touch infrared control is a pleasure to use and admire. Delay off feature runs the blower for 10 minutes after cooking to clear the air
Broan Heat Sentry(R) detects excessive heat and adjusts the blower speed to prolong the life of the product and provide proper ventilation
Dishwasher-safe, open-mesh filters enhance grease removal behind a peripheral panel that increases capture of cooking effluents. The filter clean reminder ensures they will always maintain a high level of capture
EZ1 brackets make it easy for single person installation in less than half the time of traditional methods
Bright, three-level LED modules - supported by a 3-year warranty - illuminate evenly and are tested in cooking environments to ensure long life without dimming. Color Temperature 3000 K
Can be installed for ADA Compliance with the purchase of a wall switch (not included) and Broan-NuTone model HAWRK3 Low Voltage Wiring Kit for ADA Application (purchase separately)
Non-duct capable with use of charcoal filters, sold separately. Hidden louvers on top of hood exhaust away from cabinetry
Optional HCR3 handheld remote enables control from anywhere in the kitchen
Range hood is installed as hardwired or with an optional power cord kit (SHCK44; sold separately)
