PRODUCT DESCRIPTION
Specifications
Total NG BTUs
42700
Total LP BTUs
42700
ExtraLow(R) Burners
No
Material Number
NGM8659UC
Brand Name
Bosch
Category
Gas Cooktops - 5 Burners
Product Name

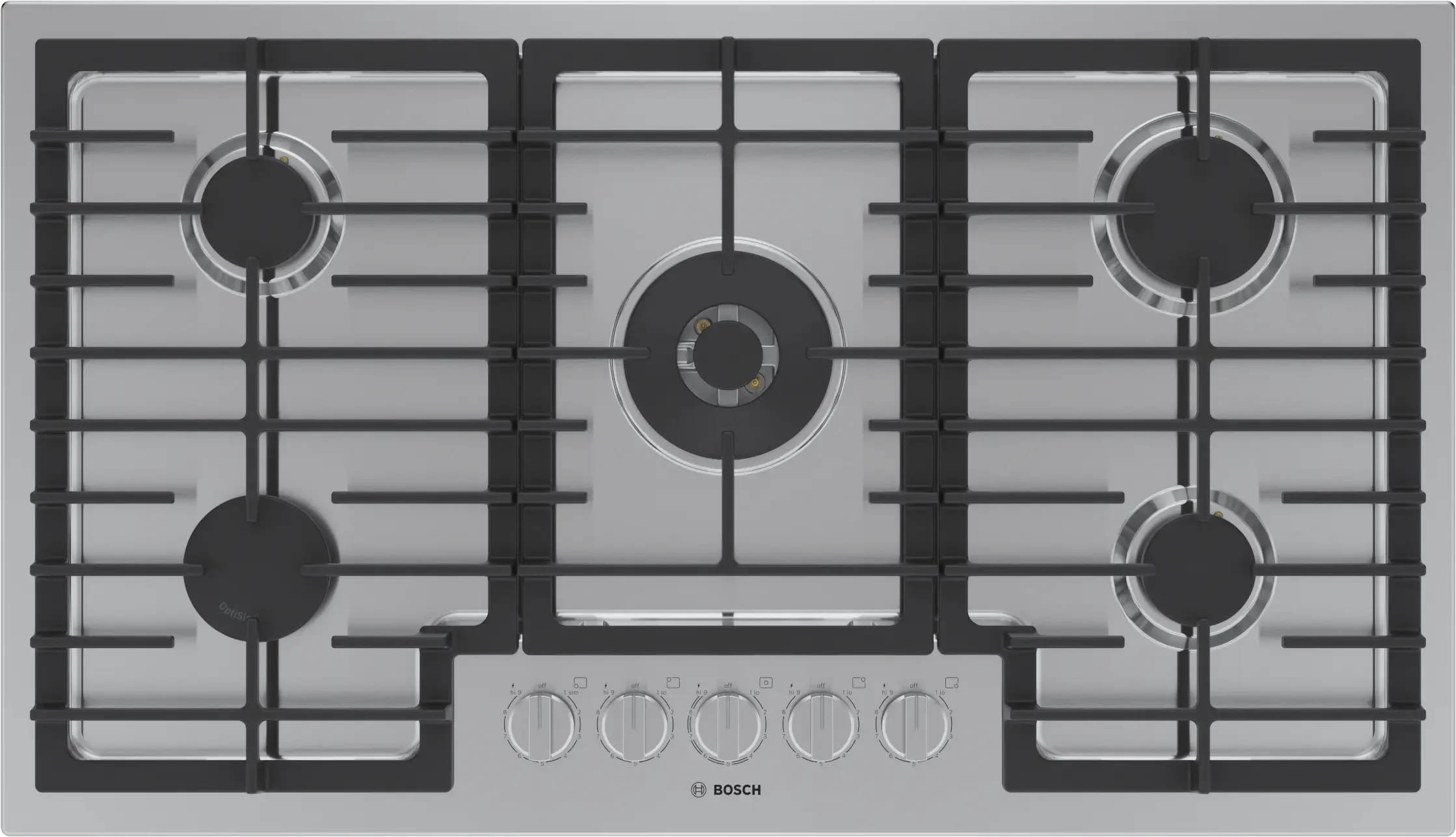

800 Series, Gas hob, 36'', Stainless steel
Upc
825225973034
Series
800 Series
Appliance Color/Finish
Stainless Steel
Included Accessories
1 x nozzle set for liquid gas, 1 x cast iron pan support
Installation
Built-in
Ada Compliant
No
Basic Surface Material
Stainless steel
Extralow(R) Burners
No
Lp Gas Connection Rating (Btu)
42700
Natural Gas Connection Rating (Btu)
42700
Number Of Gas Burners
5
Overall Appliance Dimensions (HxWxD) (in)
3 13/16'' x 37'' x 21 1/4''
Required Cutout Size (HxWxD) (in)
3 13/16'' x 34 15/16'' x 19 1/8''
Gas type
Natural gas 15 mbar (USA)
Alternative Gas Type (Nozzle Set Included)
Liquid gas 27,5 mbar (USA)
Plug Type
120V-3 prong
Power Cord Length
40''
Fuse protection
15
Volts
120
Product Packaging Dimensions (HxWxD)
8 3/8'' x 43 1/8'' x 24 3/4''
Gas type preset
Natural gas 15 mbar (USA)
Alternative Gas Type
Liquid gas 27,5 mbar (USA)
Surface Materials
Stainless Steel
Grate Materials
Cast Iron with Rubber Feet
Location of Control Panel
Front
Basic Touch Control
No
Burner Grate Material
Cast Iron
Comfort Touch Control
No
Directselect
No
Directselect Premium
No
Flameselect
Yes
Location Of Control Panel
Front
Number Of Induction Plates
0
Number Of Radiant Plates
0
Perfectfry
No
Powermove
No
Residual Heat Iidicator
Yes
Sealed Burners
Yes
Special Features
Simmer Cap
Total Number Of Positions That Can Be Used At The Same Time
5
Touch Slider
No
Type Of Control
mechanical
Wok Burner
Yes
Electric Cooktop Features - Automatic Setting Transfer
No
Electric Cooktop Features - Increase/ Decrease Power Level Via Move Mode
No
Glass Protect
No
Number of Gas Burners
5
Pedestal Star(R) Burners
No
Sealed Burners
Yes
ExtraLow(R) Burners
No
Griddle
No
ADA Compliant (When Installed to ADA requirements)
No
OptiSim(R) Burner
No
Special Features
Simmer Cap
Home Connect(TM)
No
Connected Appliances With Home Connect
No
Safety
SMARTFLAME
Included Accessories
1 x nozzle set for liquid gas, 1 x cast iron pan support
GTIN
00825225973034
EAN
0825225973034
UPC
825225973034
FlameSelect(R): - delivers a new and better way to cook with gas with 9 pre-defined power levels for precise heat.
LED Burner Indicator: - displays a red light line to indicate if a burner is on and pulses as a safety residual heat indicator
Dual-Flame Power Burner: - 2 rings of heat let you go from simmer to a high powered boil with ease.
Dishwasher-Safe Grates: - conveniently place your grates in the dishwasher for easy clean-up.
Simmer delicate sauces with the OptiSim(R) Burner
Eliminate the guesswork of cooking with FlameSelect(R)
Dishwasher-safe grates
Sleek Knobs with LED Indicators
Easy to clean, low-profile design
Boil water quickly with a Dual-Flame Power Burner
Slide your pans from burner to burner
OptiSim(R) Burner: - the wide & thick burner design diffuses heat evenly and reduces hot spots -- perfect for simmering delicate sauces or melting chocolate.
5 high efficiency burners - 5 high-efficiency burners with a 17,000 BTU power burner
Heavy duty metal knobs - New FlameSelect has 9 defined power levels for precision cooking
FlameSelect technology - Dual-flame power burner takes you from simmer to sear with ease
Dual-flame power burner - Dual-flame power burner allows you to go from a high power dual flame for powerful boiling, to one small flame for precise simmering
Continuous grates - Dishwasher-safe, heavy duty enameled cast iron grates are full width for a continuous surface
Seamless and low profile one-piece, 36" stainless steel design makes clean-up simple
A special enameling process allows the grates to be washed directly in the dishwasher, instead of by hand, for easier clean-up
For added safety and peace of mind, Flame Safe thermocouple feature will switch off the gas supply if flame temporarily extinguishes
Distinctive red LED light line embedded into each control knob indicates if burners are on, and the burner's residual heat
Low-profile design for an integrated transition to the counter surface
LP conversion kit included for conversion from natural gas to liquid propane
One year limited manufacturer s warranty
Wider and thicker OptiSim burner design diffuses heat evenly for better flame control when simmering delicate sauces
Complete your kitchen with coodinated Bosch ovens and ventilation
Sealed burners prevent spills from entering the burner box
STAR-K Sabbath compliant
Connection Rating (W)
360
Energy Input
Gas
Fuse Protection (A)
15
Gas Type
Natural gas 15 mbar (USA)
Power Levels
Step valve 9 steps
Voltage (V)
120
Frying Sensor
No
Keep Warm Function
No
Timer
No
Automatic Connection/ Separation Of The Cooking Zones
No
Extended Flexinduction
No
Flexinduction
No
Teppanyakipro(TM)
No
Appliance Dimensions (H X W X D) (In)
3 13/16'' x 37'' x 21 1/4''
Required Cutout/Niche Size For Installation (In)
3 13/16'' x 34 15/16'' x 19 1/8''
