PRODUCT DESCRIPTION
Specifications
Total NG BTUs
41400
Total LP BTUs
41400
ExtraLow(R) Burners
No
Material Number
NGM5059UC
Brand Name
Bosch
Category
Gas Cooktops - 5 Burners
Product Name

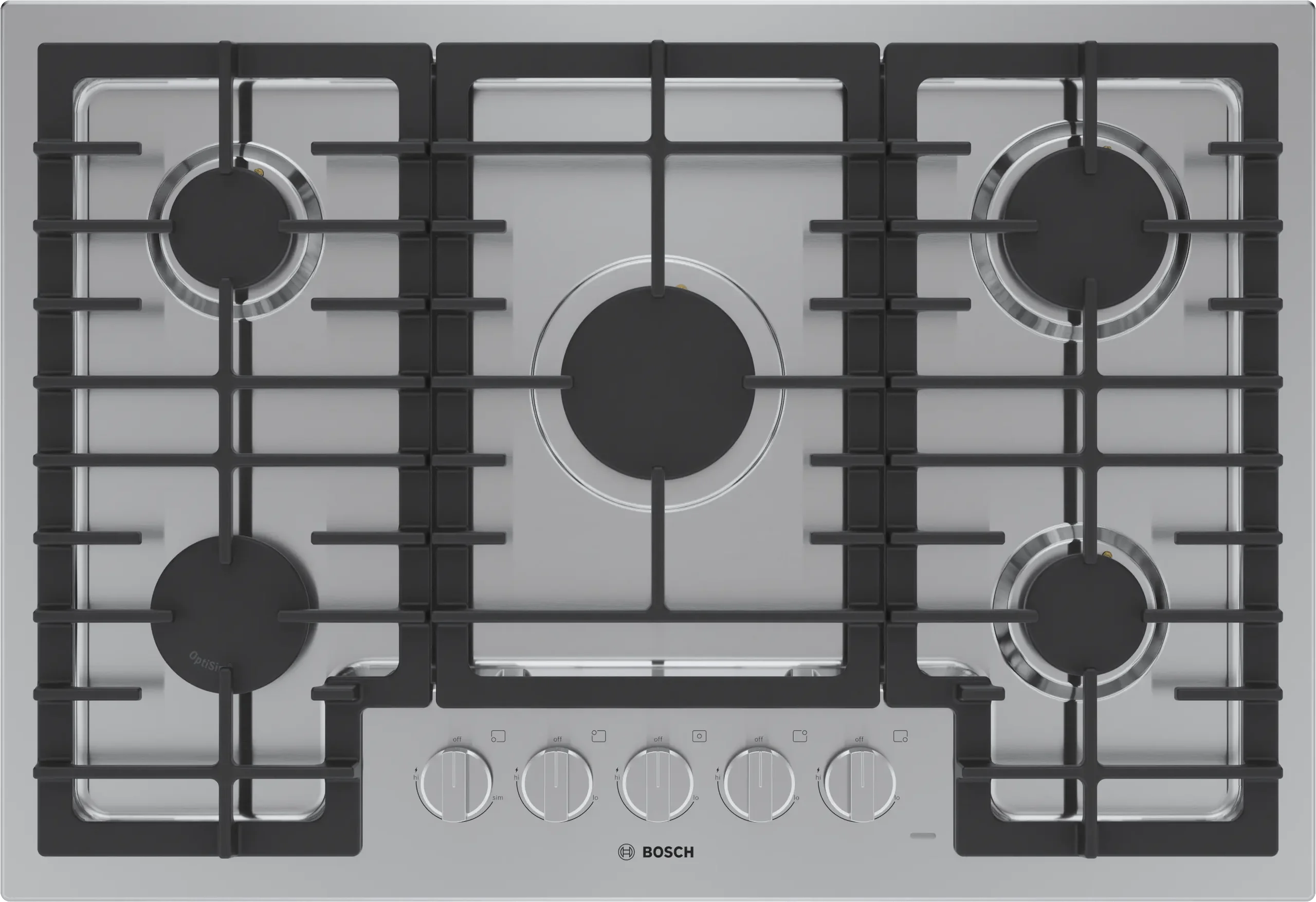

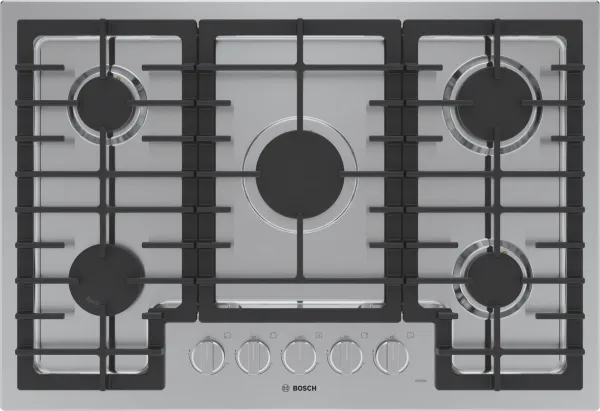

500 Series, Gas hob, 30'', Stainless steel
Upc
825225972600
Series
500 Series
Appliance Color/Finish
Stainless Steel
Included Accessories
1 x nozzle set for liquid gas, 1 x cast iron pan support
Installation
Built-in
Ada Compliant
No
Basic Surface Material
Stainless steel
Extralow(R) Burners
No
Lp Gas Connection Rating (Btu)
41400
Natural Gas Connection Rating (Btu)
41400
Number Of Gas Burners
5
Overall Appliance Dimensions (HxWxD) (in)
3 3/4
Required Cutout Size (HxWxD) (in)
3 3/4
Gas type
Natural gas 15 mbar (USA)
Alternative Gas Type (Nozzle Set Included)
Liquid gas 27,5 mbar (USA)
Plug Type
120V-3 prong
Power Cord Length
40
Fuse protection
15
Volts
120
Product Packaging Dimensions (HxWxD)
8 3/8'' x 37 1/8'' x 24 3/4''
Gas type preset
Natural gas 15 mbar (USA)
Alternative Gas Type
Liquid gas 27,5 mbar (USA)
Surface Materials
Stainless Steel
Grate Materials
Cast Iron with Rubber Feet
Location of Control Panel
Front
Basic Touch Control
No
Burner Grate Material
Cast Iron
Comfort Touch Control
No
Directselect
No
Directselect Premium
No
Flameselect
No
Location Of Control Panel
Front
Number Of Induction Plates
0
Number Of Radiant Plates
0
Perfectfry
No
Powermove
No
Residual Heat Iidicator
Yes
Sealed Burners
Yes
Special Features
Simmer Cap
Total Number Of Positions That Can Be Used At The Same Time
5
Touch Slider
No
Type Of Control
mechanical
Wok Burner
No
Electric Cooktop Features - Automatic Setting Transfer
No
Electric Cooktop Features - Increase/ Decrease Power Level Via Move Mode
No
Glass Protect
No
Number of Gas Burners
5
Pedestal Star(R) Burners
No
Sealed Burners
Yes
ExtraLow(R) Burners
No
Griddle
No
ADA Compliant (When Installed to ADA requirements)
No
OptiSim(R) Burner
No
Special Features
Simmer Cap
Home Connect(TM)
No
Connected Appliances With Home Connect
No
Safety
SMARTFLAME
Included Accessories
1 x nozzle set for liquid gas, 1 x cast iron pan support
GTIN
00825225972600
EAN
0825225972600
UPC
825225972600
5 Burners: - 5 high-efficiency gas burners allow you to cook multiple dishes at once
Residual Heat Indicator: - Shows an H for Hot and h for warm residual heat on the cooking surface for added safety
Easy to clean: - low-profile cooking surface keeps spills contained and makes clean-up easier than ever.
Simmer delicate sauces with the OptiSim(R) Burner
Easy to clean, low-profile design
Fit multiple pans and cook with 5 burners
Slide your pans from burner to burner
Continuous Cast Iron Grates: - makes it easy to slide pots & pans from burner to burner.
OptiSim(R) Burner: - the wide & thick burner design diffuses heat evenly and reduces hot spots -- perfect for simmering delicate sauces or melting chocolate.
5 high efficiency burners - 5 high-efficiency burners with a 16,000 BTU power burner
Heavy duty metal knobs - OptiSim burner design delivers precise simmering and melting
OptiSim burner - Low profile one-piece stainless steel design makes clean-up easy
Continuous grates - Full width, continuous surface cast iron grates make moving pots easier
Stainless steel surface - Seamless and low profile one-piece, 30" stainless steel design makes clean-up simple
For added safety and peace of mind, Flame Safe thermocouple feature will switch off the gas supply if flame temporarily extinguishes
Distinctive red LED light indicates if burners are on
Low-profile design for an integrated transition to the counter surface
LP conversion kit included for conversion from natural gas to liquid propane
One year limited manufacturer s warranty
Complete your kitchen with coordinated Bosch ovens and ventilation
Perfect results are within reach with up-front centralized controls
Sealed burners prevent spills from entering the burner box
STAR-K Sabbath compliant
Connection Rating (W)
360
Energy Input
Gas
Fuse Protection (A)
15
Gas Type
Natural gas 15 mbar (USA)
Power Levels
Standard valve
Voltage (V)
120
Frying Sensor
No
Keep Warm Function
No
Timer
No
Automatic Connection/ Separation Of The Cooking Zones
No
Extended Flexinduction
No
Flexinduction
No
Teppanyakipro(TM)
No
Appliance Dimensions (H X W X D) (In)
3 3/4" x 31'' x 21 1/4''
Required Cutout/Niche Size For Installation (In)
3 3/4" x 28 15/16'' x 19 1/8''
