PRODUCT DESCRIPTION

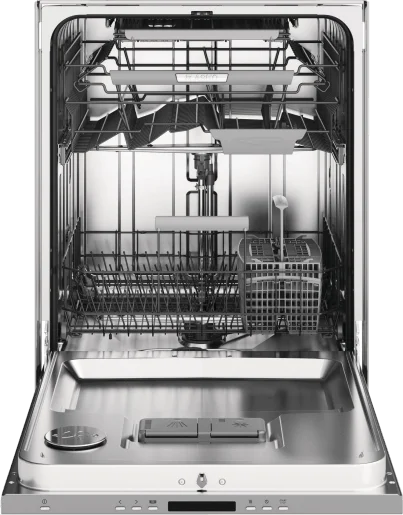

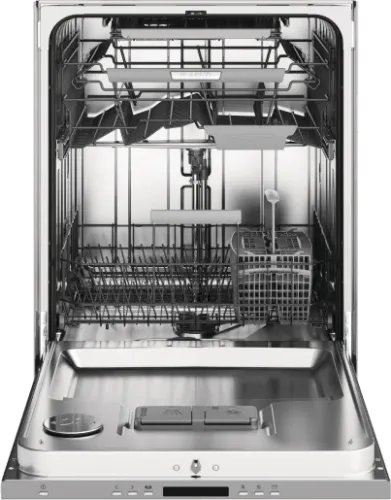

30 SERIES DISHWASHER - TUBULAR HANDLE We have equipped our dishwasher with different modes, with this model will you not only get a large loading capacity, but also the possibilities to wash the dishes with different modes, to save time, water or get those super tough items, exceptionally clean with the Intensive mode. QUANTITIES OF THIS MODEL ARE LIMITED, CHECK WITH YOUR LOCAL RETAILER FOR AVAILABILITY.
Features
Rinse & hold
The Rinse and hold program allows for you to avoid dried leftovers while you wait for the dishwasher to get fully loaded. Saves time and energy over time.
Brushless motor
A brushless motor is not only quieter and more reliable. It also consumes less energy. You want your dishwasher to work forever. So do we.
XL dishwashers
Our XL dishwashers have a loading height of 21-1/4". Combined with the smart four level rack system the load is 40% more, with countless possibilities to make it all fit in.
Crystal Glass
Wash fragile items made of crystal/glass, such as crystal glass from Orrefors, using the gentle dishwashing program Crystal glass.
Lower half wash
The Lower half wash program only sprays the bottom half of the machine which means less water and energy is used. An more environmentally friendly way to clean your plates and cutlery.
Upper half wash
The Upper basket program sprays only the top part of the machine and uses less water and energy than a normal program. Saves both your time and the environment.
Plastic wash
The Plastic program washes and dries your plastic kitchen ware perfectly. And, if there s room left you can of course wash the ordinary porcelain and glass at the same time.
Top cutlery tray
The top tray for cutlery and kitchen utensils is easy to remove for easy unloading. With a width of 12-3/4" the centred tray leaves plenty of room for tall wine glasses in the upper rack on each side of the tray. And with the Instant Lift(TM) you have the freedom to adjust the upper rack to be 1-1/2" or 2-1/4".
Green mode
The Green mode saves water and energy by lowering the temperature and extending the washing cycle. Still, the result is just as perfect as the Normal program. Let s go greener!
Self Cleaning
ASKO s dishwashers have a Self-cleaning program to ensure that all vital parts are thoroughly cleaned. Use a recommended cleaning agent and the program on a regular basis for best result.
Night Mode
Night mode reduces the noise by 2 dB thanks to lower pressure in the spray arm. Perfect at night or in a house with an open plan living area.
Intensive Mode
When food has dried on to the dishes or pans the Intensive mode, with increased pressure in the spray arm, more water and higher temperature, gets your dishes clean again.
ECO wash
Use when you want to save water and energy. For normally soiled load, such as plates, serving dishes, cups, glasses and so on.
Aqua Level(TM) Sensor
The Aqua Level(TM) Sensor ensures an optimized water level, even if a bowl turns over and is filled with water. It also keeps the machine from starting if the water is turned off.
Time program
When you need clean plates in a hurry, just tell the machine how dirty the dishes are and how much time you have. The program then adjusts washing and rinsing to match your needs.
Speed mode
When you need to get things cleaned in a hurry, the Speed mode is useful. It saves up to 50% of the normal time, by using more water and increased heating.
Aqua Safe(TM) system
Do you hesitate to leave the dishwasher on while you are not at home? Aqua Safe(TM) system is an advanced safety system which ensures a leak-safe dishwasher day and night.
16 - Loading capacity
The world s biggest load capacity. The latest addition to our rack system is a flexible top cutlery tray with its own spray arm and space for sixteen sets of cutlery, small bowls, or other utensils that can be difficult to load. The width of the top cutlery tray has been optimised to make room for tall glasses in the upper rack and, if more space is needed simply take the top cutlery tray out.
Power Zone Cutlery(TM)
Power Zone Cutlery(TM) is a special nozzle spray zone for the cutlery basket that will make your cutlery dazzling clean. And, there is a similar nozzle for the knife basket.
Jet Spray(TM)
Our JetSpray(TM) nozzle for tall, narrow objects like baby bottles, vases and bottles is combined with a special holder that makes sure that the cleaning result is perfect.
Touch Proof(TM)
The ultra-thin, transparent TouchProof(TM) coating protects your dishwasher stains and grease Easy to clean, scratch resistant it will keep your dishwasher looking brand new year after year.
Instant Lift(TM)
Our InstantLift(TM) height adjustment system, allows for freeing up between 1-1/2" or 2-1/4" in the upper rack,. A simple and flexible way to make room for it all.
Turbo Drying(TM)
The Turbo Drying(TM) system mixes dry air from outside the machine with the moist air inside. This feature also is available for fully integrated machines. We promise, you ll be a great fan.
20 years
Dishwashers designed to last for 20 yearsToday, sustainability and responsibility go hand in hand. So when we design our products, it is our responsibility to not only make products that last, but which also make things better - for our customers and for the planet. We develop our dishwashers responsibly and design them to make a difference. To ensure that they can do so for a long time, we test them equivalent to 20 years of lifetime.
Knife holders
Knives are sensitive things, so too are fingers. That is why we have done everything possible to protect both as best we can. Our knife holder is extra deep so that the blades remain steady throughout the wash cycle. There are knife holders on three levels: in the middle basket, in the upper basket and in the top basket. We guarantee a clean cut.
Multi position glass rack
The Multi position glass rack is a very practical rack that can be mounted in three different positions - all depending on your needs.
Anti siphon
For our fully integrated dishwashers, the Anti-siphon solution safely keeps the water inside the machine. This is especially important if the dishwasher is placed above floor level.
3 - Spray arms
The 3 spray-arm technique reaches every corner and with up to 10 highly effective spray zones, no dirt can escape. Not even your lasagne baking dish.
Aqua Detect(TM) Sensor
The Aqua Detect(TM)Sensor monitors the inlet valves and the water level while the machine operates. For safety reasons, the drain pump s capacity is five times the inlet valve s.
Wide Spray(TM)
WideSpray(TM) which creates a high-pressure jet spray in combination with a wide spraying nozzle. The pots and pans becomes clean and you get time to widen your scope.
3 Level rack
ASKO s three level rack system allows you to optimize the load. Remove, adjust, fold and move the racks, pin rows and cutlery rack to meet your every need.
Telescopic rails
ASKO uses telescopic guide rails with ball bearings to make the racks glide smoothly and quietly. For easy loading and unloading, you can also take out the whole rack.
Kid Safe(TM)
To stop small fingers from starting the dishwasher the Kid Safe(TM) makes the control panel easy to lock. This also prevents altering any settings by mistake.
Specifications
8 Steel(TM) - Vital parts of the dishwasher made in stainless steel
Yes
No need to rinse the dishes thanks to Super Cleaning System(TM)
Yes
Automatic water-softener for better washing performance
No
Number of spray arms
3 pcs
Cleaning systems
Jet Spray(TM) - Extra dishwashing power for vases, bottles and baby bottles Wide Spray(TM) - Extra dishwashing power for pots and pans Cutlery Spray(TM) - Extra dishwashing power for the cutlery basket No need to rinse the dishes thanks to Super Cleaning System(TM) Aqua Level(TM) Sensor Stainless steel spray arms
Exterior handle
SZW tubular handle
Number of place settings
16 pcs
Number of racks
3
Top tray
Easy height adjustment With rack for knives and utens With rack for bowls and cups With telescopic rails Handle Removable
Upper rack type
Premium, fixed tines and foldable wine shelves
Upper basket system
Easy height adjustable with lever
Upper basket
Perfect ergonomy with easy sliding telescopic rails Standard knife stand Fixed glass support Fixed pin rows Right foldable wine shelf with utensil rack Foldable wine shelves to right Foldable wine shelves to left Handle with ASKO logo Handle Small distance between the basket threads - makes loading easy and prevents small items to fall through
Middle basket
Without middle basket
Lower rack type
Premium - Basket wiring in steel, fixed pin rows and removable cutlery basket
Lower rack
Cutlery basket Foldable/divisible rear pin row Handle with ASKO logo Handle Small distance between the basket threads - makes loading easy and prevents small items to fall through.
Automatic dosing system
No
Interior light
No
Possible to control via Wi-Fi
No
Type of display
LCD display
Status Light(TM) - Visual indication of dishwashing progress
No
Remaining time indication
Yes
Wash end indication
Sound signal
Language settings
Chinese simpified Chinese traditional Swedish Slovenian Russian Portuguese Polish Norwegian Dutch Latvian Lithuanian Japanese Italian Croatian French Finnish Estonian Spanish English German Danish
Programs
Sanitize Light wash Self cleaning Crystal glass Lower half Upper half Rinse and hold programme Plastic wash Time program ECO wash Standard
Delayed start
Possible to delay up to 24 hours
Options and modes
Intensive mode - The dishwasher uses more heat and water. The program time is extended Night mode - Lower noise level. The program time is extended. Speed mode - The program time is shortened. More energy is used. Green mode - Less energy and water is used. The program time is extended Time set Super Rinse(TM) - Two extra rinses Extra dry - Improves the drying result
From the front adjustable door spring
No
From front adjustable rear foot
Yes
Installation
Multi fit outlet hose Integrated anti-siphon - Prevents spontaneous in- and outlet of water and simplifies elevated installation Trim kit Steam protection strip
Sliding door
No
Possible to install elevated
Yes
Min. niche width
24 ''
Min. niche height
32 5/16 ''
Depth (incl. wall spacing)
22 1/16 ''
Height setting
1 15/16 ''
Adjustable kick plate
No
Aqua Safe(TM)
Anti Block(TM) - Self cleaning drain pump Light and sound alarm Maximum time for water intake Extra durable PEX inlet hose Stand-by water protecion - Leakage detection when machine is off Aqua Level(TM) Sensor - Ensures an optimized water level Aqua Detect(TM) - Instant recognition of any leakage in the motor compartment Detection of water leakage on the bottom plate Waterproof bottom plate Extra durable stainless steel container Sealing points outside container
Aqua Safe(TM) system
Yes
Child safety
Kid Safe(TM) - Lockable controls
Indication of low level of rinse-aid
Notification in display
Water connection
Hot&cold water
Adapter for water connection
No
Max. temperature of inflow water
140 (degree)F
Noise level (max)
42 dB(A)
Reference programme
1
Estimated yearly energy consumption
235 kWh
Energy consumption - normal program
1 kWh
Estimated annual water consumption
687.4 gal
Water consumption
3.2 gal
Power consumption in standby mode
0.49 W
Consumption in off mode
0.49 W
Plug type
USA
Connected load
1300 W
Voltage (V)
120 V
Number of phases
1
Fuse
15 A
Frequency
60 Hz
Required inlet water pressure psi
0,03-1
Net weight
93.7 lb
Width
24 ''
Height
32 11/16 ''
Depth
22 ''
Maximum product height
34 11/16 ''
Length of electrical cord
47 1/4 ''
Depth with door open
47 3/16 ''
Length inlet hose
64 3/16 ''
Length outlet hose
90 9/16 ''
Packaging width
25 3/16 ''
Packaging height
35 1/16 ''
Packaging depth
26 3/4 ''
Gross weight
101 lb
Product code
737064
EAN code
3838782508332
Noise level (max)
42 dB(A)
Number of place settings
16 pcs
Number of racks
3
Upper rack type
Premium, fixed tines and foldable wine shelves
Size
XL
Automatic dosing system
No
Installation
Built-in
Series
Style
Noise level (max)
42 dB(A)
Number of place settings
16 pcs
Number of racks
3
Upper rack type
Premium, fixed tines and foldable wine shelves
Size
XL
Automatic dosing system
No
Installation
Built-in
Series
Style
GTIN
03838782508332
EAN
3838782508332
