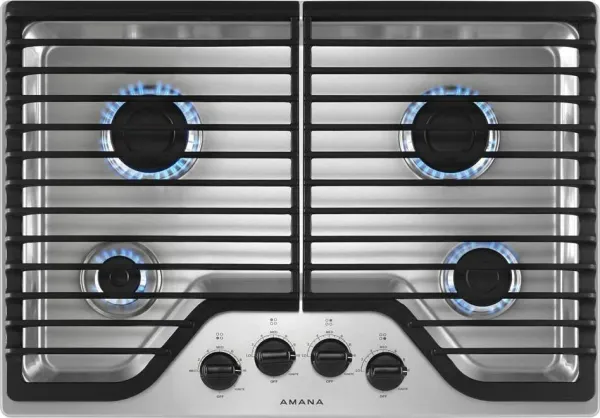

Amana 30" Gas Sealed Burner Drop-In Cooktop, 4 Elements in Stainless Steel

Name: Amana AGC6540KFS 30" Gas Sealed Burner Drop-In Cooktop, 4 Elements
Brand: Amana
SKU: AGC6540KFS
Availability: InStock

SKU: AGC6540KFS

0 Questions & 0 Answers

Fuel Type: Gas
Style: Sealed Burner
Width: 30.00"
Height: 4.13"
Depth: 21.00"
Wi-Fi Connected: No
Sabbath Mode: No
ADA Compliant: Yes
Ignition Type: ELECTRONIC
Weight: 34.00 lbs
Cooktop Type: Standard
Number of Burners: 4
Downdraft Ventilation: No
Burner Type: Sealed
Self-Clean: No
Convection: No
Hidden Bake Element: No
Proof Mode: No
Type: Drop-In

Authorized

Dealer

Pre-Order

color: Stainless Steel

30-Days Free Returns or Exchanges

PRODUCT DESCRIPTION

Get a seamless look with this 30-inch Amana(R) Gas Cooktop that installs over your Wall Oven. With 4 Burners providing up to 12,000 BTUs, you can melt, boil and simmer at the same time, and turn up the heat how you like with easily accessible Front Controls. Plus, cleaning is a breeze with Sealed Burners that keep spills from spreading.

certifications

3 items

Ada Compliant

ADA Height and Side and Front Reach Compliant

Prop65

Standard

Yes

controls

3 items

Control Location

Front

Control Type

Knobs

Infinite Heat Controls

Yes

cooktop details

8 items

Cooktop Surface Color

Color Coordinated

Cooktop Surface Material

Stainless/Porcelain Coated Steel

Digital Display

Griddle Included

Optional Accessory

Heating Element On Indicator Light

Hot Surface Indicator Light

Ignition Type

Direct Spark Ignition

Number of Open Bays

N/A

details

6 items

Automatic Pan Detection

Combinations With Oven

AWO6313; AWO6317

Fuel Type

Gas

Installs Over Built-in Oven

Yes

Lp Convertible

Yes - Kit Included

Power Outage Compatible

Yes

dimensions

14 items

Product Height

4.125

Carton Height

12.04

Gross Weight

Carton Width

34.76

Product Depth

21.0

Cutout Depth Max

Cutout Width Min

28.5

Cutout Depth

19.5

Carton Depth

Cutout Width

28.875

Cutout Depth Min

Cutout Width Max

29.313

Net Weight

Product Width

30.0

electrical

1 item

Power Cord Included

Yes

element/burner details

12 items

Cooktop Element Style

Sealed Burner

Cooktop Type

Standard

Left Front Element-burner Power

5,000 BTU

Left Front Element-burner Type

Simmer

Left Rear Element-burner Power

12,000 BTU

Left Rear Element-burner Type

SpeedHeat(TM)

Number of Cooking Element-burners

Power Boost

Right Front Element-burner Power

9,100 BTU

Right Front Element-burner Type

Sealed Burner

Right Rear Element-burner Power

12,000 BTU

Right Rear Element-burner Type

Sealed Burner

exterior details

2 items

Knob Color

Color Coordinated/Black on Stainless

Knob Type

Dishwasher-Safe Plastic

general

1 item

Combination Match With Oven

AWO6313; AWO6317

grate details

2 items

Grate Details

Cast Iron Grates; Continuous; Dishwasher Safe; Gloss Finish

Number of Grates

ventilation details

1 item

Downdraft Vent

GS1

3 items

GTIN

00883049401843

EAN

0883049401843

UPC

883049401843

Documents

Warranty

PDF

Owners Manual

PDF

Dimension Guide

PDF

Installation Instruction

PDF
