PRODUCT DESCRIPTION

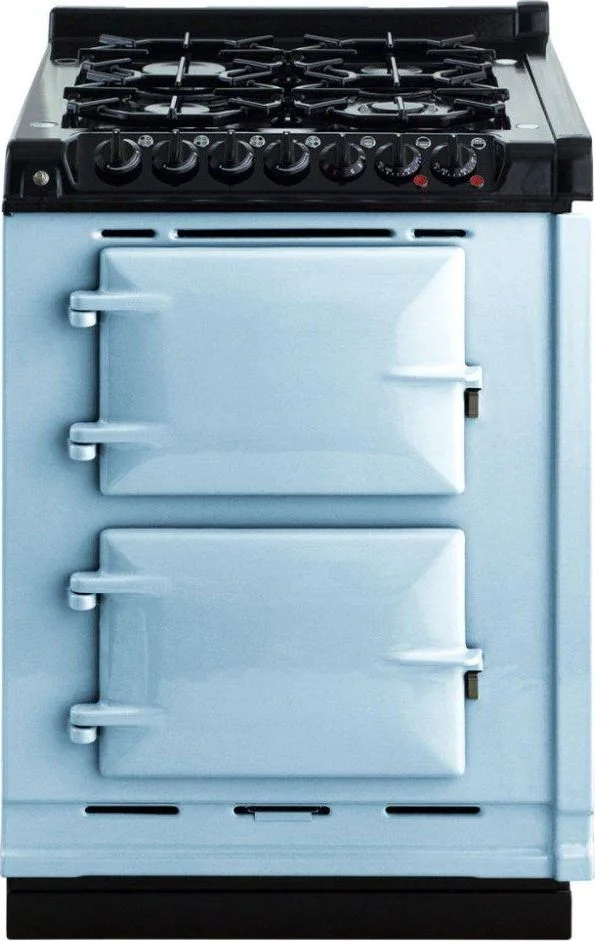

The AGA Integrated Dual Fuel Module is designed for those who love the many benefits of their cast iron AGA range and wish to incorporate the joys of open flame and conventional ovens. This integrated solution attaches to any 3-oven AGA Total Control or 3-oven AGA Dual Control. Want the Ultimate AGA? Attach the Integrated Dual Fuel Module to any 5-oven AGA Total or Dual Control and create a 7-oven AGA cooking experience!
The Integrated Dual Fuel Module gives you even more choice and flexibility. Working alongside, but independently to your 3-oven AGA range, it gives you the option of a conventional and a convection oven along with four gas top burners. The Gas Top Burners are available in natural gas and liquid propane.
The ideal cooking companion for your cast iron AGA range, the Integrated Module fits neatly at its left-hand side.
Color options to match your existing AGA range are also available. Please note, minor color changes may occur on your cast iron range due to its unique heat properties so there may be slight coloration differences.
Specifications
AGA Integrated Gas Top Module
Width
23 5/8"
Height
35 7/8"
Depth
24 1/2"
Weight
284lbs
Shipping Weight
393 lbs
Gas Range Top
(4) 10" x 10" Burners
Conventional Oven with Broiler
8 1/2"H x 13 3/4"W x 19"D
Convection Oven with Fan
10"H x 13 5/8"W x 17"D
Rapid Burner
11,000 Btu/hr
Semi Rapid Burner
6,150 Btu/hr
Wok Burner
12,000 Btu/hr
Electrical Requirements
240v, 40amp, 60Hz
Oven Capacity
4.9 cu. ft.
Fuel/Power
Natural Gas or Liquid Propane. Electric Convection Oven, Natural Gas/Liquid Propane Cooktop; LP conversion Kit included
Finish
Cast iron range is coated in hygienic, easy-to-clean vitreous enamel
Vent Options
Rangehood option available
Warranty
1 Year Limited Warranty on all parts and labor
Shipping Instruction
Ships fully assembled
