PRODUCT DESCRIPTION

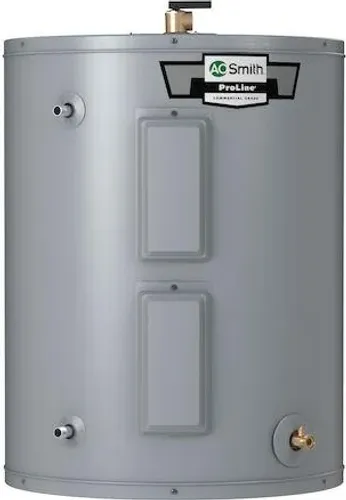

The ProLine(R) Lowboy Electric water heater with Top Water Connections is the reliable choice when you want to maximize hot water output and energy savings. With a 48-gallon (nominal) tank and dual 4,500 watt elements, the PNLB-50W delivers a first hour rating of 40 gallons at a highly efficient 0.91 Uniform Energy Factor rating. This model ships with a supplied insulation blanket. Environmentally-friendly insulation and factory-installed heat trap nipples reduce heat loss for maximum energy savings. This ProLine(R) water heater is designed with A. O. Smith's superior commercial-grade tank protection. Advanced tank features include stainless steel CoreGard(TM) anode rod, Blue Diamond(R) glass lining and DynaClean(TM) automatic sediment-cleaning system, all designed to help protect the tank from the corrosive effects of water and extend the life of the water heater. All of these features are accompanied by a 10-year limited tank warranty. A. O. Smith s ProLine(R) water heaters are residential products built to commercial-grade standards and are only available for purchase through professional wholesalers and contractors.
Specifications
Nominal Gallon Capacity
48 Gallons
Rated Storage Volume
44 Gallons
UEF
0.91
Power Source
ELECTRIC
Limited Tank Warranty
10 Years
Limited Parts Warranty
10 Years
Water Connection Location
TOP
Water Connection Size
0.75"
First Hour Rating
40 Gallons
ASME Certified
No
Blanket Included
Yes
Destination Country
US
Height to T&P
25.00
Installation Type
INDOOR
Max Wattage
3,000
Number of Elements
2
Application
COMMERCIAL
Product Tier
ProLine(R)
Shipping Height
37.75"
Shipping Length
33"
Shipping Width
27.5"
Side Loop
No
Voltage
208
Type
Water Heater
Height
34"
Diameter
26.5 in."
Width
26.5"
Shipping Weight
170lbs
