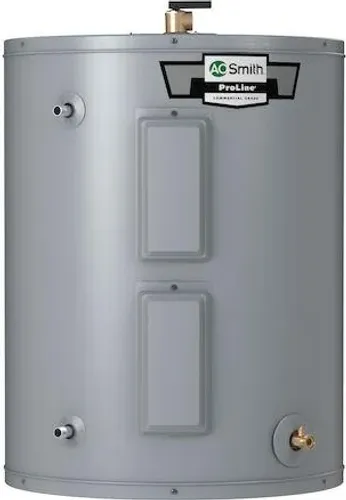

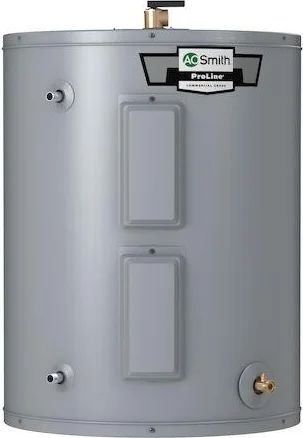

A. O. Smith ProLine(R) 38-Gallon Lowboy Top Connect Electric Water Heater

SKU: PNLB40
  • Depth: 23.00"
  • Energy Star Rated: no
  • Height: 32.00"
  • Width: 23.00"
A. O. Smith | Authorized Dealer
Pre-Order

PRODUCT DESCRIPTION


 •Delivers 47-gallon first hour rating
 •Dual 4,500-watt commercial-grade heating elements deliver reliable and efficient hot water
 •Long-lasting lower Incoloy(TM) stainless steel element
 •Lowboy design with top connections ideal for spaces with low height clearance
 •Patented Blue Diamond(R) glass tank lining protects against corrosion
 •DynaClean(TM) automatic cleaning system protects against sediment build-up
 •Stainless steel CoreGard(TM) anode rod protects against corrosion longer than ordinary anodes
 •Commercial-grade brass drain valve for durable and easy operation
 •CSA Certified and ASME Rated T&P Relief Valve, Factory-Installed
 •10-year limited tank and parts warranty

The ProLine(R) Lowboy Electric water heater with Top Water Connections is the reliable choice when you want to maximize hot water output and energy savings. With a 40-gallon (nominal) tank and dual 4,500 watt elements, the PNLB-40 delivers a first hour rating of 51 gallons at a highly efficient 0.95 Uniform Energy Factor rating. This model ships with a supplied insulation blanket. Environmentally-friendly insulation and factory-installed heat trap nipples reduce heat loss for maximum energy savings. This ProLine(R) water heater is designed with A. O. Smith's superior commercial-grade tank protection. Advanced tank features include stainless steel CoreGard(TM) anode rod, Blue Diamond(R) glass lining and DynaClean(TM) automatic sediment-cleaning system, all designed to help protect the tank from the corrosive effects of water and extend the life of the water heater. All of these features are accompanied by a 10-year limited tank warranty. A. O. Smith s ProLine(R) water heaters are residential products built to commercial-grade standards and are only available for purchase through professional wholesalers and contractors.

Specifications

Nominal Gallon Capacity

38 Gallons

Rated Storage Volume

35 Gallons

UEF

0.93

Power Source

ELECTRIC

Limited Tank Warranty

10 Years

Limited Parts Warranty

10 Years

Water Connection Location

TOP

Water Connection Size

0.75"

First Hour Rating

47 Gallons

ASME Certified

No

Blanket Included

Yes

Destination Country

US

Height to T&P

24.00

Installation Type

INDOOR

Max Wattage

4,500

Number of Elements

2

Application

COMMERCIAL

Product Tier

ProLine(R)

Shipping Height

35.69"

Shipping Length

27"

Shipping Width

24"

Side Loop

No

Voltage

240

Type

Water Heater

Height

32"

Diameter

23 in."

Width

23"

Shipping Weight

124lbs
