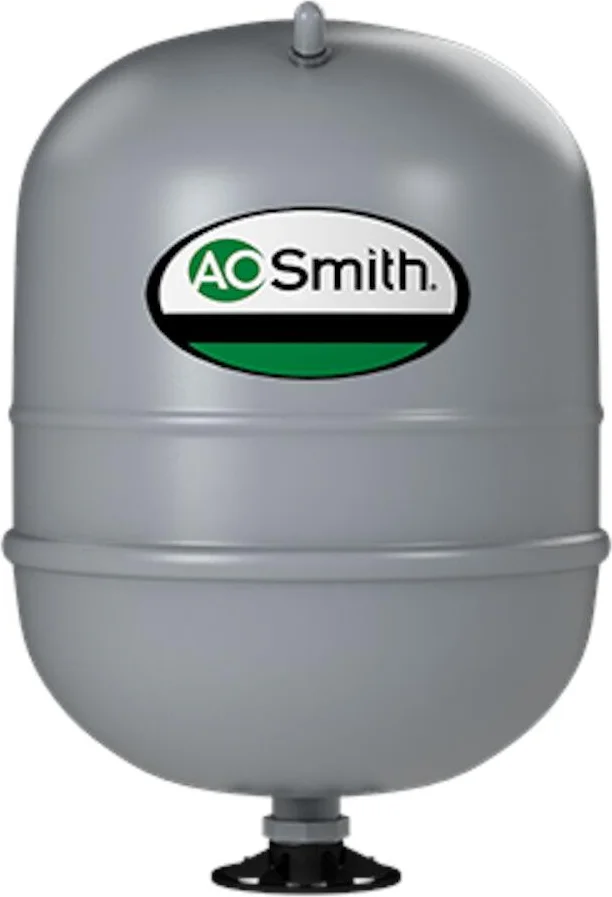

A. O. Smith 7-Gallon Hydronic Expansion Tank

Name: A. O. Smith PMET7 7-Gallon Hydronic Expansion Tank
Brand: A. O. Smith
SKU: PMET7
Availability: InStock
Rating: 3.0 (14 reviews)

SKU: PMET7

0 Questions & 0 Answers

Width: 11.13"
Height: 23.88"
Energy Star Rated: no

A. O. Smith | Authorized Dealer

Pre-Order

Call to Get a Quote

PRODUCT DESCRIPTION

•Interior powder coating is permanently bonded to the tank shell for ultimate protection on the water side of the water heater expansion tank
•Heavy duty butyl rubber diaphragm ensures long life
•Maximum working pressure 100 PSI
•Positive lock retention system controls compression in the diaphragm connection, eliminating air loss or water leaks in hot water expansion tank
•Corrosion-resistant metal air valve
•1-year limited warranty

A. O. Smith offers potable & hydronic expansion tank models, ranging from 2 to 14 gallons.

Specifications

Nominal Gallon Capacity

7 Gallons

Rated Storage Volume

7.3 Gallons

Power Source

HYDRONIC EXPANSION

Limited Tank Warranty

1 Years

Limited Parts Warranty

0 Years

Water Connection Location

BOTTOM

Water Connection Size

0.5"

ASME Certified

Destination Country

Expansion Tank Application

Hydronic

Installation Type

INDOOR

Application

Shipping Height

23.875"

Shipping Length

11.125"

Shipping Width

11.125"

Side Loop

Type

Expansion Tank

Height

23.875"

Width

11.125"

Shipping Weight

16lbs

Documents

Manual - Hydronic Expansion Tank manual (205778)

PDF

Spec Sheet - Hydronic Expansion Tank Spec Sheet (AOSEB55100)

PDF
