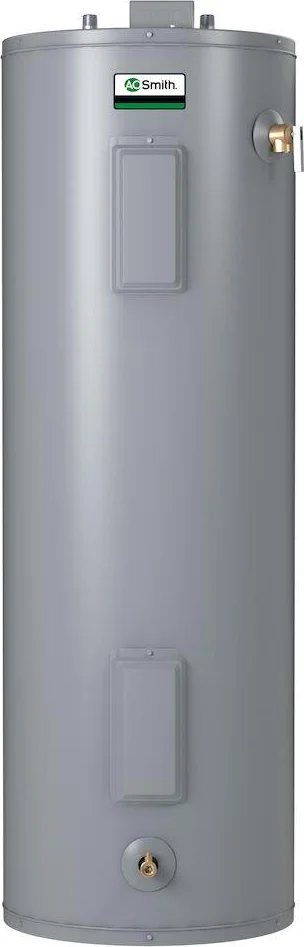

A. O. Smith 80-Gallon Light-Service Commercial Electric Water Heater

SKU: LTE80
  • Width: 24.00"
  • Height: 60.50"
  • Depth: 24.00"
  • Energy Star Rated: no
A. O. Smith | Authorized Dealer
Pre-Order

PRODUCT DESCRIPTION


 •Designed for light duty commercial applications
 •Dual 6100-watt zinc plated copper sheathed elements
 •Thermostat is adjustable through a range of 120 to 181 F with a manual reset high temperature cutoff
 •CoreGard(TM) anode rods with stainless steel core provide additional corrosion protection
 •Enhanced-flow commercial-grade brass drain valve designed for durability, ease of maintenance & operation
 •Meets the standby loss requirements of the U.S. Department of Energy and current edition of ASHRAE/IES 90.1
 •6-year limited tank and 1-year limited parts warranty

A. O. Smith's Light-Service commercial electric water heaters are designed for light duty commercial applications with intermittent hot water loads. A. O. Smith offers the largest commercial product selection available, including the most specified commercial unit in the U.S. We offer more than 500 different commercial models, including gas fired, oil-fired and electric configurations, ranging in capacities from 5 to 10,000 gallons, with input range from 50,000 BTU to the equivalent of 4,000,000 BTU. Our comprehensive line is the natural fit for spec jobs requiring everything from the smallest commercial installation up to the largest multi-structure complex.

Specifications

Nominal Gallon Capacity

80 Gallons

Rated Storage Volume

72 Gallons

Thermal Efficiency

98%

Power Source

ELECTRIC

Limited Tank Warranty

6 Years

Limited Parts Warranty

1 Years

T&P Relief Valve

Yes

Water Connection Location

TOP

Water Connection Size

0.75"

ASME Certified

No

Amperes

44.04

Blanket Included

No

Destination Country

US

Height to T&P

52.25

Installation Type

INDOOR

Max Wattage

12,200

Number of Elements

2

Application

COMMERCIAL

Shipping Height

64.38"

Shipping Length

28.25"

Shipping Width

25.13"

Side Loop

No

Voltage

277

Type

Water Heater

Height

60.5"

Diameter

24 in."

Width

24"

Shipping Weight

174lbs
