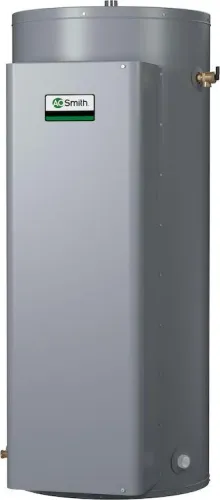

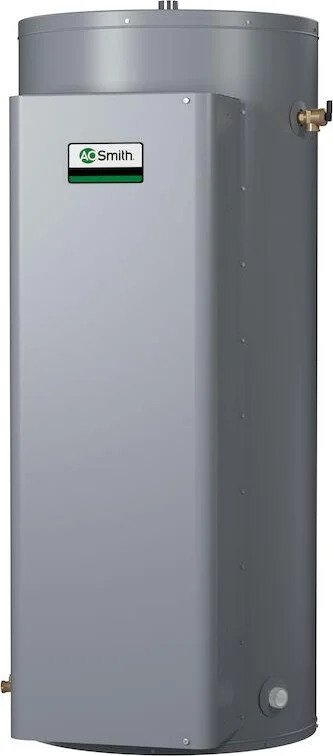

A. O. Smith Gold(TM) Series 119 Gallon Commercial Electric Water Heater

SKU: DRE120
  • Width: 29.50"
  • Height: 62.25"
  • Depth: 29.50"
  • Energy Star Rated: no
A. O. Smith | Authorized Dealer
Pre-Order

PRODUCT DESCRIPTION


 •Designed for use as a recovery water heater
 •Meets ASHRAE/IES 90.1-2004
 •Heavy-duty incoloy sheathing elements provide excellent protection against oxidation and scaling
 •Fusing protects all elements, thermostats, and internal wiring circuits against excess current flow
 •Factory installed terminal block for ease of installation
 •Temperature controls located behind hinged control compartment door for quick, easy access.
 •Dual commercial-grade anode rods for maximum corrosion protection
 •Simplified circuitry, color coded for ease of service
 •3-year limited tank and 1-year limited parts warranty

Gold DRE series available with 50, 80, and 119 gallon storage tanks, with input choices ranging from 12.2 kW to 54 kW.
A. O. Smith offers the largest commercial product selection available, including the most specified commercial unit in the U.S. We offer more than 500 different commercial models, including gas fired, oil-fired and electric configurations, ranging in capacities from 5 to 10,000 gallons, with input range from 50,000 BTU to the equivalent of 4,000,000 BTU. Our comprehensive line is the natural fit for spec jobs requiring everything from the smallest commercial installation up to the largest multi-structure complex.

Specifications

Nominal Gallon Capacity

119 Gallons

Rated Storage Volume

108 Gallons

Thermal Efficiency

98%

Power Source

ELECTRIC

Limited Tank Warranty

3 Years

Limited Parts Warranty

1 Years

T&P Relief Valve

Yes

Water Connection Size

0.75"

ASME Certified

No

Blanket Included

No

Destination Country

US

Digital Display

true

Height to T&P

54.65

Installation Type

INDOOR

Max Wattage

18,000

Number of Elements

6

Application

COMMERCIAL

Shipping Height

70.5"

Shipping Length

38.25"

Shipping Width

32.5"

Side Loop

No

Voltage

208

Type

Water Heater

Height

62.25"

Diameter

29.5 in."

Width

29.5"

Shipping Weight

426lbs
