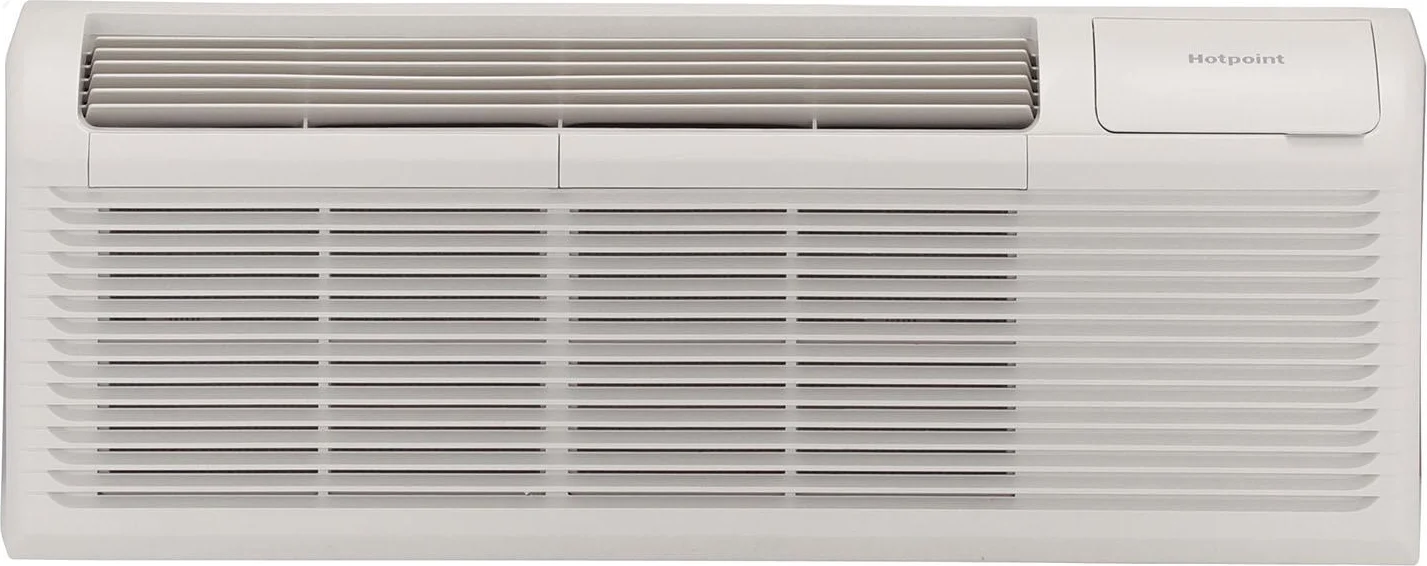

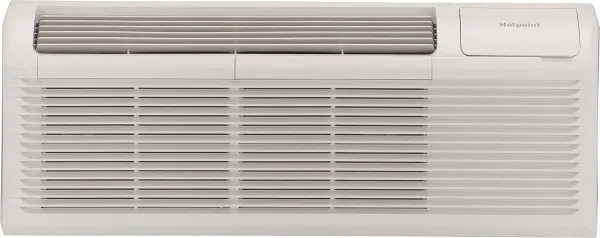

HOTPOINT AH12H15D5B | PTAC Heat Pump Unit with Electric Heat Backup 15,000 BTU, 230/208V, 30amp

Name: Hotpoint AH12H15D5B PTAC Heat Pump Unit with Electric Heat Backup 15,000 BTU, 230/208V, 30amp
Brand: Hotpoint
SKU: AH12H15D5B
Price: 981.00 USD
Availability: InStock
Rating: 3.0 (14 reviews)

PRODUCT DESCRIPTION

3-speed fan
Give guests control over their comfort with three fan speeds to choose from
4-temperature limiting options
Easily select one of four temperature ranges for peak efficiency and total customer comfort
Freeze and frost protection
Automatic freeze and indoor frost control keep units operating in peak condition
Auto power recovery
In case of power failures, units automatically resume their operation when power restores, reducing maintenance calls
Self diagnostics
Quickly and easily identify service needs with a nine-point diagnostic code system
Automatic emergency heat
Keep guests comfortable with a heating option that uses electric resistance heat in heat pump mode
Backed by an industry leader
With a long history of creating durable products at an affordable price, Hotpoint is your trusted PTAC brand
Limited 1-year parts and labor entire appliance warranty / limited 5-year refrigerating system warranty
Enjoy peace of mind knowing that all purchases are backed by the trusted Hotpoint service network
Intuitive display
Allow guests to easily customize their preferred settings and reduce maintenance calls with an easy-to-use control panel
Power cord (LCDI) included
Hotpoint PTACs come with everything needed for a quick and easy installation
Remote thermostat compatibility
Works with central desk control systems
Tangential fan for air flow and smooth sound
Removable filters for easy maintenance

Features

Removable filters for easy maintenance

3-speed fan

Give guests control over their comfort with three fan speeds to choose from

Intuitive display

Allow guests to easily customize their preferred settings and reduce maintenance calls with an easy-to-use control panel

Specifications

Cooling BTUH (MAX)

14700 Btu

CFM Indoor Fan Low

311

CFM Indoor Fan Medium

344

CFM Indoor Fan High

373

Cooling EER (BTUH / Watt)

9.7

Heating - Reverse Cycle - BTUH

13500/13200

Cooling BTUH (MIN)

14500 Btu

Installation

Through-the-Wall

Color Appearance

White

Warranty Notes

See written warranty for full details

Labor Warranty

Limited 1-year entire appliance Limited 5-year sealed refrigerating system

Parts Warranty

Limited 1-year entire appliance Limited 5-year sealed refrigerating system

Heating - Reverse Cycle - Watts

1315/1285

Cooling - Amperes

6.03/6.58

Cooling - Watts

1515/1490

Heating - Reverse Cycle - Amps

5.38/5.82

Voltage (MIN)

208 V

Heating - Electric - Heater Watts

5035/4124

Voltage (MAX)

230 V

Heating - Electric - Heater Amps

22.0/19.7

Overall Width

42.4 in

Approximate Shipping Weight

126.5 lb

Overall Height

16 in

Overall Depth

20.9 in

Net Weight

116.8 lb

Control Type

Electronic

Fan Speed Selections

3 Cooling 3 Fan Only 3 Heating

Discharge Grille

2-position

Product Type

Packaged Terminal Air Conditioners (PTAC)

Refrigerant Type

R32

Manual Vent Control

Hidden

"SmartFan" Fan Cycle

Yes

Chassis Type

Slide-In

Fan Motor

2

Heat Pump

Yes

Unit Features

Auto Power Recovery Automatic Emergency Heat Automatic Indoor Frost Control Central Desk Control Compatibility Freeze Sentinel Heat Pump with Resistance Heat Backup Power Cord (LCDI) included Remote Thermostat Compatibility

Temperature Range

62 - 80 F

Heat - Cool

Yes

Auto Power Recovery

Yes

Rotary Compressor

Yes

Heating - Reverse Cycle - COP

3.0

Outdoor Vent / Exhaust

Yes

Venting Features

Concealed Manual Vent Control Vent Air Filter

Heating System

Heat Pump with Resistance Backup

Documents

Quick Specs

PDF

Use and Care Manual

PDF

Quick Reference Guide

PDF

Installation Instructions

PDF
