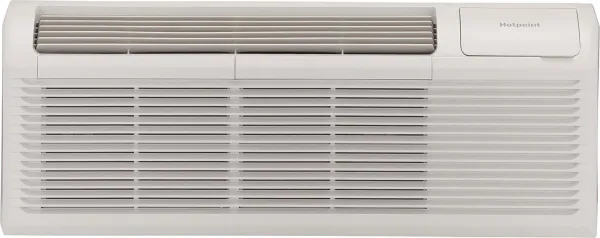

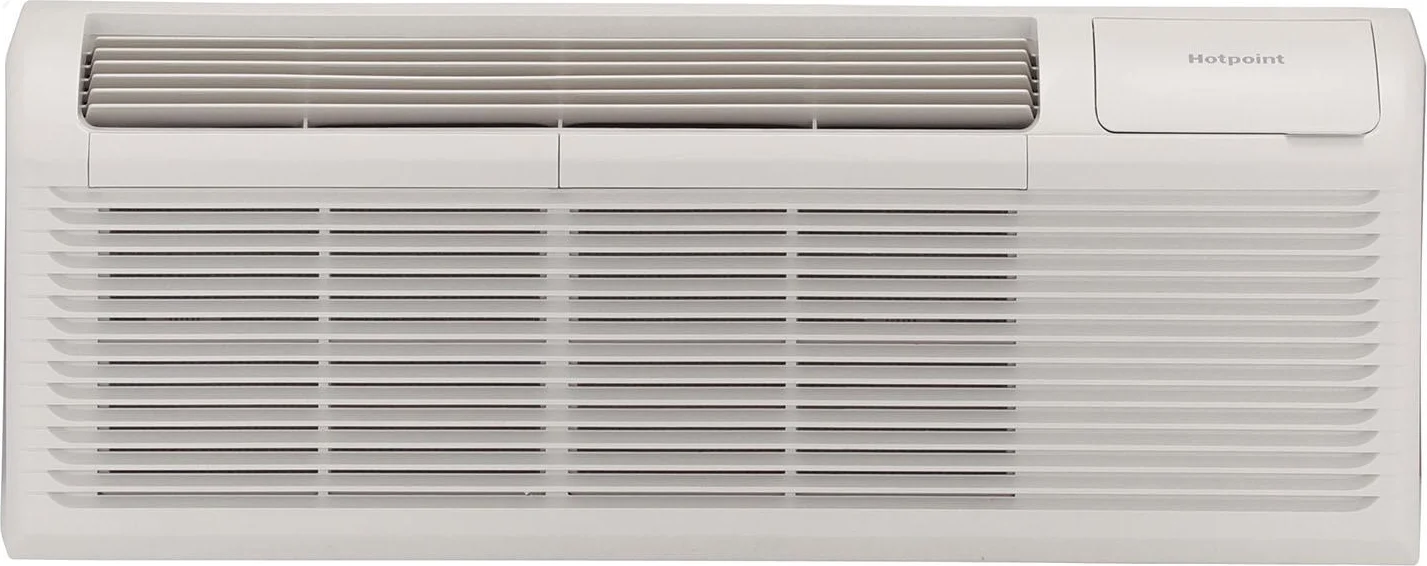

HOTPOINT AH12H09D3B | PTAC Heat Pump 9,000 BTU, 230/208V, 20amp

Name: Hotpoint AH12H09D3B PTAC Heat Pump 9,000 BTU, 230/208V, 20amp
Brand: Hotpoint
SKU: AH12H09D3B
Price: 762.00 USD
Availability: InStock
Rating: 3.0 (14 reviews)

PRODUCT DESCRIPTION

3-speed fan
Give guests control over their comfort with three fan speeds to choose from
4-temperature limiting options
Easily select one of four temperature ranges for peak efficiency and total customer comfort
Freeze and frost protection
Automatic freeze and indoor frost control keep units operating in peak condition
Auto power recovery
In case of power failures, units automatically resume their operation when power restores, reducing maintenance calls
Self diagnostics
Quickly and easily identify service needs with a nine-point diagnostic code system
Automatic emergency heat
Keep guests comfortable with a heating option that uses electric resistance heat in heat pump mode
Backed by an industry leader
With a long history of creating durable products at an affordable price, Hotpoint is your trusted PTAC brand
Limited 1-year parts and labor entire appliance warranty / limited 5-year refrigerating system warranty
Enjoy peace of mind knowing that all purchases are backed by the trusted Hotpoint service network
Intuitive display
Allow guests to easily customize their preferred settings and reduce maintenance calls with an easy-to-use control panel
Power cord (LCDI) included
Hotpoint PTACs come with everything needed for a quick and easy installation
Remote thermostat compatibility
Works with central desk control systems
Tangential fan for air flow and smooth sound
Removable filters for easy maintenance

Features

Removable filters for easy maintenance

Intuitive display

Allow guests to easily customize their preferred settings and reduce maintenance calls with an easy-to-use control panel

3-speed fan

Give guests control over their comfort with three fan speeds to choose from

Specifications

Cooling BTUH (MAX)

9000 Btu

CFM Indoor Fan Low

332

CFM Indoor Fan Medium

385

CFM Indoor Fan High

431

Cooling EER (BTUH / Watt)

11.4

Heating - Reverse Cycle - BTUH

8100/7900

Cooling BTUH (MIN)

8800 Btu

Installation

Through-the-Wall

Color Appearance

White

Warranty Notes

See written warranty for full details

Labor Warranty

Limited 1-year entire appliance Limited 5-year sealed refrigerating system

Parts Warranty

Limited 1-year entire appliance Limited 5-year sealed refrigerating system

Heating - Reverse Cycle - Watts

695/680

Cooling - Amperes; F.L. - Cooling

3.5/3.8

Cooling - Amperes

3.46/3.75

Cooling - Watts

785/770

Heating - Reverse Cycle - Amps

3.04/3.28

Voltage (MIN)

208 V

Heating - Electric - Heater Watts

3535/2900

Voltage (MAX)

230 V

Heating - Electric - Heater Amps

15.3/13.7

Overall Width

42.4 in

Approximate Shipping Weight

112.9 lb

Overall Height

16 in

Overall Depth

20.9 in

Net Weight

102.5 lb

Control Type

Electronic

Discharge Grille

2-position

Fan Speed Selections

3 Cooling 3 Fan Only 3 Heating

Product Type

Packaged Terminal Air Conditioners (PTAC)

Refrigerant Type

R32

Manual Vent Control

Hidden

"SmartFan" Fan Cycle

Yes

Chassis Type

Slide-In

Fan Motor

Heat Pump

Yes

Unit Features

Auto Power Recovery Automatic Emergency Heat Automatic Indoor Frost Control Central Desk Control Compatibility Freeze Sentinel Heat Pump with Resistance Heat Backup Power Cord (LCDI) included Remote Thermostat Compatibility

Temperature Range

62 - 80 F

Heat - Cool

Yes

Auto Power Recovery

Yes

Rotary Compressor

Yes

Heating - Reverse Cycle - COP

3.4

Outdoor Vent / Exhaust

Yes

Venting Features

Concealed Manual Vent Control Vent Air Filter

Heating System

Heat Pump with Resistance Backup
