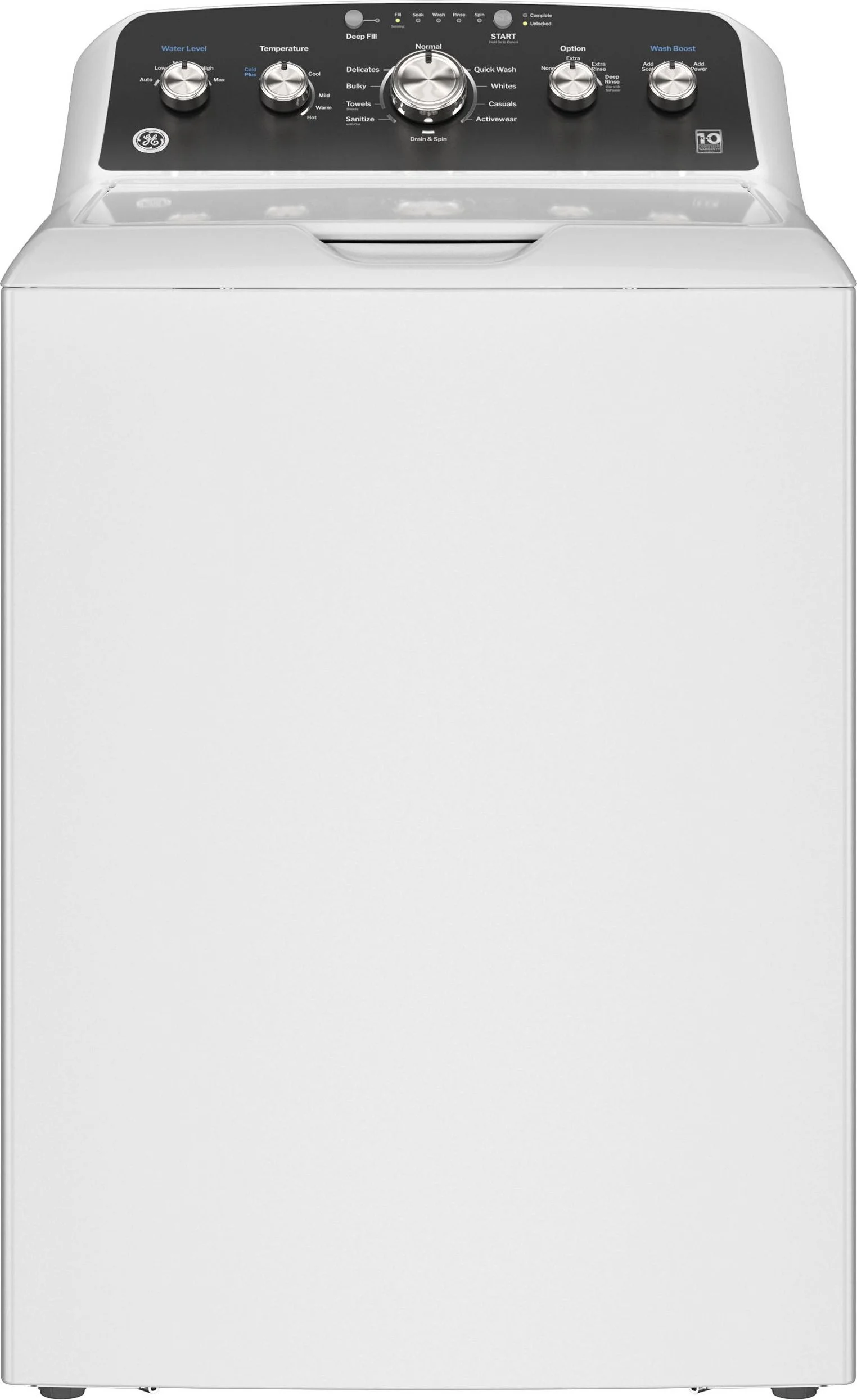

PRODUCT DESCRIPTION
Features
10-Year Limited Motor Warranty
Enjoy peace of mind for years to come with a washer warranty that backs the motor with a dependable 10-year limited warranty.
High Performance Impeller
This impeller washing machine has a low profile that provides more room for bulky items and easy access for unloading - all with the same great cleaning performance as an agitator.
Deep Rinse
Ensure that all your garments are free from detergent, fabric softener, stubborn soils and even pet hair in this deep rinse washing machine.
Wash Boost
Boost the wash performance of any cycle by adding an extra 15 minutes of soaking power for stubborn stains or more powerful agitation for heavily soiled items.
Stainless Steel Drum
Stainless steel basket ensures both your appliance and your clothes are protected from rust, chips, peeling or snags
Large 4.6 Cu.Ft. Capacity
Power through laundry day in less time than ever before with a large capacity washing machine that can easily handle big loads and bulky items.
Water Level Control
Manually add up to 26 gallons of water to your washer, or let the washer optimize with auto-fill for great cleaning results no matter the cycle selected.
Deep Fill
Press a single button on this deep fill washer to add an additional 3 gallons of water or press and hold the button to fill up to a full 26 gallons.
Late Lid Lock Safety
Pre-treat stains, infuse detergents or add in forgotten clothes without being locked out with the convenient Late Lid Lock Safety. When the water level is manually selected, the lid only locks during the final spin for safety.
Bleach Dispenser
Eliminate the need to add bleach mid-cycle with an automatic bleach dispenser in the washing machine.
Status Notification
Effortlessly monitor your wash cycle using the notification display that lights to indicate fill, soak, wash, rinse, or spin status at a glance.
Made in America
This American-Made washing machine contains 70 to 90% U.S. content.
Specifications
Wash Basket Type
Stainless Steel
Total Capacity (cubic feet)
4.6 cu ft
Door Style
Steel
Control Knobs
Chrome
Color Appearance
White w/ Black Matte Backsplash
Motor Speeds
Variable
Volts/Hertz
120V; 60Hz
Volts/Hertz/Amps
120V; 60Hz; 10A
Electrical Requirements
120V ; 60Hz ; 10A
Energy Consumption (kWh/year)
186
Hertz
60
Watts
1200
Parts Warranty
Limited 1-year entire appliance; limited 10-year motor
Warranty Notes
See written warranty for full details
Labor Warranty
Limited 1-year entire appliance
Fill Hose
WH14X10011 (sold separately)
Overall Height
44 in
Overall Width
27 in
Approximate Shipping Weight
155 lb
Overall Depth
27 in
Height Needed for Lid to Raise 90 Degrees
54
Net Weight
147 lb
Wash Mechanism
High Performance Impeller
Control Type
LED Rotary-Electronic
Water Levels
4 + Auto Auto, Low, Medium, High, Max
Washer Options/Settings
Cold Plus Deep Fill Deep Rinse Extra Rinse Extra Spin Wash Boost - Power Wash Boost - Soak
Additional Washer Features
Auto Balance Suspension System Leveling Legs
Washer Control Features
End-of-Cycle Signal LED Cycle Status Lights
Adaptive Capabilities
Auto
Washer Cycles
ActiveWear Bulky Casuals Delicates Drain & Spin Normal Quick Wash Sanitize w/ Oxi Towels / Sheets Whites
Product Type
Top Load
Dispenser
Bleach
Wash/Spin Speed Combinations
Variable
Maximum Spin Speed
800 RPM
Water Temp System
Cold Plus, Cold, Cool, Mild, Warm, Hot
Number of Cycles
10
Agitator Type
High Performance Impeller
WiFi Connect
Optional (Requires part no. PBX23W00Y1)
Wash/Rinse Temperatures
6
Style
Top-Loading
Large 4.6 Cu.Ft. Capacity
Wash Boost
High Performance Impeller
Water Level Control
10-Year Limited Motor Warranty
Deep Fill
Deep Rinse
Stainless Steel Drum
Late Lid Lock Safety
Status Notification
Bleach Dispenser
Made in America
Fill Hose
WH14X10011 (sold separately)
GTIN
00084691943600
EAN
0084691943600
UPC
084691943600
Overall Height
44 in
Overall Width
27 in
Approximate Shipping Weight
155 lb
Overall Depth
27 in
Height Needed for Lid to Raise 90 Degrees
54
Net Weight
147 lb
