PRODUCT DESCRIPTION
Prevents expensive over-cooling or over-heating of the room
Easy to maintain and service
11,900 BTU
11.6 EER
3.7 pints/hour
10,500 BTU
3.6 COP
449/300
45
Baked-on mastic sound barrier, cross flow blower and two DC fan motors create less noise to ensure comfort
Extends life of the unit in sea coast areas/corrosive environments
Keeps the room from overheating or freezing
Provides supplemental resistance heat in heat pump mode
Features
Simplified structure
Easy to maintain and service
Quiet operation
Baked-on mastic sound barrier, cross flow blower and two DC fan motors create less noise to ensure comfort
Energy efficiency
11.6 EER
Specifications
Cooling BTUH (MIN)
11900.0 Btu
Cooling EER (BTUH / Watt)
11.6
CFM Indoor Fan High
410
CFM Indoor Fan Low
300
Dehumidification (pts./hr.)
3.7
Heating - Reverse Cycle - BTUH
10300
Vent CFM (high fan at zero ESP)
45
Control Type
Standard MicrocomputerTactile touch pad with LED Display
Corrosion Treated
Yes
Discharge Grille
2-position
Electronic Micro Computer Control
Yes
Fan Cycle Switch
Yes
Fan Motor
2
Fan Speed Control
Yes
Fan Speed Selections
Hi/Low CoolingHi/Low Fan OnlyHi/Low Heating
Filter Type
Rigid FrameSlide-Out
Heat - Cool
Yes
Louver Style
Reversible
Manual Vent Control
Hidden
Rotary Compressor
Yes
Temperature Limiting
Electronic 7-Step
Vent Control
3-position
Venting Features
Concealed Manual Vent ControlOutdoor Vent Control - 3 PositionsVent Air Filter
Zoneline Features

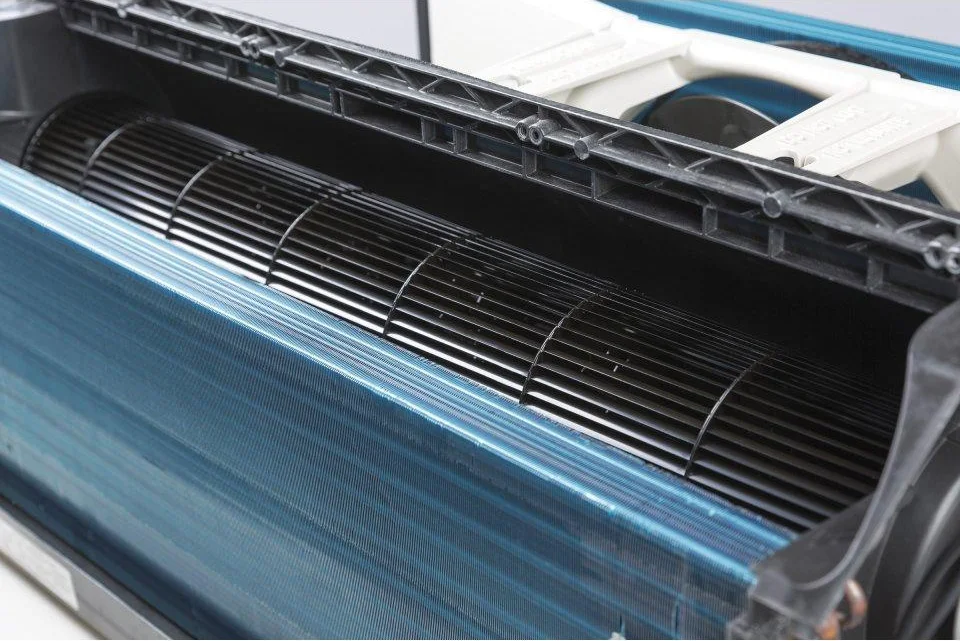

Heat SentinelPower Cord (LDCI) includedProportional - Integral ID AirflowQuick Heat RecoveryRandom Twist/Length Segment Tangential BlowerRemote Thermostat CompatibilityReverse Cycle DefrostUniversal HeatersWeather Protected Electrical Components3-Stage Heating DesignAuto Power RecoveryAutomatic Emergency HeatAutomatic Indoor Frost ControlCentral Desk Control CompatibilityFreeze SentinelHeat Pump with Resistance Heat BackupHeat Pump with Supplemental Resistance Heat
Heating System
Heat Pump
Product Type
Packaged Terminal Air Conditioners (PTAC)
Temperature Range
60 - 85 F
Sensible Heat Ratio
62%

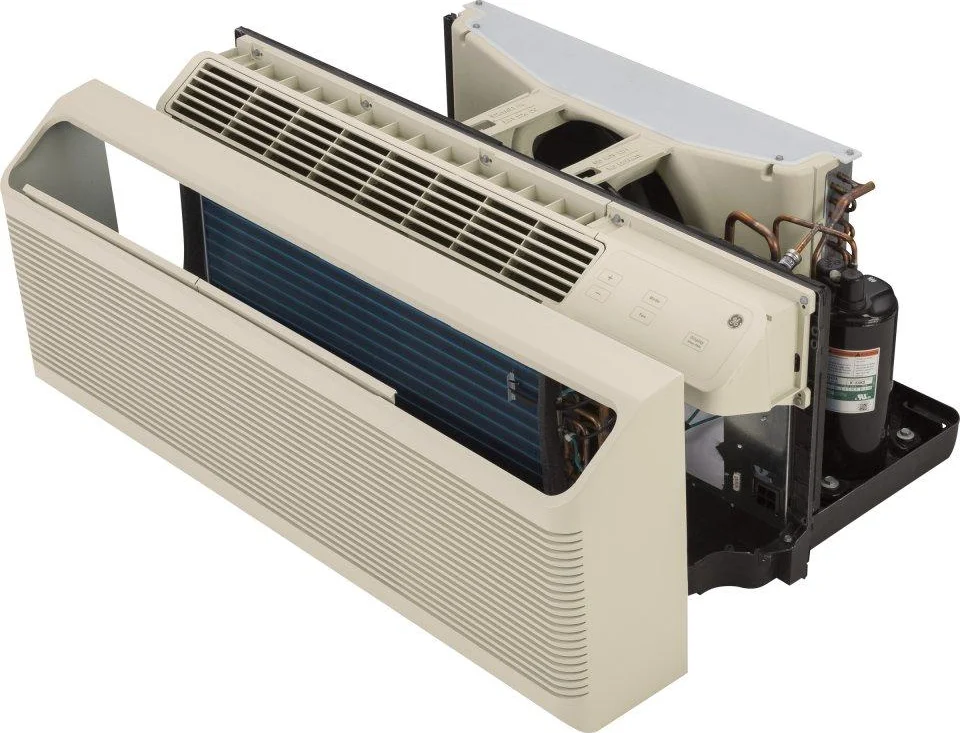

Chassis Type
Slide-In
Cooling - Amperes; F.L. - Cooling
4.0
Cooling - Amperes; L.R.
23.5
Cooling - Watts
1025
Heating - Reverse Cycle - Amps
3.5
Heating - Reverse Cycle - COP
3.6
Heating - Reverse Cycle - Watts
860
Power Factor
97
Voltage (MAX)
265.0 V
Parts Warranty
Limited 1-year entire applianceLimited 5-year sealed refrigerating system
Labor Warranty
Limited 1-year entire applianceLimited 5-year sealed refrigerating system
Warranty Notes
See written warranty for full details
Net Weight
110.0 lb
Overall Depth
20.8125 in
Overall Height
16.0 in
Overall Width
42.0 in
