PRODUCT DESCRIPTION
Easy to maintain and service
Delivers 25-50 CFM of continuous makeup air whenever the room is occupied
When paired with occupancy sensing hardware, ventilation can be halted during vacancy
Dehumidifies at a rate of 5-6 pints per 24 hours (based on CFM level)
Provides supplemental resistance heat in heat pump mode
Keeps the room from overheating or freezing
Prevents expensive over-cooling or over-heating of the room
Features

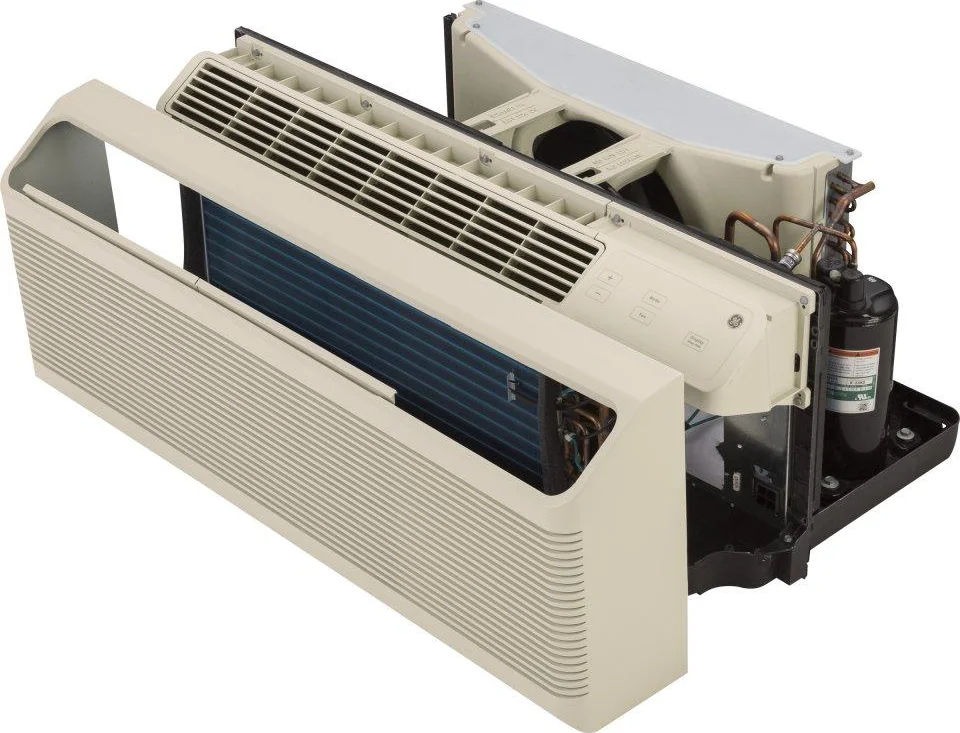

Simplified structure
Easy to maintain and service
Makeup air
Delivers 25-50 CFM of continuous makeup air whenever the room is occupied
Specifications
Cooling BTUH (MIN)
11400.0 Btu
Cooling BTUH (MAX)
11500.0 Btu
Cooling EER (BTUH / Watt)
11.2/11.2
CFM Indoor Fan High
449
CFM Indoor Fan Low
300
Dehumidification (pts./hr.)
3.4
Heating - Reverse Cycle - BTUH
10200/10000
Vent CFM (high fan at zero ESP)
25-50
Chassis Type
Slide-In
Control Type
Standard MicrocomputerTactile touch pad with LED Display
Discharge Grille
2-position
Electronic Micro Computer Control
Yes
Fan Cycle Switch
Yes
Fan Motor
2
Fan Speed Control
Yes
Fan Speed Selections
Hi/Low CoolingHi/Low Fan OnlyHi/Low Heating
Filter Type
Rigid FrameSlide-Out
Heat - Cool
Yes
Louver Style
Reversible
Rotary Compressor
Yes
Temperature Limiting
Electronic 7-Step
Zoneline Features
Heat SentinelPower Cord (LDCI) includedProportional - Integral ID AirflowQuick Heat RecoveryRandom Twist/Length Segment Tangential BlowerRemote Thermostat CompatibilityReverse Cycle DefrostUniversal HeatersWeather Protected Electrical Components3-Stage Heating DesignAuto Power RecoveryAutomatic Emergency HeatAutomatic Indoor Frost ControlCentral Desk Control CompatibilityFreeze SentinelHeat Pump with Resistance Heat BackupHeat Pump with Supplemental Resistance Heat
Heating System
Heat Pump
Product Type
Makeup Air Conditioners
Temperature Range
60 - 85 F
Sensible Heat Ratio
69%
Cooling - Amperes; F.L. - Cooling
5.8/6.2
Cooling - Amperes; L.R.
29.5
Cooling - Watts
1025/1015
Heating - Reverse Cycle - Amps
5.0/5.2
Heating - Reverse Cycle - COP
3.5/3.5
Heating - Reverse Cycle - Watts
850/835
Power Factor
97
Voltage (MIN)
208.0 V
Voltage (MAX)
230.0 V
Parts Warranty
Limited 1-year entire applianceLimited 5-year sealed refrigerating system
Labor Warranty
Limited 1-year entire applianceLimited 5-year sealed refrigerating system
Warranty Notes
See written warranty for full details
Net Weight
135.0 lb
Overall Depth
20.8125 in
Overall Height
16.0 in
Overall Width
42.0 in
