PRODUCT DESCRIPTION

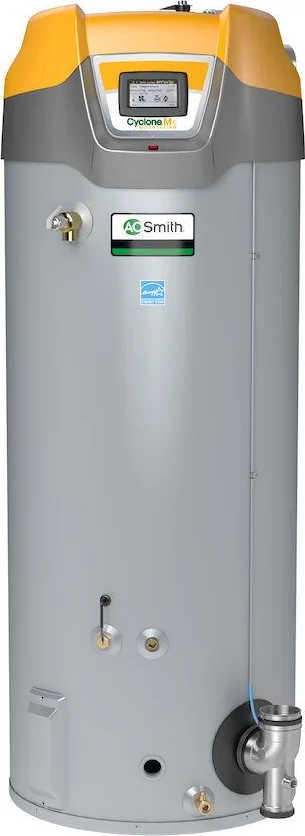

The full line of A. O. Smith Cyclone(R) Mxi condensing water heaters have been designed to provide years of dependable service and feature industry leading technology. Models are available from 120,000 to 500,000 Btu/h and all deliver thermal efficiencies of 95% and higher. The unique helical coil heat exchanger limits weld joints for optimal service life while maximizing heat transfer. Cyclone is the industry leader in high efficiency commercial water heating. The current Mxi modulating models adjust firing rate to the specific demand further increasing efficiency and money savings. BTH-199 uses up to 199,900 BTU/h of gas to deliver 235 GPH at 100(degree)F rise. A. O. Smith offers the largest commercial product selection available, including the most specified commercial unit in the U.S. We offer more than 500 different commercial models, including gas fired, oil-fired and electric configurations, ranging in capacities from 5 to 10,000 gallons, with input range from 50,000 BTU to the equivalent of 4,000,000 BTU. Our comprehensive line is the natural fit for spec jobs requiring everything from the smallest commercial installation up to the largest multi-structure complex.
Specifications
Nominal Gallon Capacity
100 Gallons
Rated Storage Volume
96 Gallons
Thermal Efficiency
97%
Maximum BTUs
199,900
Power Source
GAS
Limited Tank Warranty
3 Years
Limited Parts Warranty
1 Years
T&P Relief Valve
Yes
Water Connection Size
1.5"
ASME Certified
No
Amperes
5
Destination Country
US
Digital Display
true
ENERGY STAR(R) Certified
true
Fuel Source
NATURAL
Height to Gas Valve
75.50
Height to T&P
56.38
Installation Type
INDOOR
Minimum BTUs
78,000.00
Application
COMMERCIAL
Recovery Rise at 90(degree)F
261
Shipping Height
85.5"
Shipping Length
37.25"
Shipping Width
34.5"
Side Loop
No
Voltage
120
Type
Water Heater
Height
76.5"
Diameter
27.75 in."
Shipping Weight
550lbs
