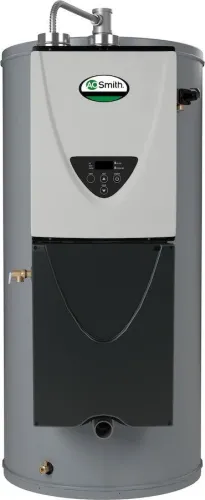

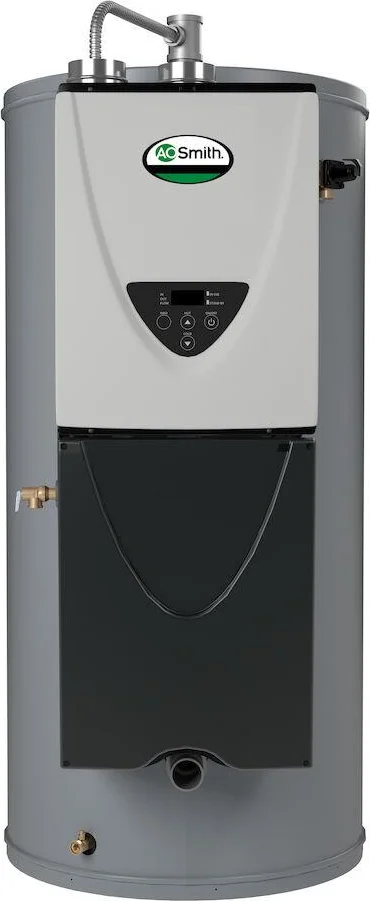

A. O. Smith TX1 Integrated Ultra-Low NOx Gas Tankless & 119-Gallon Storage Tank Commercial Water Heater

SKU: ATX199P
  • Height: 72.00"
  • Depth: 29.36"
  • Energy Star Rated: yes
A. O. Smith | Authorized Dealer
Pre-Order

PRODUCT DESCRIPTION


 •ENERGY STAR(R) certified
 •Delivers 232 GPH at 100(degree)F Rise
 •Integrated CT-199 condensing tankless with modulating burner delivers 96% thermal efficiency
 •Durable commercial-grade primary copper heat exchanger in CT-199 tankless is 25x better at heat transfer than stainless steel
 •CT-199 tankless includes econdary heat exchanger constructed of 316 grade stainless steel
 •Durable 119-gallon features commercial grade glass-lining, anode protection and heavy steel gauge jacket
 •Available for Natural Gas and Liquid Propane, for indoor use only
 •Integrated pumps and controls
 •Commercial-grade 4.1 GPM pump, advanced electronic controls and factory installed T&P and pressure relief valves
 •6-year limited warranty on heat exchanger in commercial applications / 5-year limited warranty on all parts

The TX1 condensing water heater combines tankless with a tank to deliver energy saving performance. Includes 119-gallon storage tank and integrated CT-199 condensing tankless. Includes integrated CT-199 condensing tankless and 119-gallon storage tank. TX-1 uses up to 199,000 BTU/h of LP gas to deliver 232 GPH at 100 rise. A. O. Smith offers the largest commercial product selection available, including the most specified commercial unit in the U.S. We offer more than 500 different commercial models, including gas fired, oil-fired and electric configurations, ranging in capacities from 5 to 10,000 gallons, with input range from 50,000 BTU to the equivalent of 4,000,000 BTU. Our comprehensive line is the natural fit for spec jobs requiring everything from the smallest commercial installation up to the largest multi-structure complex.

Specifications

Nominal Gallon Capacity

119 Gallons

Rated Storage Volume

115 Gallons

Thermal Efficiency

96%

Maximum BTUs

199,000

Power Source

GAS

Limited Tank Warranty

6 Years

Limited Parts Warranty

5 Years

T&P Relief Valve

Yes

Water Connection Size

2"

ASME Certified

No

Amperes

5

Destination Country

US

ENERGY STAR(R) Certified

true

Fuel Source

PROPANE

Height to Gas Valve

30.00

Height to T&P

58.70

Installation Type

INDOOR

Limited Heat Exchanger Warranty

6 Years

Minimum BTUs

13,000.00

Application

COMMERCIAL

Recovery Rise at 90(degree)F

257

Shipping Height

91.5"

Shipping Length

35"

Shipping Width

45"

Side Loop

No

Vent Material

Stainless Steel, polypropylene, PVC, CPVC

Voltage

120

Type

Water Heater

Height

72"

Diameter

29.36 in."

Shipping Weight

520lbs
